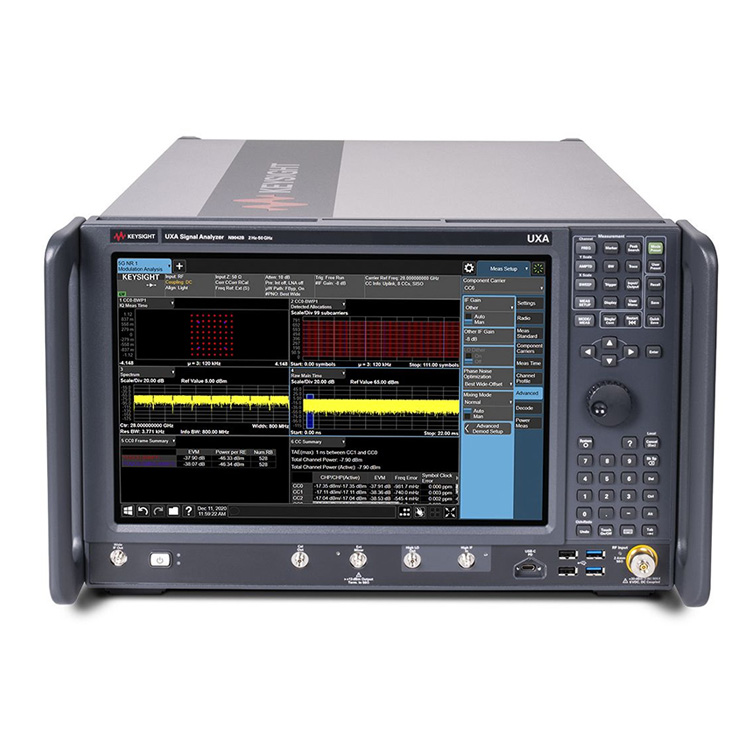

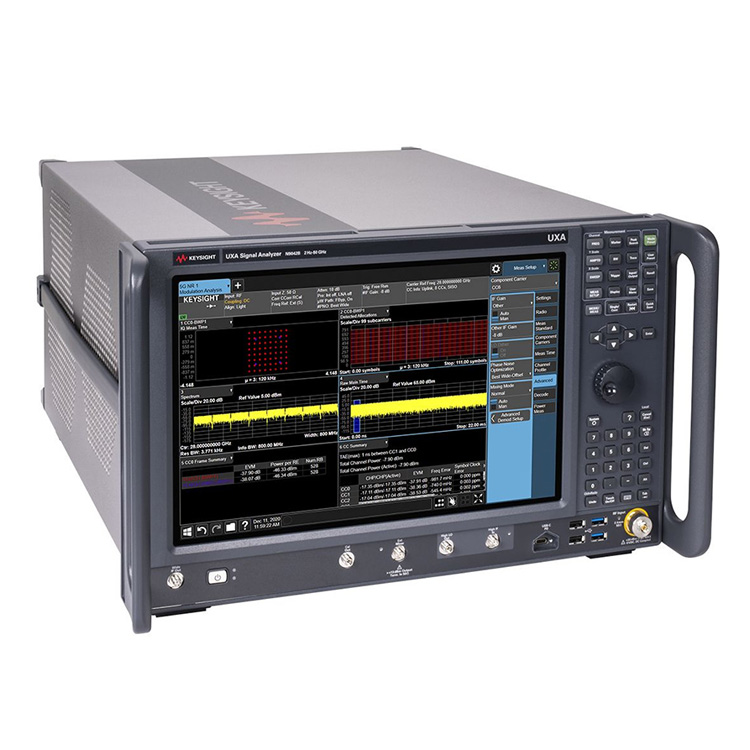

As the professional manufacturer, we would like to provide you N9042B X-Series Signal Analyzers. Find out-of-band emissions or spurs quickly in your radar designs with the industry's best swept displayed average noise level (DANL).
Test the real performance of your millimeter-wave (mmWave) innovations in 5G, satellite, radar, and more with our N9042B UXA X-Series signal analyzer and measurement applications. The N9042B provides the industry's widest analysis bandwidth and deepest dynamic range to help you solve your most difficult mmWave challenges — tight design margins and timelines, complex modulation, and stringent standards.
Ensure your designs meet the latest standards with ready-to-use measurement applications and signal analysis software
See signals clearly with an unbanded, preselected sweep from 2 Hz to 50 GHz and 4 GHz of analysis bandwidth
Test the true performance of your 5G NR transmitter with the industry's best error vector magnitude (EVM)
Find out-of-band emissions or spurs quickly in your radar designs with the industry's best swept displayed average noise level (DANL)
Develop high-throughput satellite communication designs with 4 GHz of corrected analysis bandwidth
| Bandwidth Options: |
1 GHz 1.5 GHz 2 GHz 4 GHz |
| DANL @1 GHz: | -174 dBm |
| Frequency: | 2 Hz to 50 GHz, with V3050A 110 GHz |
| Frequency Options: | 26.5, 44, 50 GHz, with V3050A 50 GHz to 67, 90, 110 GHz |
| Height: | 6U |
| Maximum Analysis Bandwidth: | 4 GHz |
| Maximum Frequency: | 50 GHz |
| Maximum Real-Time Bandwidth: | 2 GHz |
| Overall Amplitude Accuracy: | ± 0.24 dB |
| Performance Level: | ◆◆◆◆◆◆ |
| Phase Noise @1 GHz (10 kHz offset): | -135 dBc / Hz |
| Type: | Benchtop |
| TOI @1 GHz (3rd Order Intercept): | +22 dBm |
