You can rest assured to buy N9041B X-Series Signal Analyzers from our factory and we will offer you the best after-sale service and timely delivery. Capture lower-level spurious signals with DANL as low as -150 dBm/Hz (> 50 GHz).

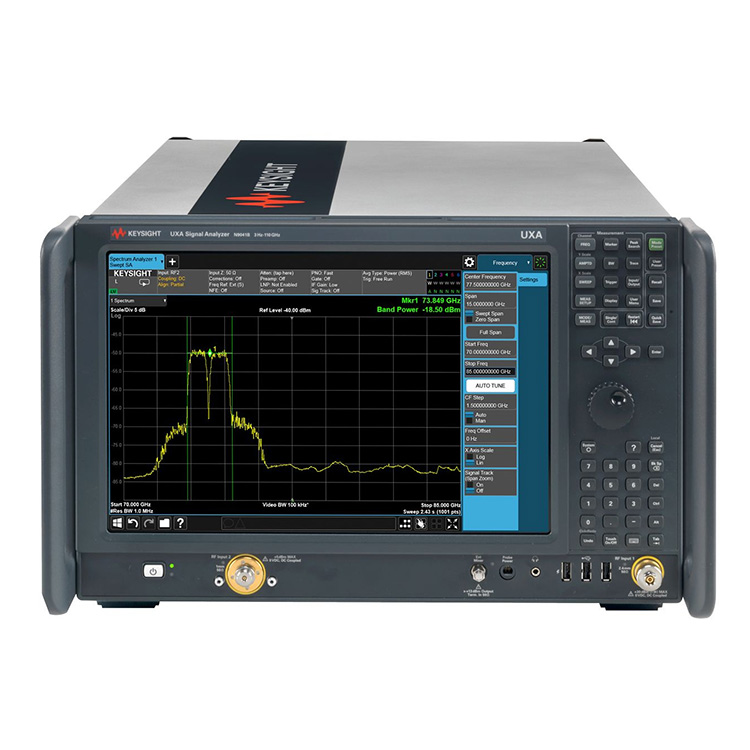

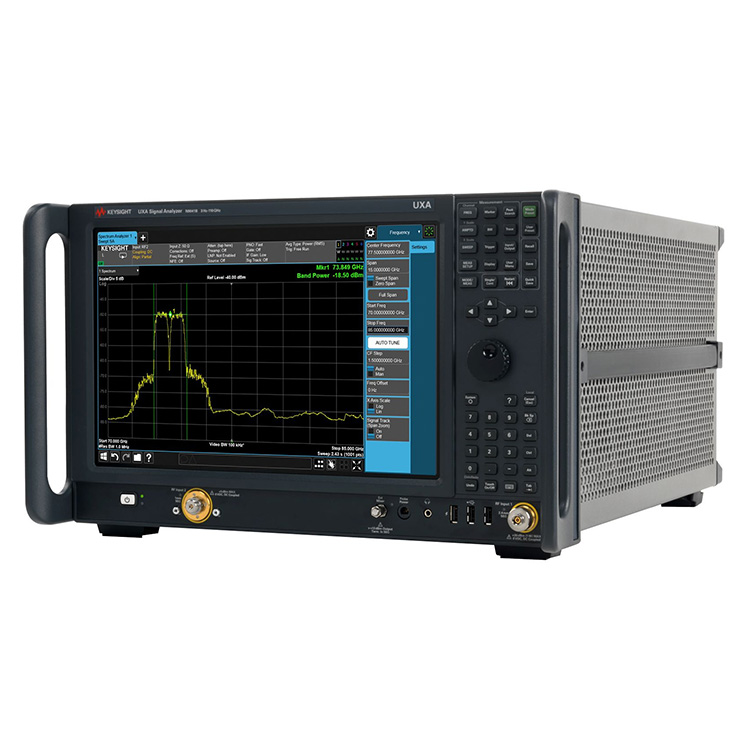

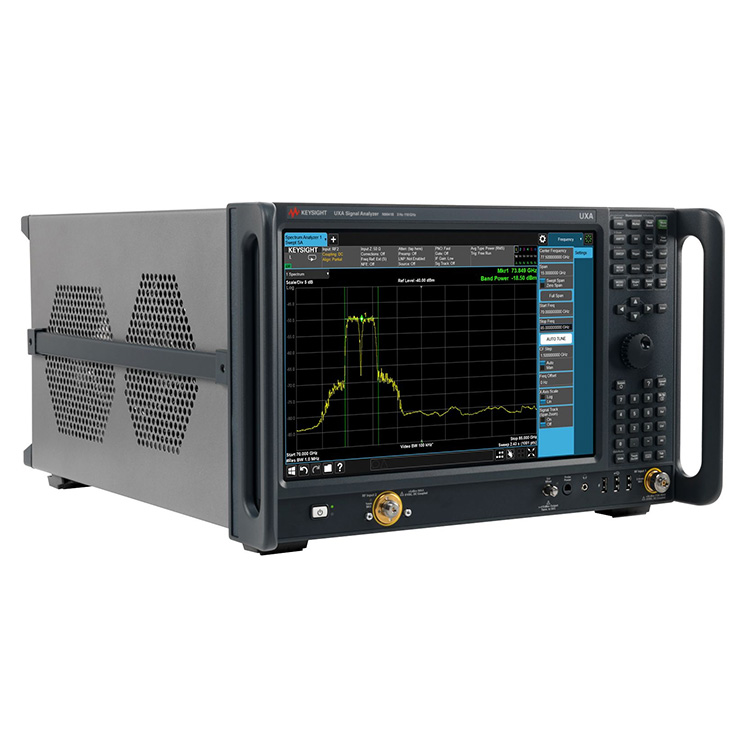

Deliver Your Next Breakthrough with our Most Advanced Signal Analysis Platform
The ultimate performance of our UXA signal analyzers lets you characterize today’s most challenging signals — fast-hopping, wideband, transient — in 5G, 802.11ax/ay, satellite, radar, electronic warfare (EW), and more. You’ll gain insight into the purity of your design with industry-leading phase noise and wide spurious-free dynamic range.
Analyze bandwidth-hungry emerging standards such as 5G and automotive radar with up to 1 GHz internal analysis bandwidth and up to 5 GHz external
Make continuous sweeps up to 110 GHz
Capture lower-level spurious signals with DANL as low as -150 dBm/Hz (> 50 GHz)
Record and analyze real-world environments with gap-free streaming up to 255 MHz
Compatible with X-Series application, enabling you to simplify complex measurements and deliver repeatable results
Add the real-time analysis option and detect signals as short as 3.51 µs
See more and take your design farther with the 14.1-inch screen
| Bandwidth Options: |
25 MHz 40 MHz 1 GHz |
| DANL @1 GHz: | -174 dBm |
| Frequency: | 2 Hz to 110 GHz |
| Frequency Options: | 90, 110 GHz |
| Height: | 6U |
| Maximum Analysis Bandwidth: | 1 GHz |
| Maximum Frequency: | 110 GHz |
| Maximum Real-Time Bandwidth: | 255 MHz |
| Overall Amplitude Accuracy: | ±0.16 dB |
| Performance Level: | ◆◆◆◆◆◆ |
| Phase Noise @1 GHz (10 kHz offset): | -135 dBc / Hz |
| Type: | Benchtop |
| TOI @1 GHz (3rd Order Intercept): | +22 dBm |
