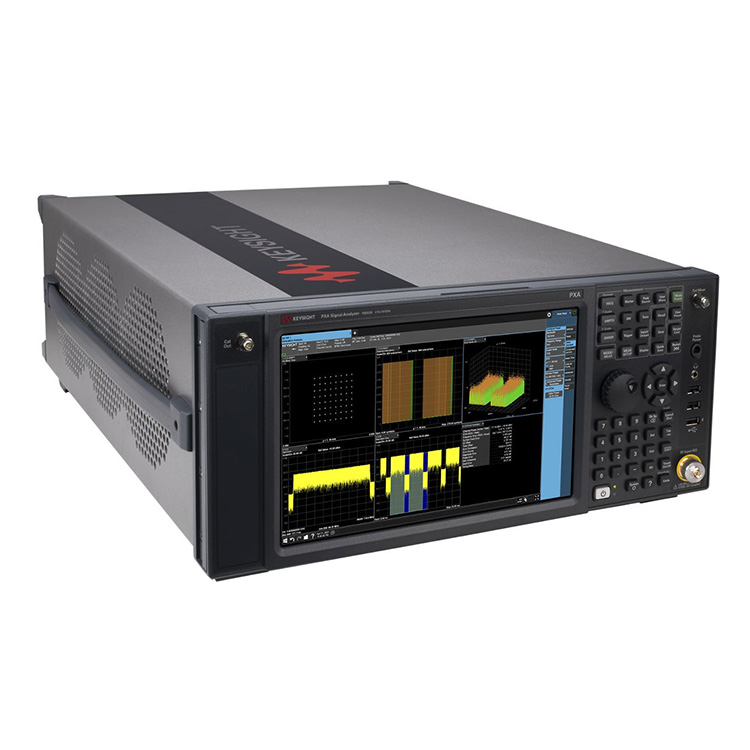

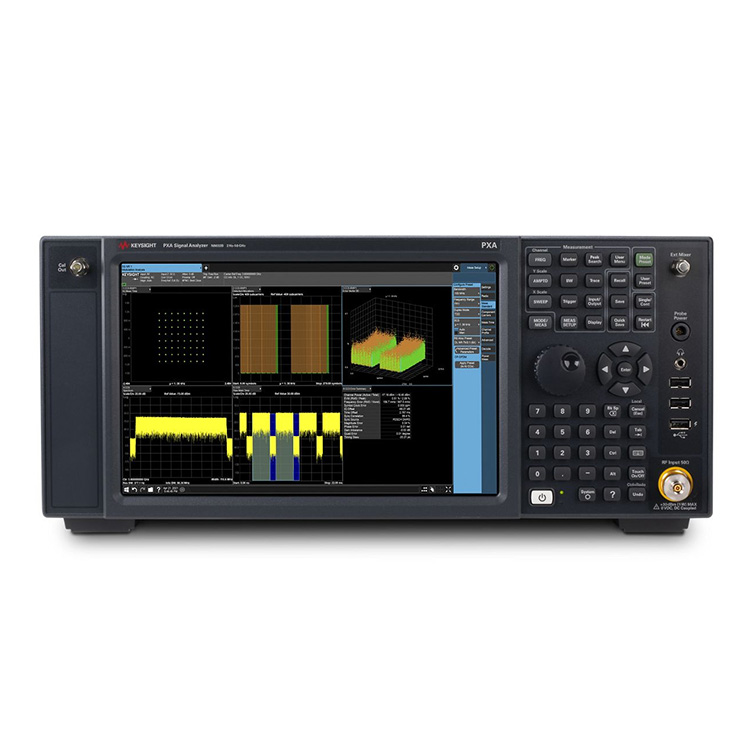

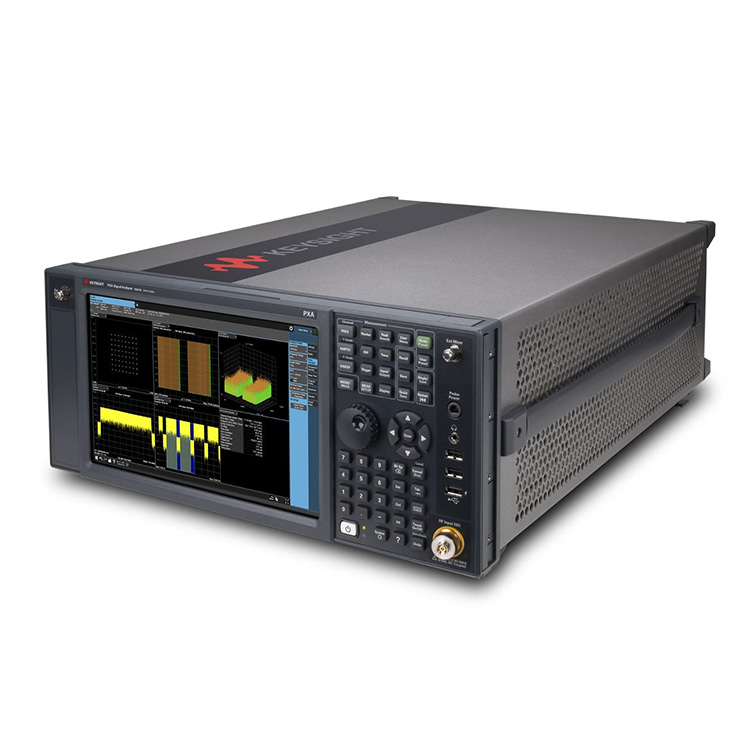

You are welcomed to come to our factory to buy the latest selling, low price, and high-quality N9032B X-Series Signal Analyzers. We look forward to cooperating with you. Built to address high-bandwidth applications like 5G carrier aggregation and amplifier test, 802.11ax/be, satellite, radar, and electronic warfare (EW), Keysight’s N9032B PXA X-Series signal analyzer delivers the widest analysis bandwidth in its class.
Built to address high-bandwidth applications like 5G carrier aggregation and amplifier test, 802.11ax/be, satellite, radar, and electronic warfare (EW), Keysight’s N9032B PXA X-Series signal analyzer delivers the widest analysis bandwidth in its class. Our measurement software applications help you optimize your most complex designs and stay up to date on the latest requirements. Get the best swept displayed average noise level (DANL), error vector magnitude (EVM) performance, and sensitivity in a compact 4U-high form factor.
Ready-to-use PathWave X-Series measurement applications and PathWave 89600 vector signal analysis software to ensure standards compliance and more
Up to 2 GHz bandwidth option available on all models
Superior spur searching speed with industry-best swept DANL
Industry-best EVM residuals and sensitivity
Drop-in replacement for rack-mounted spectrum analyzers and a compact 4U-high form factor
Order-of-magnitude improvement in accuracy with the U9361 RCal receiver calibrator
| Bandwidth Options: |
1 GHz 1.5 GHz 2 GHz |
| DANL @1 GHz: | -174 dBm |
| Frequency: | 2 Hz to 50 GHz |
| Frequency Options: | 8.4, 13.6, 26.5, 44, 50 GHz, Mixers to 1.1 THz |
| Height: | 4U |
| Maximum Analysis Bandwidth: | 2 GHz |
| Maximum Frequency: | 50 GHz |
| Maximum Real-Time Bandwidth: | 2 GHz |
| Performance Level: | ◆◆◆◆◆◇ |
| Phase Noise @1 GHz (10 kHz offset): | -136 dBc/Hz |
| Type: | Benchtop |
| TOI @1 GHz (3rd Order Intercept): | +22 dBm |
