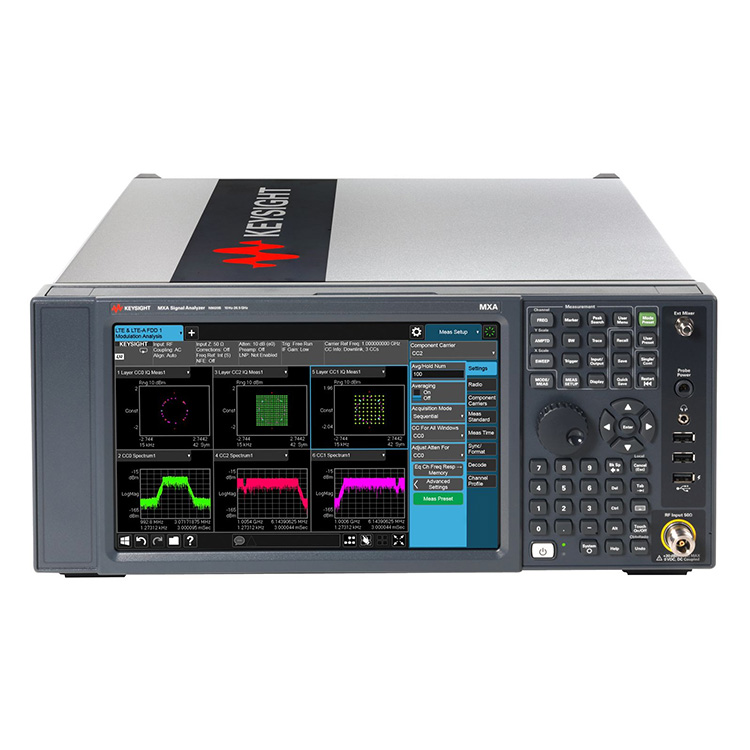

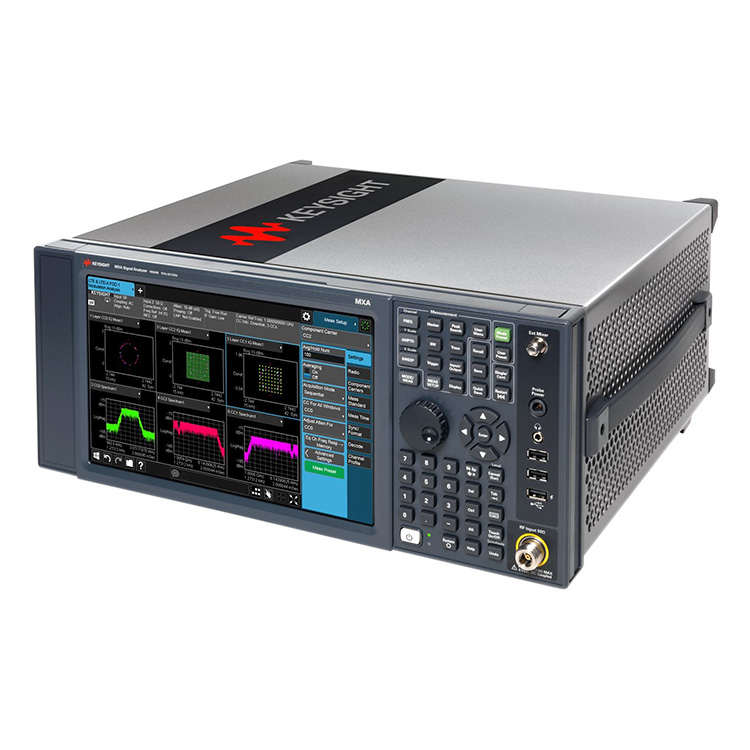

You are welcomed to come to our factory to buy the latest selling, low price, and high-quality N9020B X-Series Signal Analyzers. We look forward to cooperating with you. Built for wireless device test, the MXA signal analyzer helps you characterize signals from virtually any wireless device quickly and confidently with up-to-date parametric or RF functional tests.
Quickly Adapt to Evolving Test Requirements of Wireless Devices
Built for wireless device test, the MXA signal analyzer helps you characterize signals from virtually any wireless device quickly and confidently with up-to-date parametric or RF functional tests. The intuitive multi-touch interface minimizes measurement complexity, even when working with cutting-edge devices.
See more with a wide frequency range of 10 Hz to 50 GHz with up to 160 MHz analysis bandwidth
Shorten test times with hardware-accelerated power measurements, rapid display updates, rapid marker peak searches, and fast sweeps
Get complete signal characterization by capturing longer I/Q samples
Accurately analyze complex signals with EVM as low as 0.3 percent (–50 dB)
Simplify testing with one-button measurements using PathWave X-Series measurement applications
Capture elusive or transient signals with full-band real-time spectrum analysis
| Bandwidth Options: |
25 MHz 40 MHz 85 MHz 125 MHz 160 MHz |
| DANL @1 GHz: | -172 dBm |
| Frequency: | 10 Hz to 50 GHz |
| Frequency Options: | 3.6,8.4,13.6,26.5,32,44,50 GHz, Mixers to 1.1 THz |
| Maximum Analysis Bandwidth: | 160 MHz |
| Maximum Frequency: | 50 GHz |
| Maximum Real-Time Bandwidth: | 160 MHz |
| Overall Amplitude Accuracy: | ±0.23 dB |
| Performance Level: | ◆◆◆◆◇◇ |
| Phase Noise @1 GHz (10 kHz offset): | -114 dBc/Hz |
| Type: | Benchtop |
| TOI @1 GHz (3rd Order Intercept): | +20 dBm |
