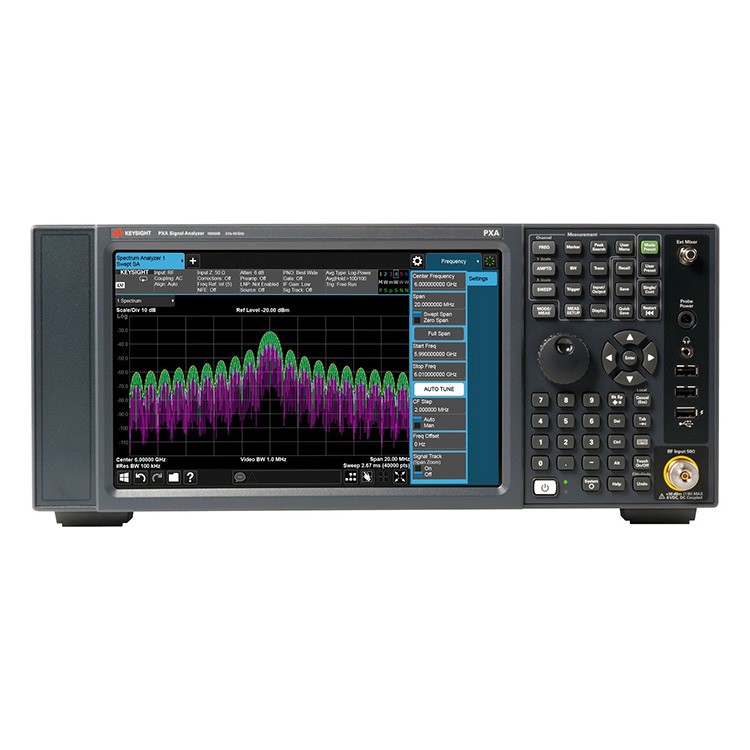

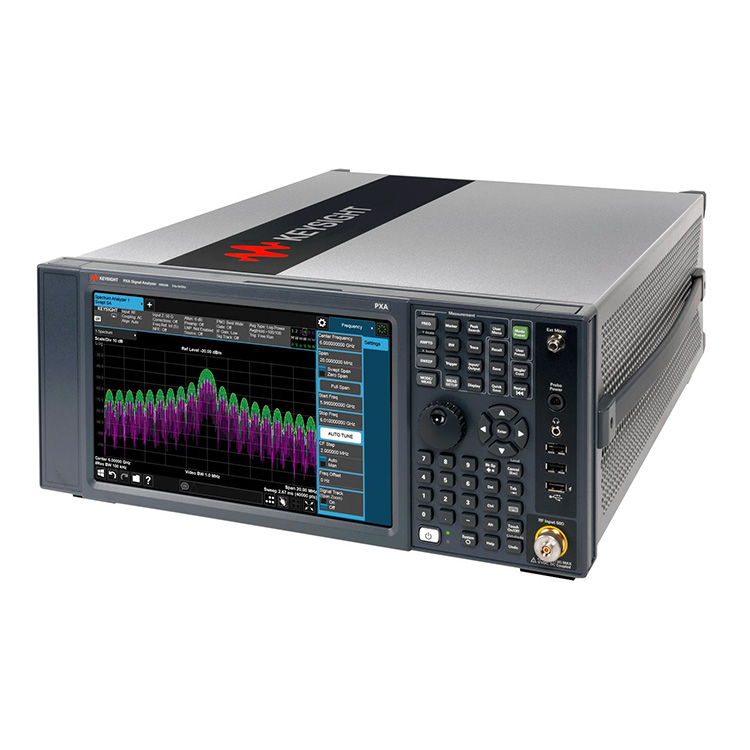

As the professional manufacturer, we would like to provide you N9030B X-Series Signal Analyzers. Simplify application-specific testing with X-Series apps; Perform deeper troubleshooting with the 89600 VSA software.
Benchmark Performance in Signal Analysis
PXA signal analyzers are ideally suited for high-performance research and development (R&D) applications in aerospace/defense and commercial wireless communications. The PXA analyzes signals over wider bandwidths, reduces measurement uncertainty, and reveals previously hidden signals with noise floor extension (NFE). Unravel complex signals through the PXA’s broad set of measurement applications and demodulation capabilities or add real-time spectrum analysis capabilities with an upgradeable option.
Analyze more with a wide frequency range of 2 Hz to 50 GHz with up to 510 MHz analysis bandwidth
See small signals in the presence of large ones with up to 75 dB of spurious-free dynamic range (SFDR)
Extend the frequency up to 110 GHz with Keysight smart mixers
Record, analyze, and simulate real-world scenarios with gap-free streaming up to 255 MHz
Capture transient or intermittent signals with optional real-time spectrum analysis capabilities
Meet stringent data security requirements with a removable solid-state drive and other optional features
| Bandwidth Options: |
25 MHz 40 MHz 85 MHz 125 MHz 160 MHz 255 MHz 510 MHz |
| DANL @1 GHz: | -174 dBm |
| Frequency: | 2 Hz to 50 GHz |
| Frequency Options: | 3.6, 8.4, 13.6, 26.5, 44, 50 GHz, Mixers to 1.1THz |
| Height: | 4U |
| Maximum Analysis Bandwidth: | 510 MHz |
| Maximum Frequency: | 50 GHz |
| Maximum Real-Time Bandwidth: | 510 MHz |
| Overall Amplitude Accuracy: | ±0.19 dB |
| Performance Level: | ◆◆◆◆◆◇ |
| Phase Noise @1 GHz (10 kHz offset): | -136 dBc/Hz |
| Type: | Benchtop |
| TOI @1 GHz (3rd Order Intercept): | +22 dBm |
