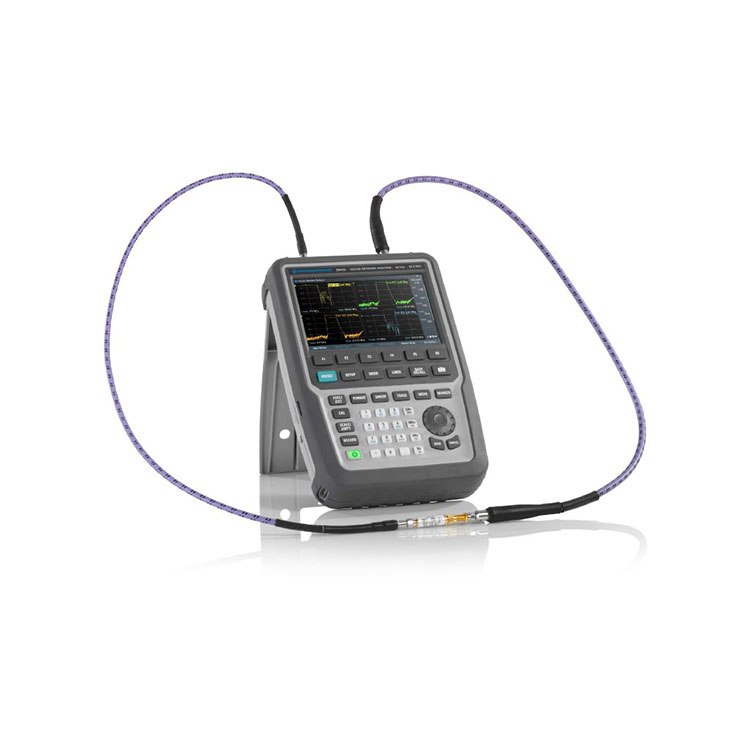

You are welcomed to come to our factory to buy the latest selling, low price, and high-quality R&S ZNH8 Handheld Vector Network Analyzer. Non-reflective display, small form factor, ruggedized housing (IP51).
| Models | Ports | Frequency | Connectors | Starting at |
|
R&S®ZNH8 Order number 1321.1611.08 |
2 | 8 GHz | N | USD 26,600 |
Frequency range from 30 kHz to 4/8/18/26.5 GHz
One-port cable and antenna measurement with basic instrument
S-parameter (S11, S12, S21, S22) measurement with basic instrument
100 dB (typ.) dynamic range for filter and antenna isolation measurements
Non-reflective display, small form factor, ruggedized housing (IP51)
Sophisticated RF architecture provides access to latest calibration types
You are welcomed to come to our factory to buy the latest selling, low price, and high-quality R&S ZNH8 Handheld Vector Network Analyzer. The four-receiver architecture consists of dedicated reference receivers and test receivers at both port 1 and port 2. This allows the R&S®ZNH to support more advanced calibration types such as unknown through, open, short and match (UOSM) calibration. This calibration is useful for DUTs with different input or output connector types at the test ports.
Minimal switching between the two ports and sophisticated calibration such as UOSM
Outstanding RF performance in a small form factor
The portability and small footprint of the R&S®ZNH make it ideal for field measurements.
The R&S®ZNH also delivers high performance with the following features:
Wide frequency range of 30 kHz to 4/8/18/26.5 GHz to support a wide range of applications
High dynamic range of up to 100 dB (typ.) to measure large level variations
Highly accurate thanks to a low trace noise magnitude (RMS) of 0.0015 dB to 0.0040 dB (typ.) and a low trace noise phase (RMS) of 0.02° to 0.04° (typ.)
Built-in receiver step attenuator at both ports, which is adjustable in 5 dB steps from 0 dB to 15 dB
Increases the linearity of the port input power range, which protects the analyzer against overloading.
Multi-touchscreen, remote control and measurement wizard for a top user experience
The multi-touchscreen offers the standard pinch-to-zoom function available on smartphones. The R&S®ZNH supports typical phone control gestures, helping users feel at home. Even if operators cannot access the instrument directly, free PC, Android and iOS remote control apps are available for seamless operation. Furthermore, the measurement wizard helps simplify measurements with automated test sequences, speeding up the test process and reducing the potential for human error.
Capacitive touchscreen; intuitive operation and no display calibration required.
Simple and fast setup with configuration overview menu
The R&S®ZNH has both keys and a rotary knob as well as touchscreen controls. The keys are large and well spaced out, allowing easy operation when wearing gloves.
The capacitive touchscreen offers a new kind of user experience:
Directly interact with elements on the screen
Access menus quickly
Change frequency and span
Add/move/delete markers
And more
The configuration overview menu reduces the steps required to configure the measurement settings, enabling fast setup.

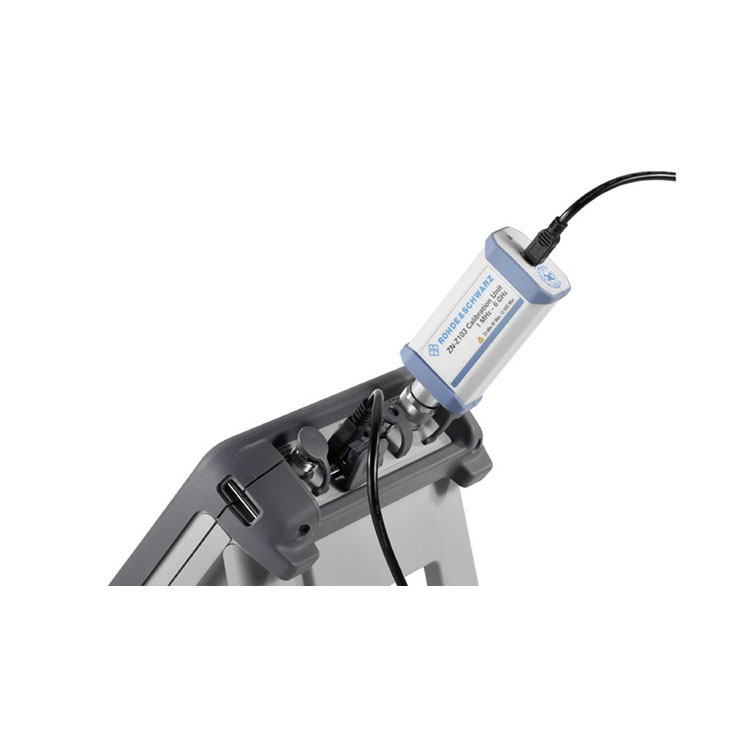

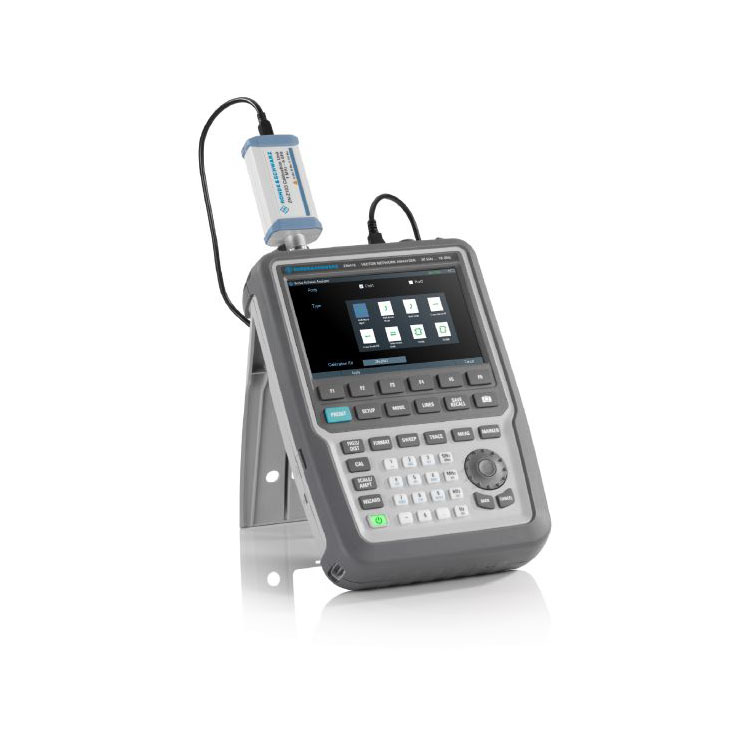

User defined calibration sequences provide a flexible approach.
Comprehensive standard features and simple option ordering
The R&S®ZNH base unit includes:
Distance-to-fault measurements
One-port cable loss measurements
Reflection measurement
Transmission measurement
Four S-parameters (S11, S12, S21, S22)
When additional functions are needed, the options are easy to order. All the options can be ordered transparently and independently, meaning no hidden costs and no confusion when ordering.

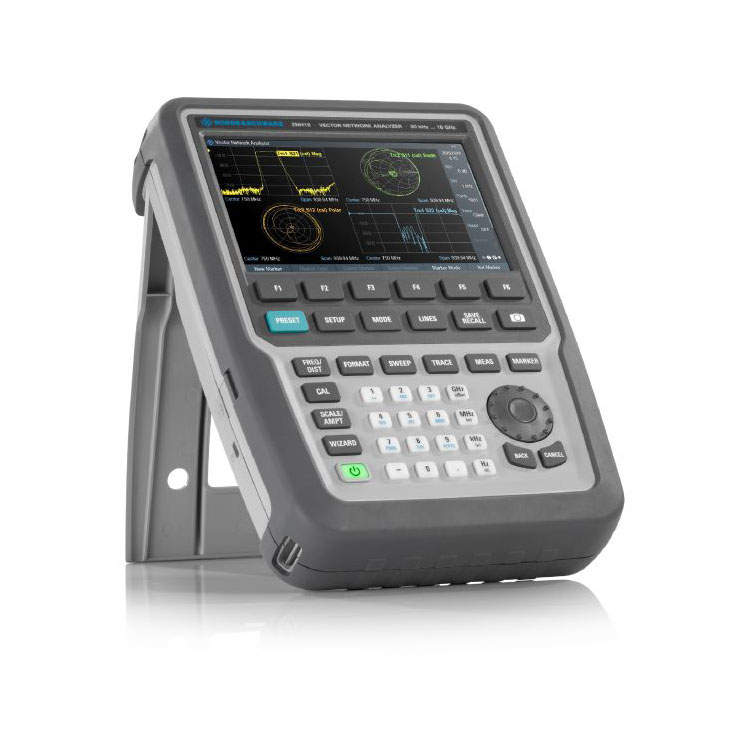

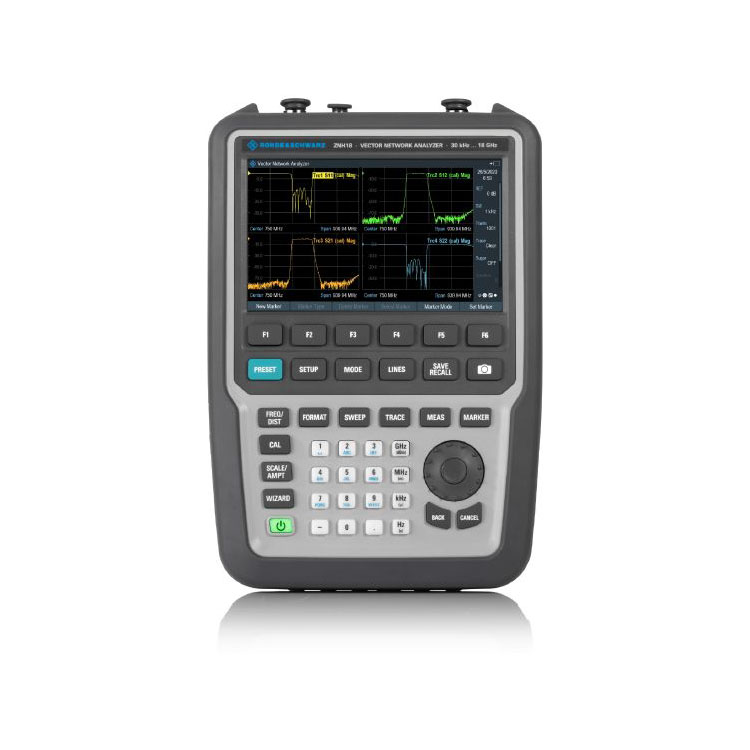

Four S-parameter measurements provided as standard.
