As the professional manufacturer, we would like to provide you high quality R&S SMZ90 Frequency Multiplier.
| Models | Frequency range |
|
R&S®SMZ90 frequency multiplier, 60 GHz to 90 GHz Order number 1417.4504.02 |
60 GHz to 90 GHz |
Freq. range: 50 up to 170 GHz
Wide dynamic range
Easy handling via USB control
High signal quality
As the professional manufacturer, we would like to provide you high quality R&S SMZ90 Frequency Multiplier. Frequency ranges from 50 GHz to 75 GHz, 60 GHz to 90 GHz, 75 GHz to 110 GHz and 110 GHz to 170 GHz
Two models (R&S®SMZ75 and R&S®SMZ110) cover the wide frequency range from 50 GHz to 110 GHz

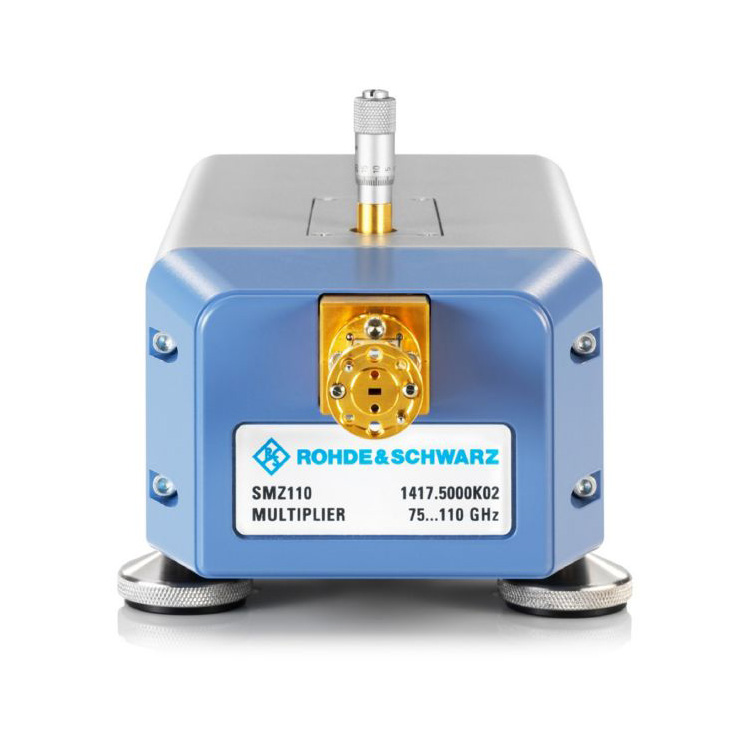

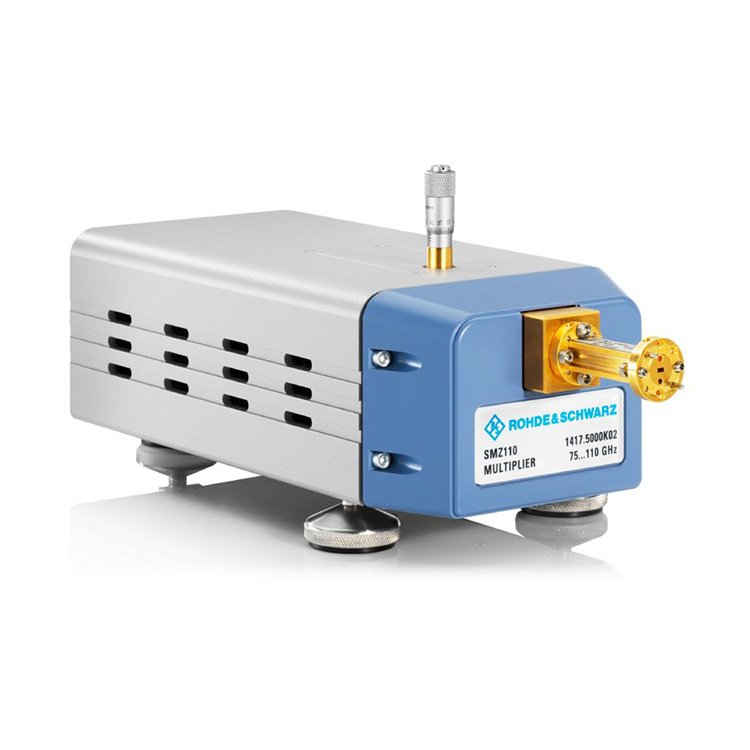

Optional mechanically or electronically controlled attenuator
When the R&S®SMZ is equipped with a mechanical or electronic attenuator, users can set the actual level at the output of the R&S®SMZ. Since the R&S®SMB100A reads the frequency response of the R&S®SMZ including attenuator via USB, the frequency response can be taken into account when the level is entered on the R&S®SMB100A.

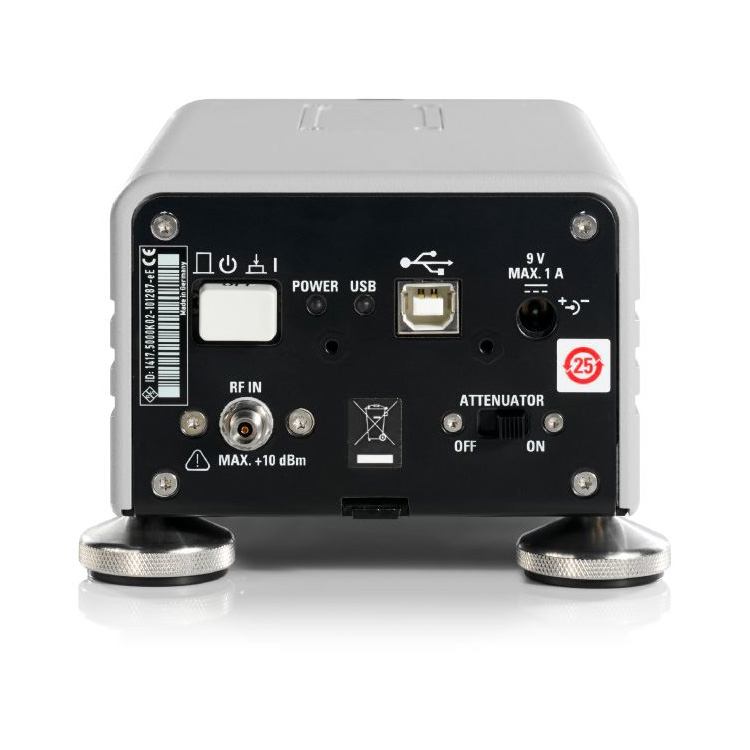

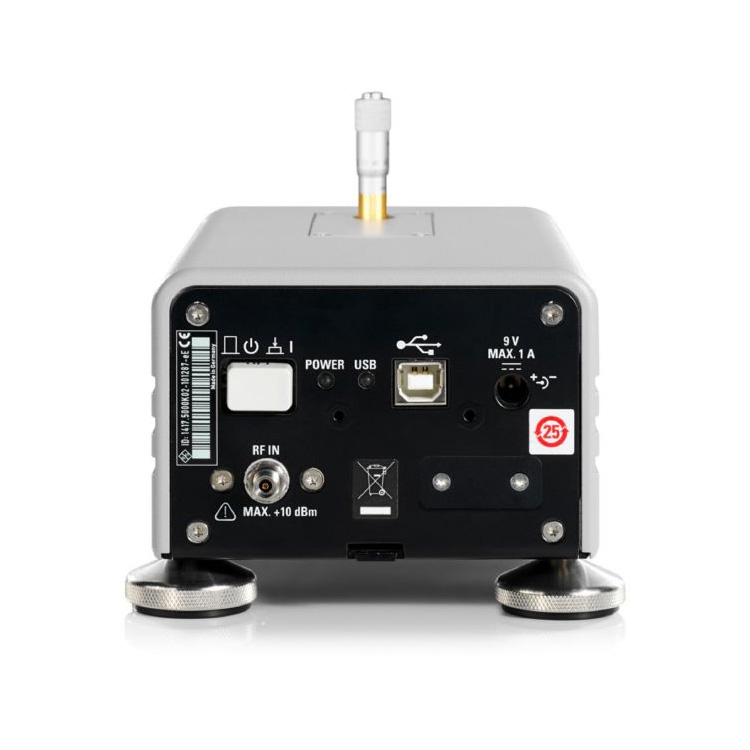

Automatic detection and control of the R&S®SMZ by the R&S®SMB100A via USB
Easy set up with the R&S®SMB100A, the R&S®SMZ plus an optional mechanically or electronically controlled attenuator
Frequency and/or level setting on the R&S®SMB100A that takes into consideration the connected R&S®SMZ
Automatic frequency response correction of the precalibrated R&S®SMZ including attenuator with the R&S®SMB100A

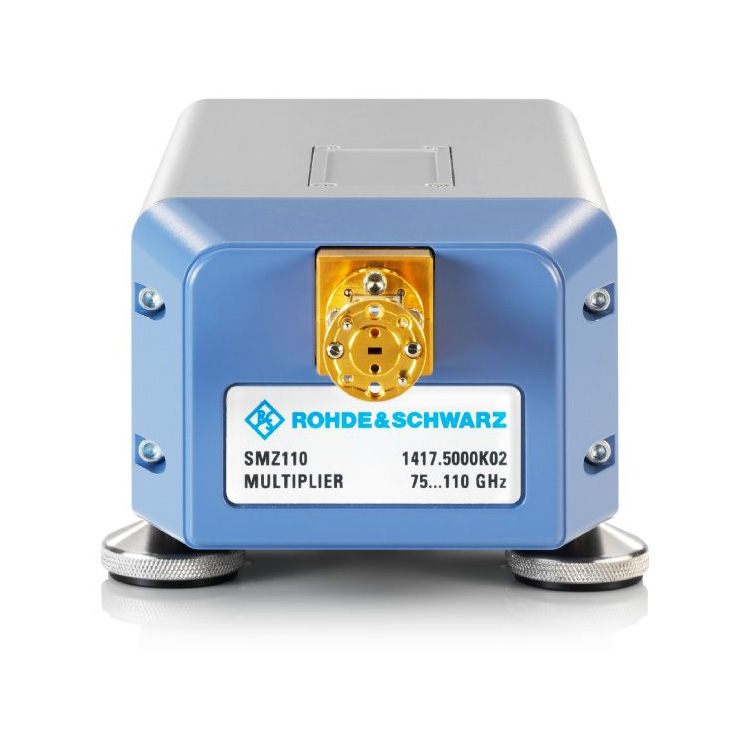

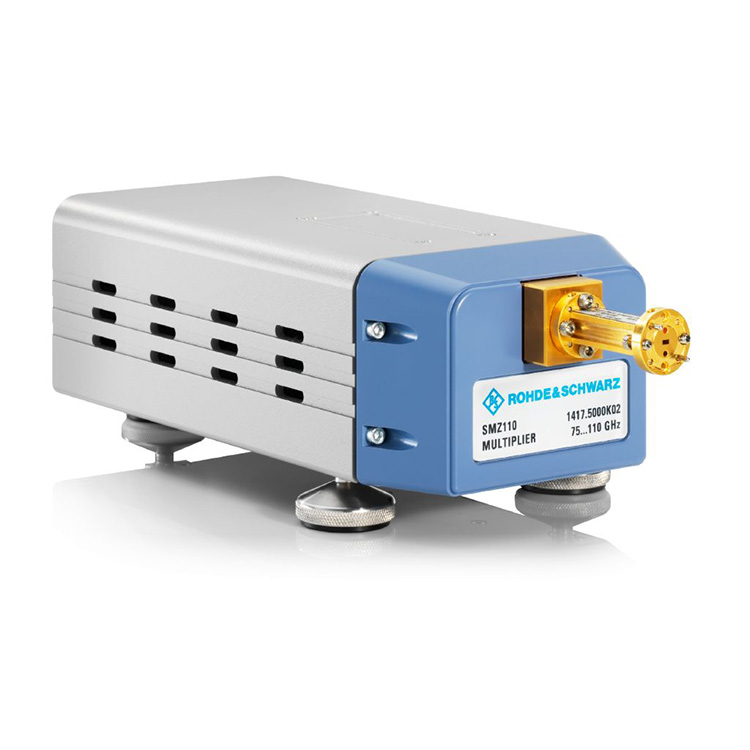

The R&S®SMB100A microwave signal generator and the R&S®SMZ110 frequency multiplier with built-in electronically controlled attenuator.
Very low single sideband phase noise when the R&S®SMA100B microwave signal geneartor plus R&S®SMZ control is used as a source
High accuracy of set output level
Excellent matching
