As a professional high quality R&S SMZ110 Frequency Multiplier manufacturer, you can rest assured to buy R&S SMZ110 Frequency Multiplier from our factory.
| Models | Frequency range |
|

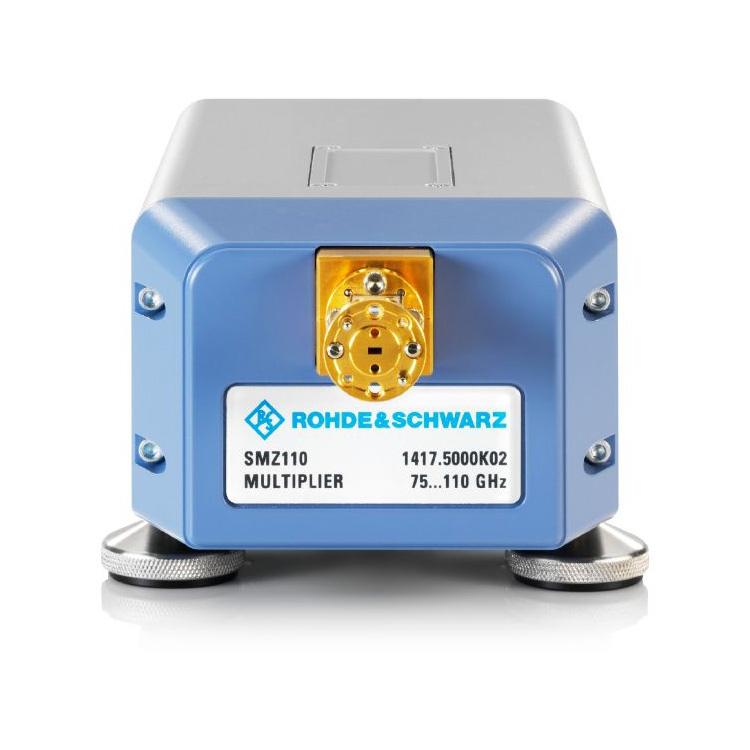

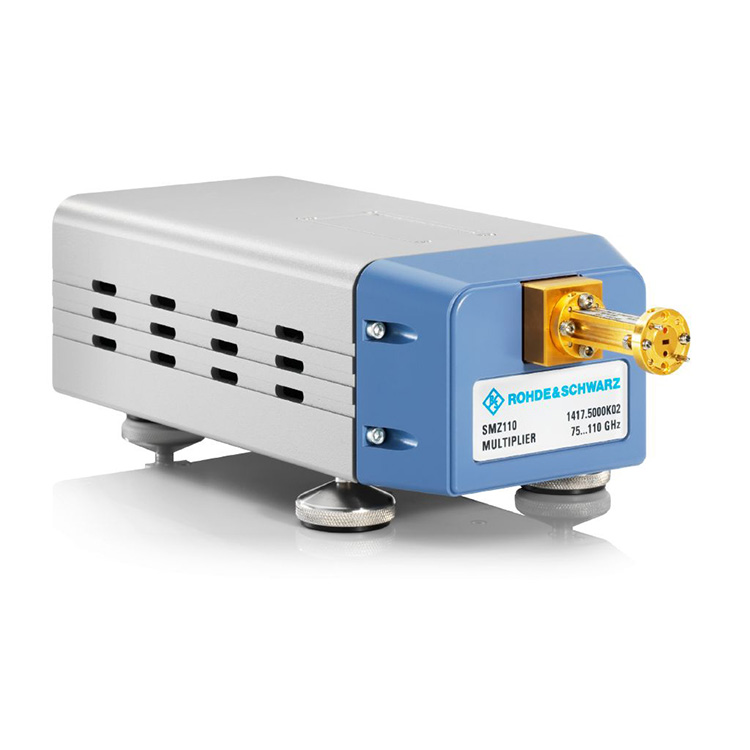

R&S®SMZ110 frequency multiplier, 75 GHz to 110 GHz Order number 1417.5000.02 |
75 GHz to 110 GHz |
Freq. range: 50 up to 170 GHz
Wide dynamic range
Easy handling via USB control
High signal quality
As a professional high quality R&S SMZ110 Frequency Multiplier manufacturer, you can rest assured to buy R&S SMZ110 Frequency Multiplier from our factory. Frequency ranges from 50 GHz to 75 GHz, 60 GHz to 90 GHz, 75 GHz to 110 GHz and 110 GHz to 170 GHz
Two models (R&S®SMZ75 and R&S®SMZ110) cover the wide frequency range from 50 GHz to 110 GHz

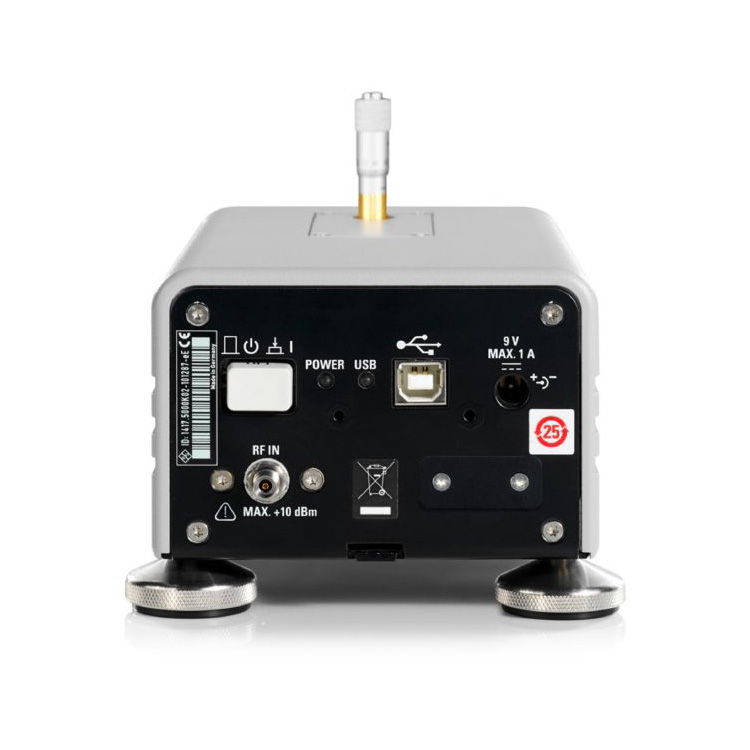

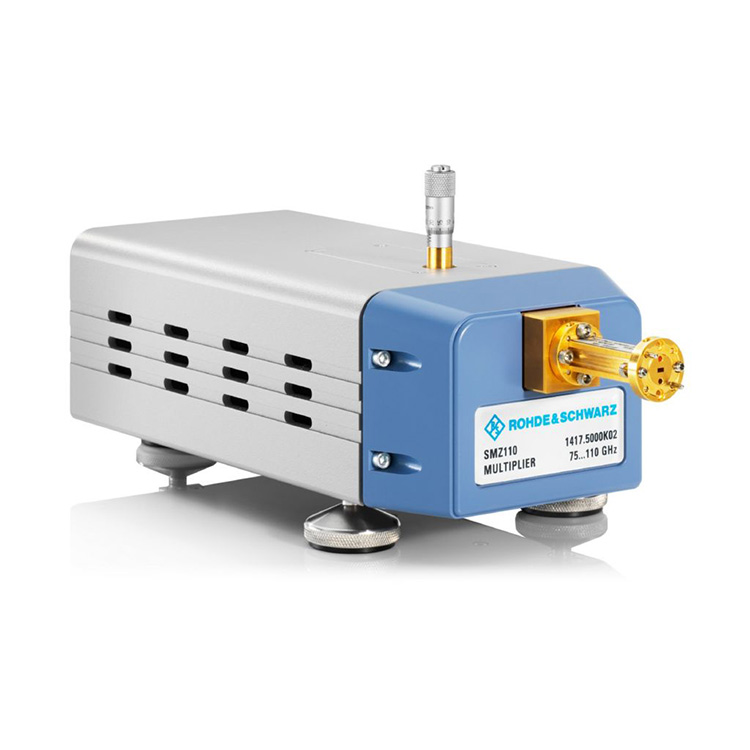

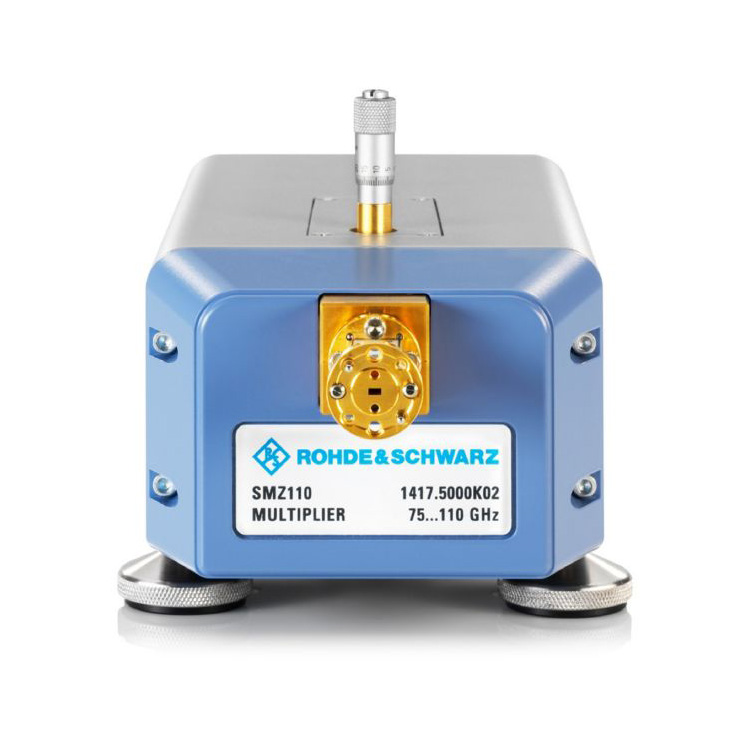

Optional mechanically or electronically controlled attenuator
When the R&S®SMZ is equipped with a mechanical or electronic attenuator, users can set the actual level at the output of the R&S®SMZ. Since the R&S®SMB100A reads the frequency response of the R&S®SMZ including attenuator via USB, the frequency response can be taken into account when the level is entered on the R&S®SMB100A.
Automatic detection and control of the R&S®SMZ by the R&S®SMB100A via USB
Easy set up with the R&S®SMB100A, the R&S®SMZ plus an optional mechanically or electronically controlled attenuator
Frequency and/or level setting on the R&S®SMB100A that takes into consideration the connected R&S®SMZ
Automatic frequency response correction of the precalibrated R&S®SMZ including attenuator with the R&S®SMB100A

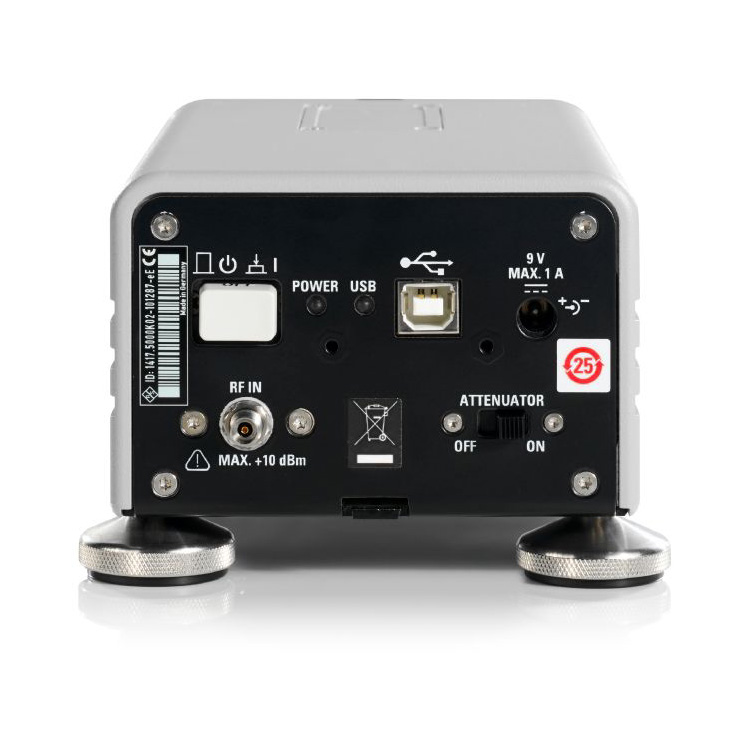

The R&S®SMB100A microwave signal generator and the R&S®SMZ110 frequency multiplier with built-in electronically controlled attenuator.
Very low single sideband phase noise when the R&S®SMA100B microwave signal geneartor plus R&S®SMZ control is used as a source
High accuracy of set output level
Excellent matching
