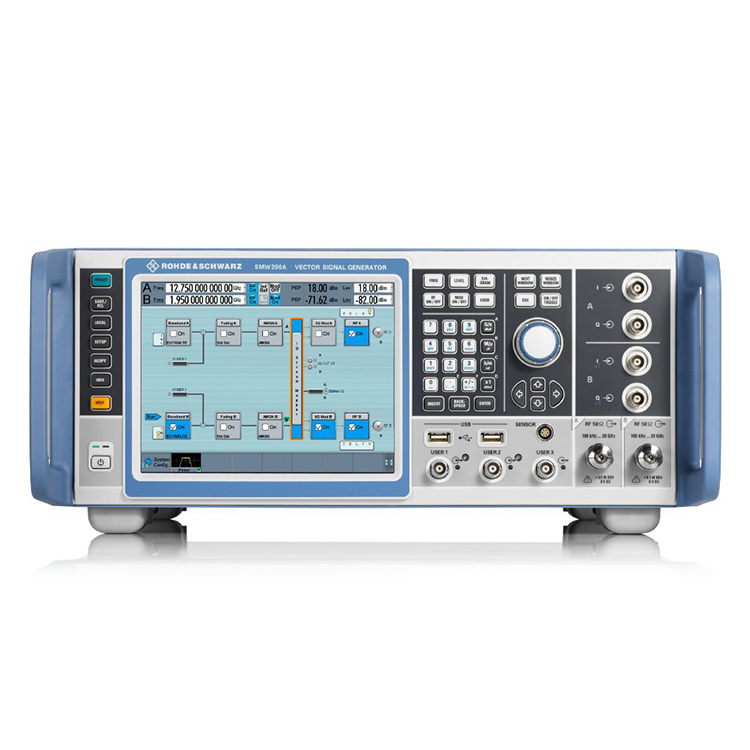

As the professional manufacturer, we would like to provide you R&S SMW200A Signal Generators. The R&S®SMW200A covers the frequency range up to 67 GHz as a single-path instrument and up to 44 GHz as a dual-path instrument.
| Product Name | Frequency range | Level range | I/Q modulation bandwidth | Harmonics |
| R&S®SMW200A | 100kHz - 67GHz | -120dBm - +18dBm |
2 GHz internal 2 GHz external |
< -55dBc >3.5GHz |
Frequency range up to 67 GHz (dual path: up to 44 GHz)
2 GHz modulation bandwidth
Integrated fading with up to 800 MHz bandwidth and up to 8x8 MIMO
Signal generation for all major digital communications standards
Advanced GNSS and radar simulator
As the professional manufacturer, we would like to provide you R&S SMW200A Signal Generators. Performance and functionality requirements vary depending on test setup and application. The R&S®SMW200A is unrivaled in mastering these varied requirements and sets new standards for signal generators. When developing and verifying any type of DUT, including components, modules and complete base stations – the R&S®SMW200A easily generates the appropriate test signals with top performance. The R&S®SMW200A has a flexible modular design that can be equipped with exactly options that applications require. Any configuration is possible, from a classic single-path vector signal generator to a multichannel MIMO receiver tester.
The R&S®SMW200A covers the frequency range up to 67 GHz as a single-path instrument and up to 44 GHz as a dual-path instrument. It can also be equipped with a maximum of two internal baseband modules and four fading simulator modules. This concept yields two full-featured vector signal generators in a single unit, enabling easy generation of complex signal scenarios.
The standard high-end synthesizer in the R&S®SMW200A provides exceptional SSB phase-noise and nonharmonic performance. Several low phase-noise options are available to further improve performance. The R&S®SMW-B711/B721 ultra-low phase-noise options enable best-in-class phase-noise performance. The R&S®SMW200A is perfect for measurements that demand spectral purity.
The wideband I/Q modulator with up to 2 GHz RF bandwidth covers all applications in its frequency range, including wireless communications, satellite communications and radar. The internal baseband can generate signals with a maximum 2 GHz RF modulation bandwidth.
State-of-the-art D/A converters and excellent RF chain design ensure exceptional modulation frequency response of < 0.4 dB over 2 GHz bandwidth with excellent EVM performance.
The R&S®SMW200A offers integrated channel emulation for up to 800 MHz of fading bandwidth. Fading profiles for all major standards are available as presets. With up to 64 fading channels, all key MIMO fading scenarios such as 2x2, 3x3, 4x4, 8x4, 4x8 and 8x8 can be configured in a single instrument. Aggregation of up to eight carriers is also supported and SGT100A signal generator modules can be connected to provide up to eight RF paths.

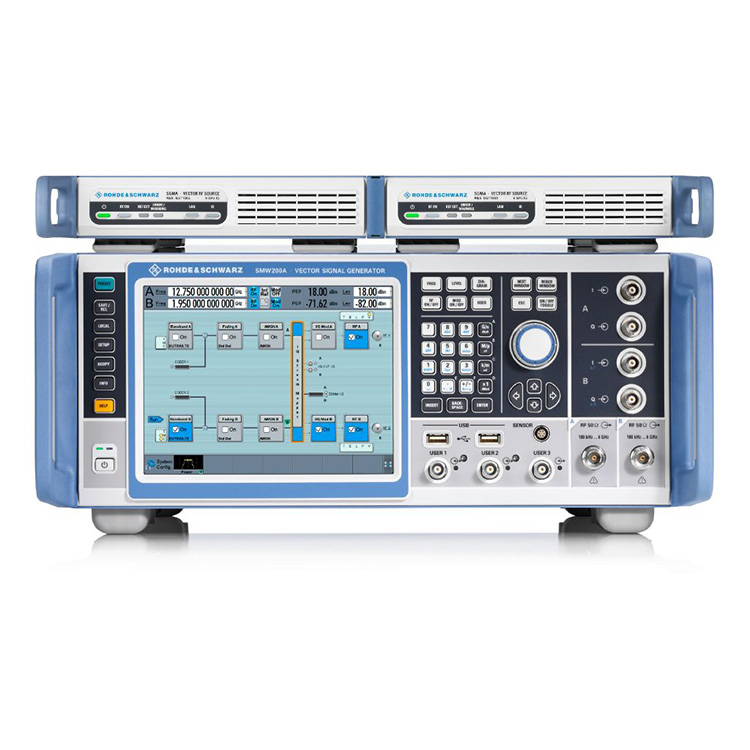

Two-path R&S®SMW200A with six R&S®SGT100A signal generator modules operated from the R&S®SMW200A;
The built-in R&S®SMW200A graphics function displays generated signals in real time. The user can select the type of display, e.g. I/Q vs. time, frequency spectrum, vector diagram or CCDF. The R&S®SMW200A also offers a SCPI macro recorder with code generator, which records all manual operating steps to generate a file with a remote command sequence. Integrated code templates are provided for directly generating executable code for MATLAB®, CVI or Python.
Graphical signal monitoring in real time is extremely useful when generating complex signals.
Wireless communications standards
Real-time envelope tracking
GNSS simulation
Radar simulation
