Never Sacrifice Capability or Portability

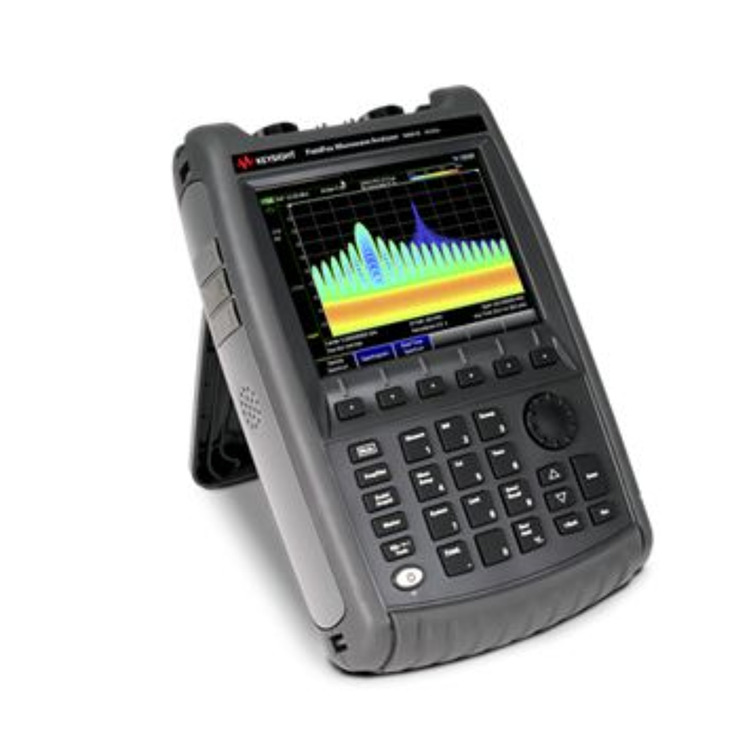

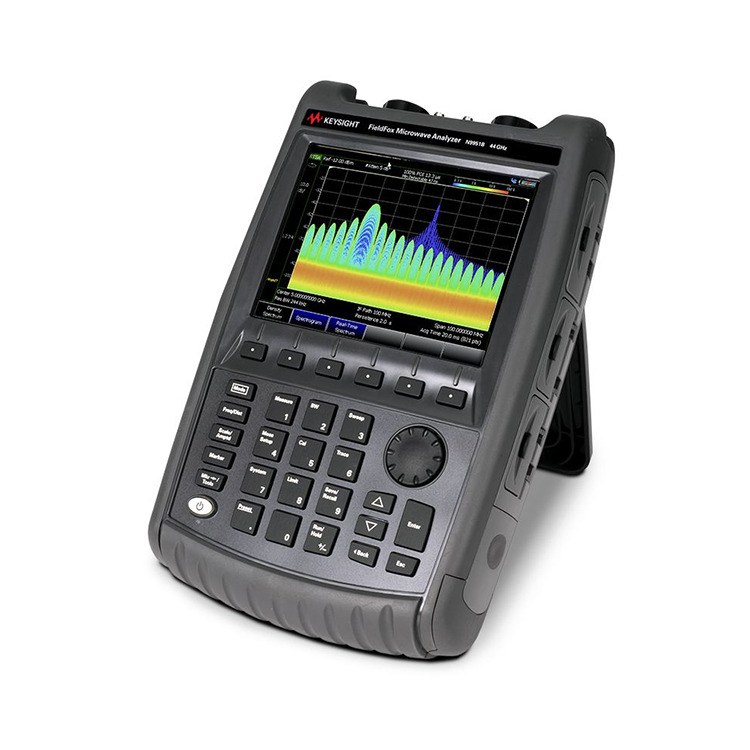

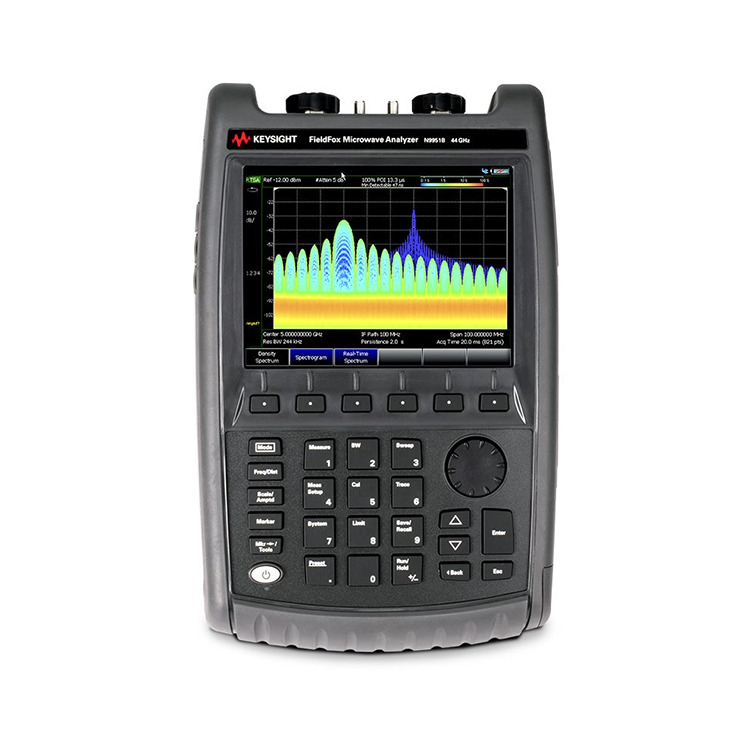

N9950B FieldFox Handheld Microwave Spectrum Analyzer are equipped to handle your toughest working environments during routine maintenance, in-depth troubleshooting, and anything in between. Choose the software-enabled FieldFox configuration that best meets your needs.
Base model includes a cable and antenna tester (CAT)
Add software-defined measurement functions according to your needs.
Capture elusive signals with 120 MHz gap-free, real-time bandwidth.
Measure all four S-parameters simultaneously with 105 dB dynamic range.
Make accurate spectrum analyzer measurements (± 0.2 dB) without warmup.
Perform over-the-air measurements for 5G NR and LTE.
Use GPS/GNSS for geolocation and timestamping.
Carry one lightweight unit at 3.4 kg (7.4 lb).
| Additional CAT/VNA Based Features: | Mixed-Mode S-Parameters |
| DTF/TDR Cable Measurements | Vector Voltmeter |
| Additional SA Based Features: | Real-Time Spectrum Analysis |
| Noise Figure Measurements | Over-The-Air Measurements |
| Built-In Power Meter | Extended Range Transmission Analysis (ERTA) |
| Applications: | AM/FM Tune and Listen |
| Cable and Antenna Analysis | Field Strength Measurement |
| SCPI Code Compatibility | Spectrogram |
| Stimulus Response | 89600 VSA Software |
| Over-The-Air LTE FDD and 5GTF | 5G NR |
| Bandwidth Options: | 10 MHz |
| 40 MHz | 120 MHz |
| Best Speed at 1001 Point, 1 Sweep: | 196 μs/pt |
| Cable and Antenna Analyzer: | Yes - Standard |
| DANL @1 GHz: | -163 dBm |
| Frequency Range: | DC to 32 GHz |
| Instrument Type: | Combination Analyzer |
| Maximum Analysis Bandwidth: | 120 MHz |
| Maximum Frequency: | 32 GHz |
| Maximum Real-Time Bandwidth: | 120 MHz |
| Minimum Frequency: | 300 kHz |
| Number of Built-In Ports: | 2 ports |
| Number of built-in ports: | 2 ports |
| Output Power: | Up to 7 dBm |
| Overall Amplitude Accuracy: | +/- 0.2 dB |
| Overall Amplitude Accuracy: | +/- 0.2 dB |
| Phase Noise @1 GHz (1 MHz offset): | -125 dBc/Hz |
| Phase Noise @1 GHz (10 kHz offset): | -114 dBc/Hz |
| Phase Noise @1 GHz (30 kHz offset): | -114 dBc/Hz |
| Phase Noise at 1 GHz, 1 MHz offset: | -125 dBc/Hz |
| Phase Noise at 1 GHz 10 kHz offset: | -114 dBc/Hz |
| Power Measurement Using USB Sensor: | Frequency-Offset |
| CW or Swept-Frequency | RF Pulse Test with Peak Sensor |
| SA Start Frequency: | 5 kHz |
| Spectrum Analyzer: | Yes - Optional |
| Spur Free Dynamic Range: | > 104 dB |
| Standard Attenuator Range: | 40 dB |
| Standard Attenuator Step: | 5 dB |
| Standard Attenuator Step: | 5 dB |
| System Dynamic Range: | > 105 dB |
| System Features: | GPS Receiver - Internal Only |
| Remote Control Capability | Built-In DC Source |
| Type: | Handheld |
| TOI @1 GHz (3rd Order Intercept): | + 5.1 dBm |
| Trace Noise: | 0.001 dB |
| Type: | Handheld |
| Vector Network Analyzer: | Yes - Optional |
