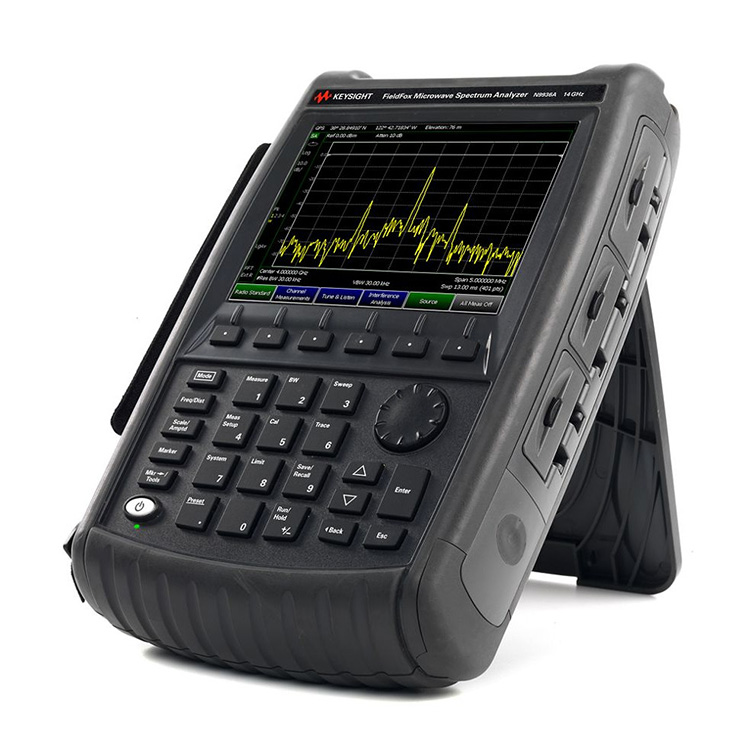

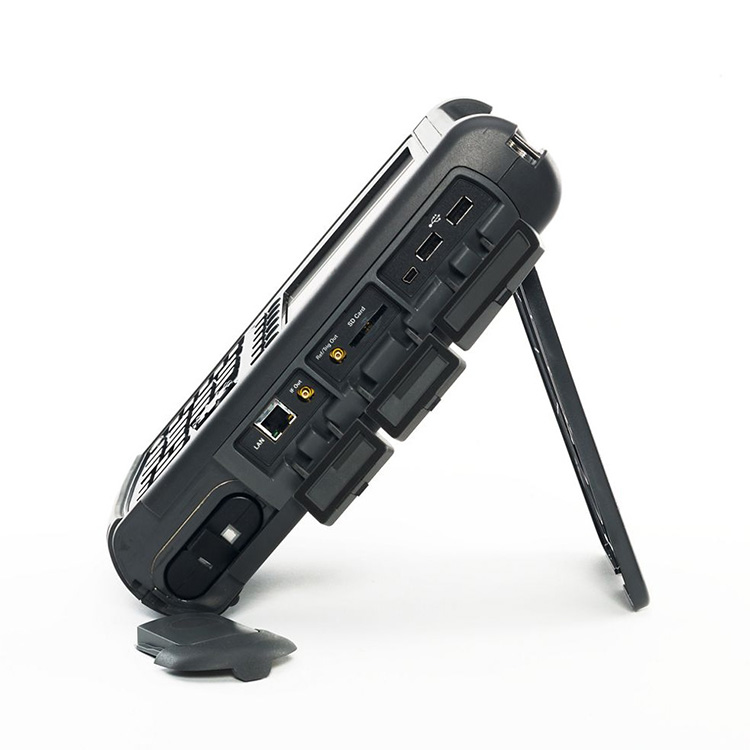

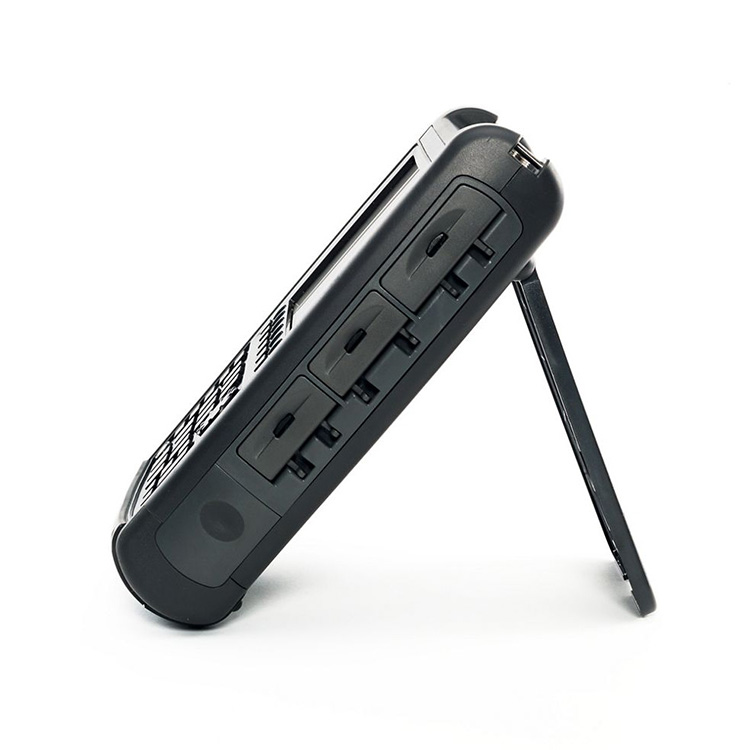

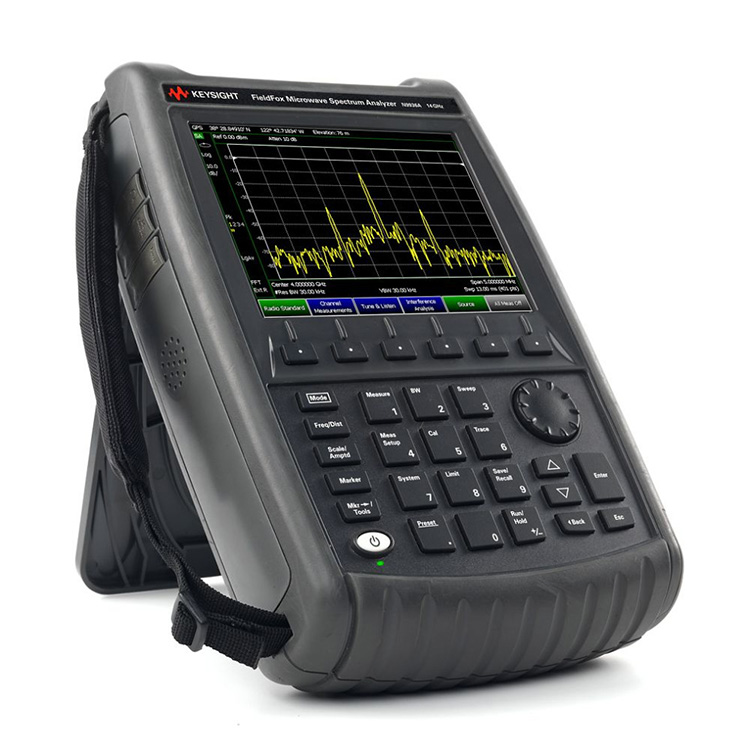

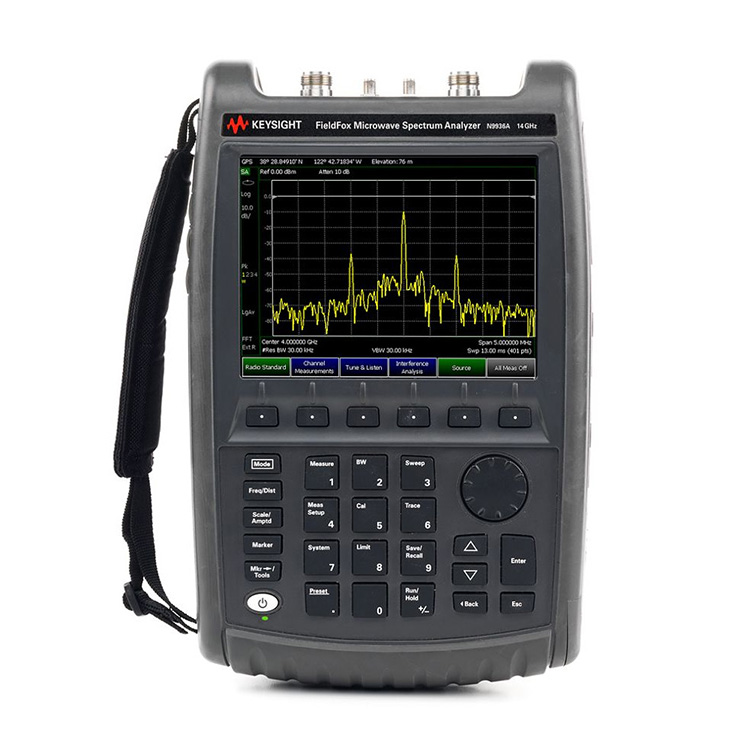

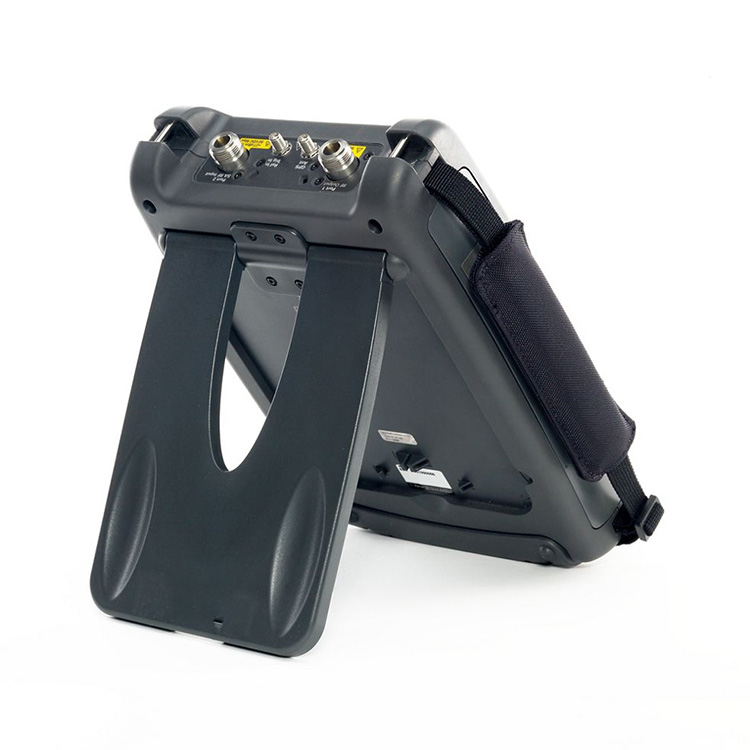

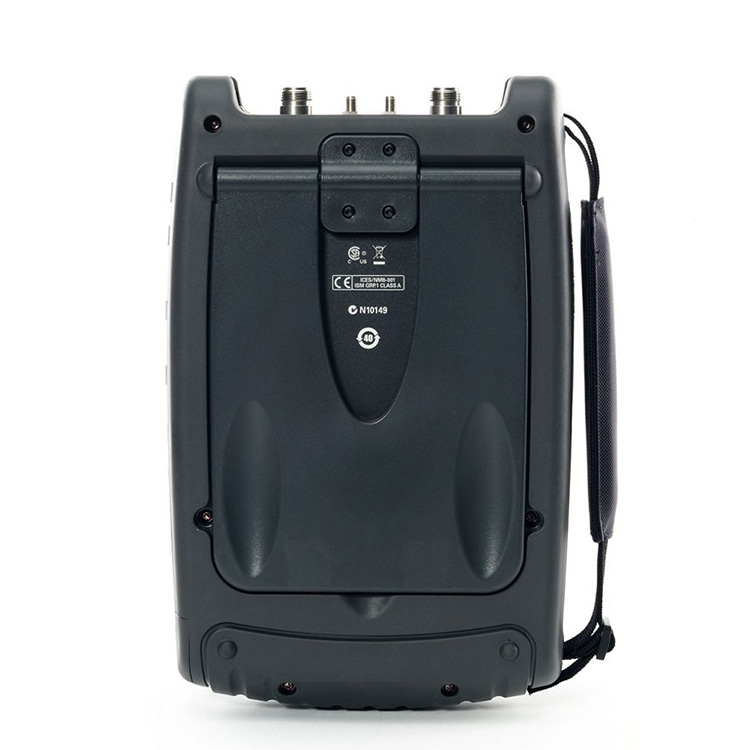

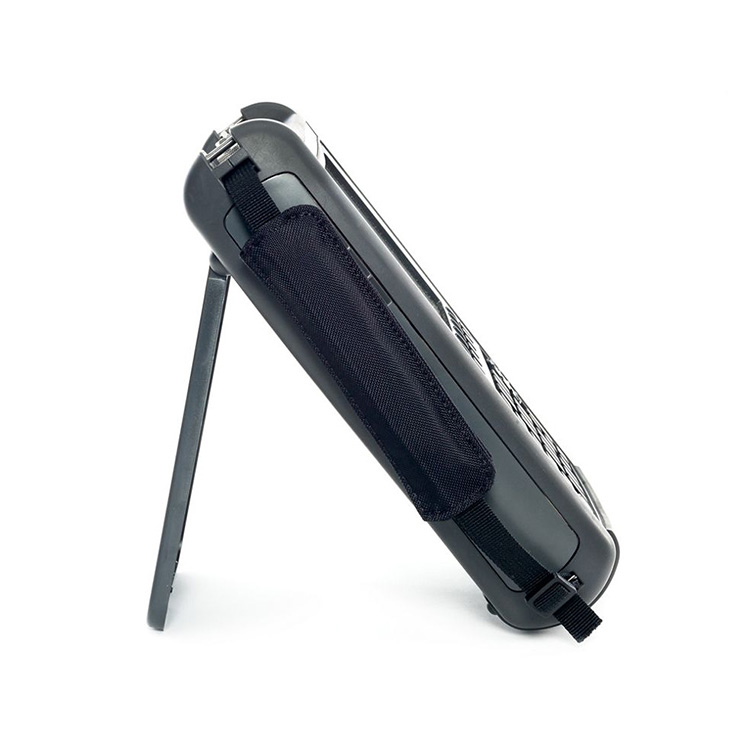

As the professional manufacturer, we would like to provide you N9936A FieldFox Handheld Microwave Spectrum Analyzer.N9936A is a portable battery-operated microwave spectrum analyzer; configurations also include full band tracking generator and preamplifier, interference analyzer, time gating, VSWR and reflection measurements, and built-in power meter.
Never Sacrifice Capability or Portability
As the professional manufacturer, we would like to provide you N9936A FieldFox Handheld Microwave Spectrum Analyzer. Keysight's FieldFox portable analyzers are equipped to handle your toughest working environments during routine maintenance, in-depth troubleshooting, and anything in between. Choose the Keysight FieldFox configuration that best meets your needs.
Make accurate spectrum analyzer measurements (± 0.5 dB) without warmup.
Capture intermittent signals with 10 MHz gap-free, real-time bandwidth.
Characterize radar pulse profiles with a portable solution.
Perform over-the-air measurements for 5G TF and LTE.
Capture I/Q data for RF signal monitoring and analysis.
Use GPS/GNSS for geolocation and timestamping.
Carry one lightweight unit at 3.0 kg (6.6 lb).
What's included:
AC/DC adapter
Localized power cord
Rechargeable Li-ion battery
Soft carrying case with backpack and shoulder straps
Quick Reference Guide
| Additional SA Based Features: |
Real-Time Spectrum Analysis Noise Figure Measurements Over-The-Air Measurements Built-In Power Meter Extended Range Transmission Analysis (ERTA) |
| Applications: |
AM/FM Tune and Listen Field Strength Measurement SCPI Code Compatibility Spectrogram Stimulus Response 89600 VSA Software Over-The-Air LTE FDD and 5GTF |
| Bandwidth: | 10 MHz |
| Bandwidth Options: | 10 MHz |
| Cable and Antenna Analyzer: | No |
| DANL @1 GHz: | -155 dBm |
| Form Factor: | n/a |
| Frequency: | 14 GHz |
| Instrument Type: | Spectrum Analyzer |
| Maximum Analysis Bandwidth: | 10 MHz |
| Maximum Frequency: | 14 GHz |
| Maximum Real-Time Bandwidth: | 10 MHz |
| Number of Built-In Ports: | 2 ports |
| Output Power: | Up to 1 dBm |
| Overall Amplitude Accuracy: | ±0.35 dB |
| Phase Noise @1 GHz (1 MHz offset): | -113 dBc/Hz |
| Phase Noise @1 GHz (10 kHz offset): | -111 dBc/Hz |
| Phase Noise @1 GHz (30 kHz offset): | -108 dBc/Hz |
| Power Measurement Using USB Sensor: |
Frequency-Offset CW or Swept-Frequency RF Pulse Test with Peak Sensor |
| SA Start Frequency: | 5 kHz |
| Spectrum Analyzer: | Yes - Standard |
| Spur Free Dynamic Range: | > 105 dB |
| Standard Attenuator Range: | 30 dB |
| Standard Attenuator Step: | 5 dB |
| System Features: |
GPS Receiver - Internal Only Remote Control Capability Built-In DC Source |
| TOI @1 GHz (3rd Order Intercept): | +15 dBm |
| Type: | Handheld |
| Vector Network Analyzer: | No |
