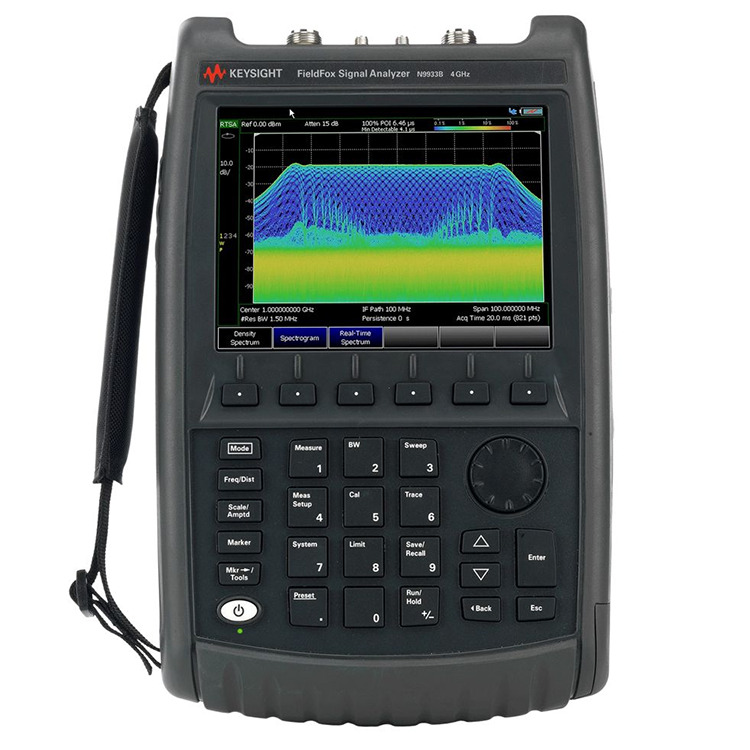

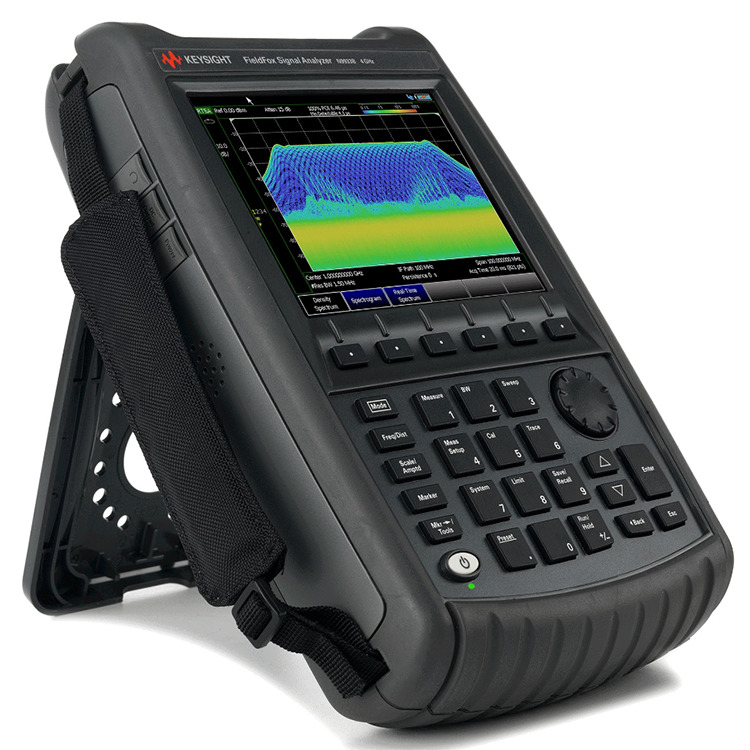

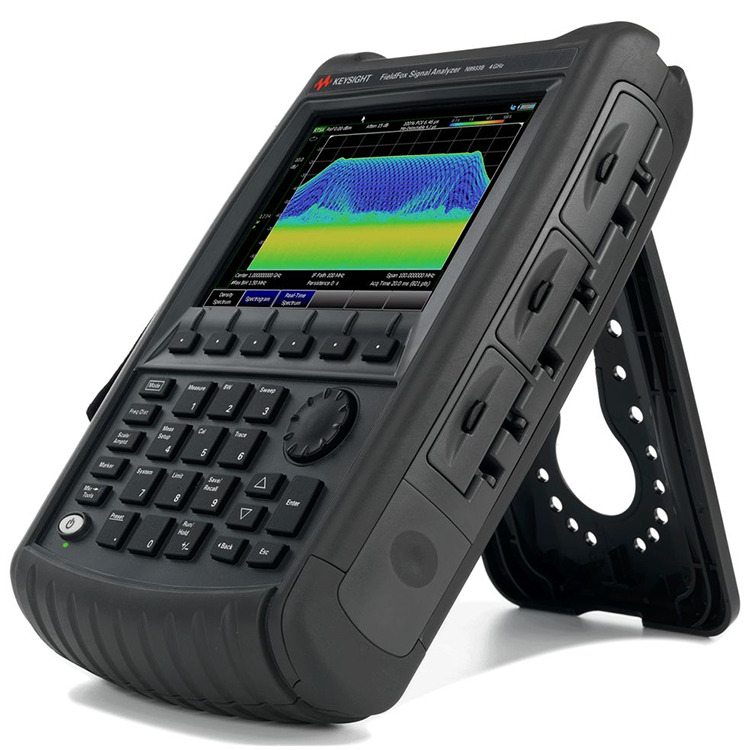

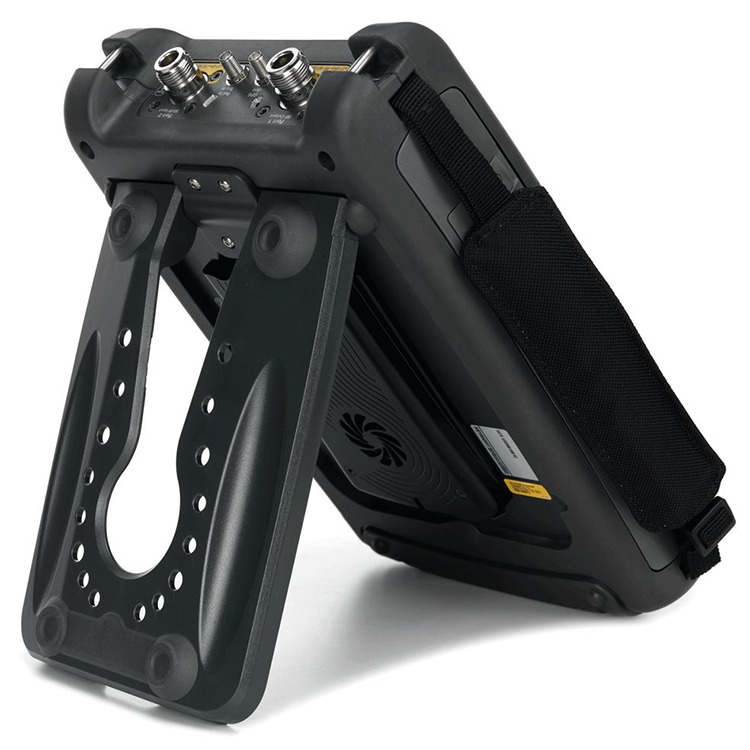

N9933B FieldFox Handheld Microwave Spectrum Analyzer

Dongguan Qihang Electronic Technology Co.,Ltd. is China manufacturer & supplier who mainly produces N9933B FieldFox Handheld Microwave Spectrum Analyzer with many years of experience. Hope to build business relationship with you.

Send Inquiry

Product Description

Dongguan Qihang Electronic Technology Co.,Ltd. is China manufacturer & supplier who mainly produces N9933B FieldFox Handheld Microwave Spectrum Analyzer with many years of experience. Hope to build business relationship with you. To supply quality assured products, at competitive prices, from knowledgeable technical experts, effectively, efficiently and with the best reliability in the market.

Highlights

Never Sacrifice Capability or Portability

N9933B FieldFox Handheld Microwave Spectrum Analyzer are equipped to handle your toughest working environments during routine maintenance, in-depth troubleshooting, and anything in between. Choose the Keysight FieldFox configuration that best meets your needs.

Make accurate spectrum analyzer measurements (± 0.3 dB) without warmup

Capture intermittent signals with 120 MHz gap-free, real-time bandwidth

Characterize radar pulse profiles with a portable solution

Perform over-the-air measurements for 5G NR and LTE

Capture I/Q data for RF signal monitoring and analysis

Use GPS/GNSS for geolocation and timestamping

Carry one lightweight unit at 3.4 kg (7.4 lb)

What's included:

AC/DC adapter

Localized power cord

Rechargeable Li-ion battery

Soft carrying case with backpack and shoulder straps

Quick Reference Guide


Key Specifications

Additional SA Based Features: Real-Time Spectrum Analysis
Noise Figure Measurements Over-The-Air Measurements
Built-In Power Meter Extended Range Transmission Analysis (ERTA)
Applications: AM/FM Tune and Listen
Field Strength Measurement SCPI Code Compatibility
Spectrogram Stimulus Response
89600 VSA Software Over-The-Air LTE FDD and 5GTF
5G NR Bandwidth Options:
10 MHz 40 MHz
120 MHz Cable and Antenna Analyzer:
No DANL @1 GHz:
-163 dBm Instrument Type:
Spectrum Analyzer Maximum Analysis Bandwidth:
120 MHz Maximum Frequency:

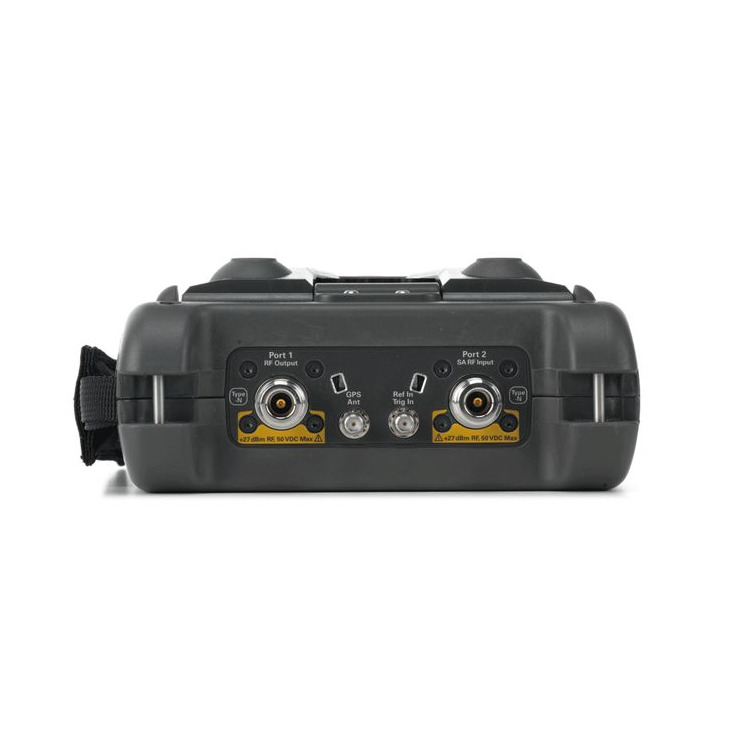

4 GHz Number of Built-In Ports:
2 ports Output Power:
Up to 9 dBm Overall Amplitude Accuracy:
±0.2 dB Phase Noise @1 GHz (1 MHz offset):
-124 dBc/Hz Phase Noise @1 GHz (10 kHz offset):
-117 dBc/Hz Phase Noise @1 GHz (30 kHz offset):
-115 dBc/Hz Power Measurement Using USB Sensor:
Frequency-Offset CW or Swept-Frequency
RF Pulse Test with Peak Sensor SA Start Frequency:
5 kHz Spectrum Analyzer:
Yes - Standard Standard Attenuator Range:
40 dB Standard Attenuator Step:
5 dB System Features:
GPS Receiver - Internal Only Remote Control Capability
Built-In DC Source Type:
Handheld Vector Network Analyzer:
No
