You can rest assured to buy customized N9923A FieldFox Handheld Microwave Spectrum Analyzer from us. We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time! Depending on the rich experience on the product quality, development and excellent customer service, the business expand very quickly in the right way.
Never Sacrifice Capability or Portability

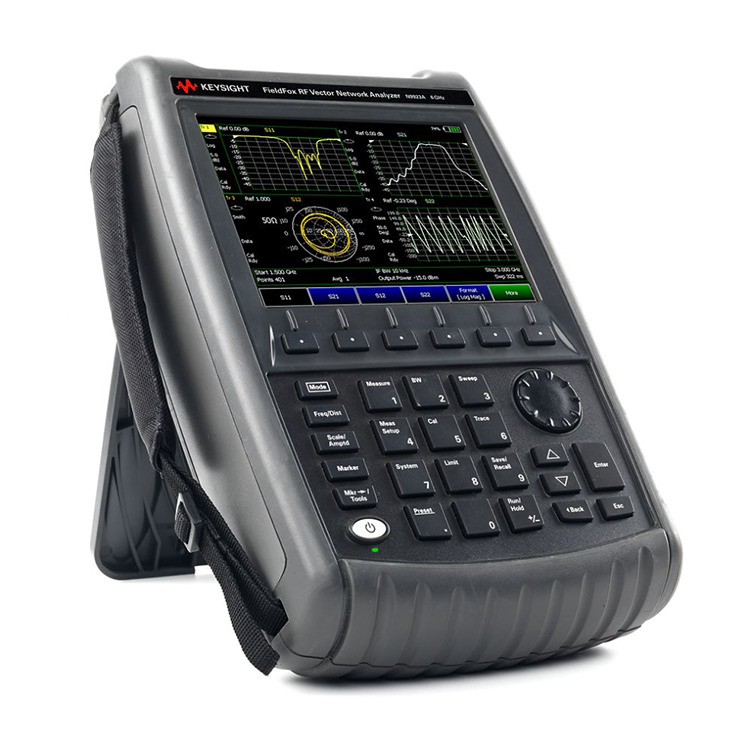

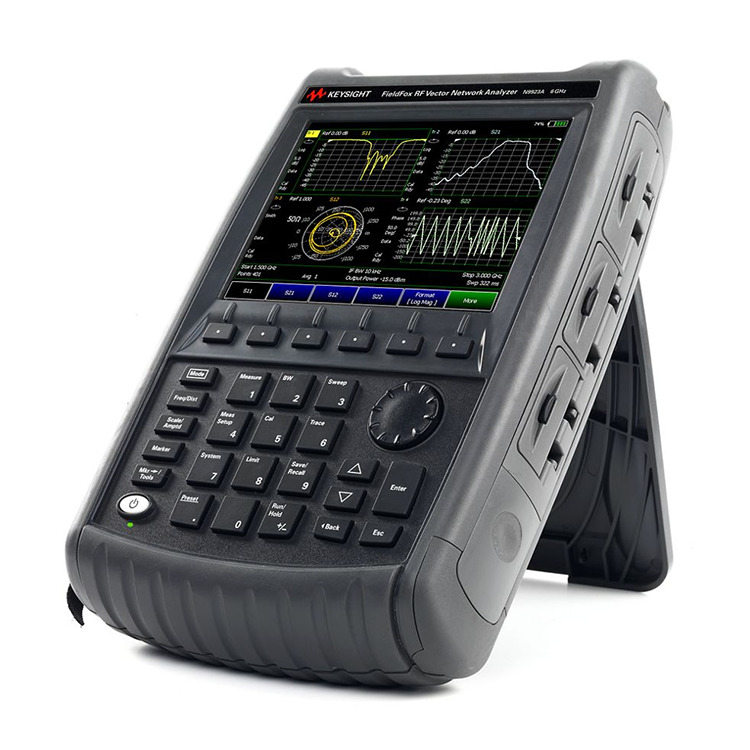

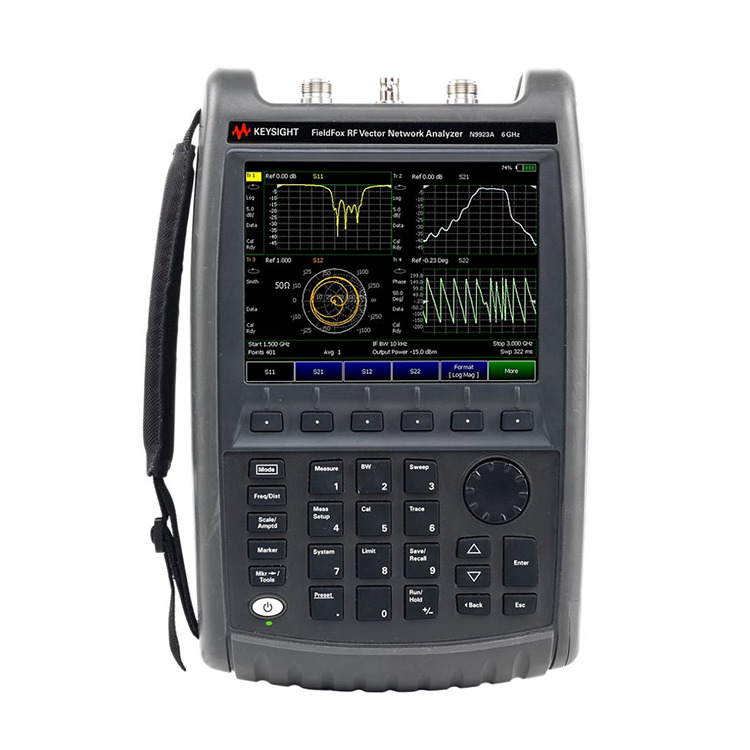

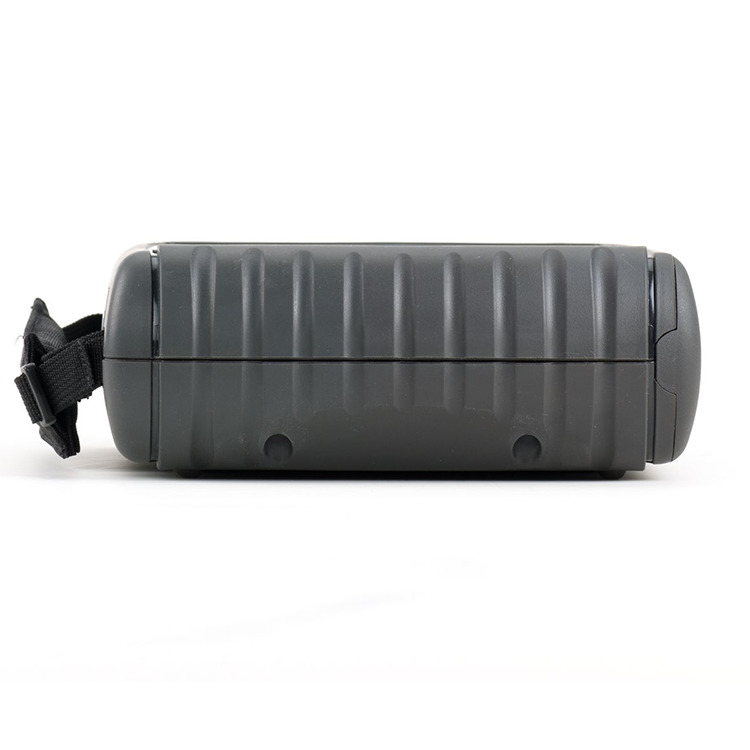

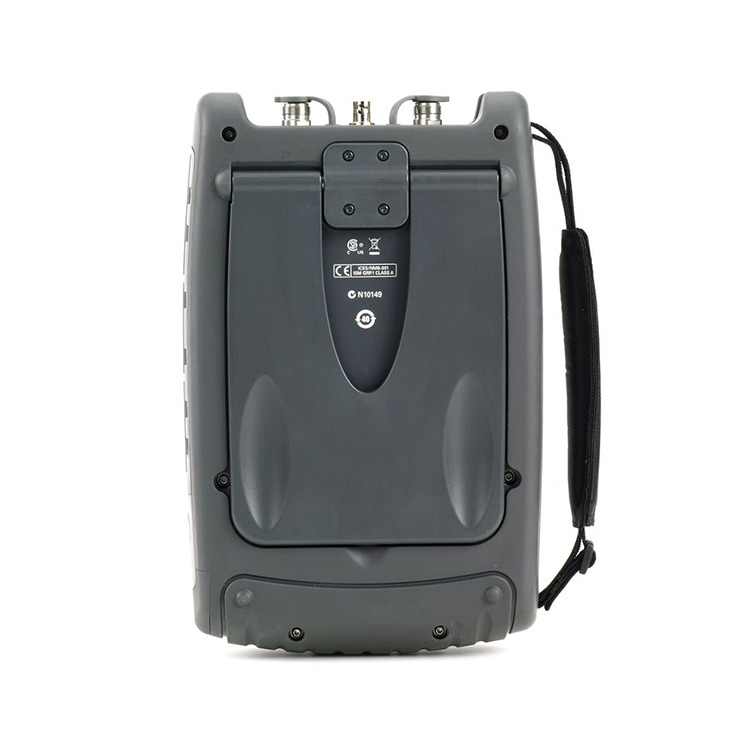

N9923A FieldFox Handheld Microwave Spectrum Analyzer are equipped to handle your toughest working environments during routine maintenance, in-depth troubleshooting, and anything in between. Choose the Keysight FieldFox configuration that best meets your needs.
Configure as a full, two-port VNA, time-domain reflectometer, vector voltmeter, cable and antenna analyzer, and more.
Measure all four S-parameters simultaneously with a single connection and up to 90 dB of dynamic range.
Perform accurate testing with QuickCal, full two-port unknown thru Cal, and Thru, Reflect, Line (TRL) calibration in the field.
Measure average and pulse power easily with a USB power sensor.
Carry the lightest handheld VNA at only 2.8 kg (6.2 lb.).
What's included:
AC/DC adapter
Localized power cord
Rechargeable Li-ion battery
Soft carrying case with backpack and shoulder straps
Quick Reference Guide
| Additional CAT/VNA Based Features: | QuickCal (Subset) |
| DTF/TDR Cable Measurements | Mixed-Mode S-Parameters |
| Vector Voltmeter | Additional SA Based Features: |
| Built-In Power Meter | Applications: |
| S-Parameters | Distance-To-Fault |
| Cable Trimming | Return Loss |
| Insertion Loss/Gain | Power Measurements |
| Best Speed at 201 Point, 1 Sweep: | 240 ms |
| Cable and Antenna Analyzer: | Yes - Optional |
| Components: | Cables |
| Antennas | Amplifiers |
| Filters | 75 Ohm CATV Devices |
| Dynamic Range: | 100 dB |
| Instrument Type: | Vector Network Analyzer |
| Maximum Frequency: | 4 or 6 GHz |
| Minimum Frequency: | 2 MHz |
| Number of Built-In Ports: | 2 ports |
| Output Power: | Up to 5 dBm |
| Spectrum Analyzer: | No |
| System Features: | GPS Receiver - External Only |
| Remote Control Capability | Built-In DC Source |
| Type: | Handheld |
| Trace Noise: | 0.008 dB rms |
| Vector Network Analyzer: | Yes - Standard |
