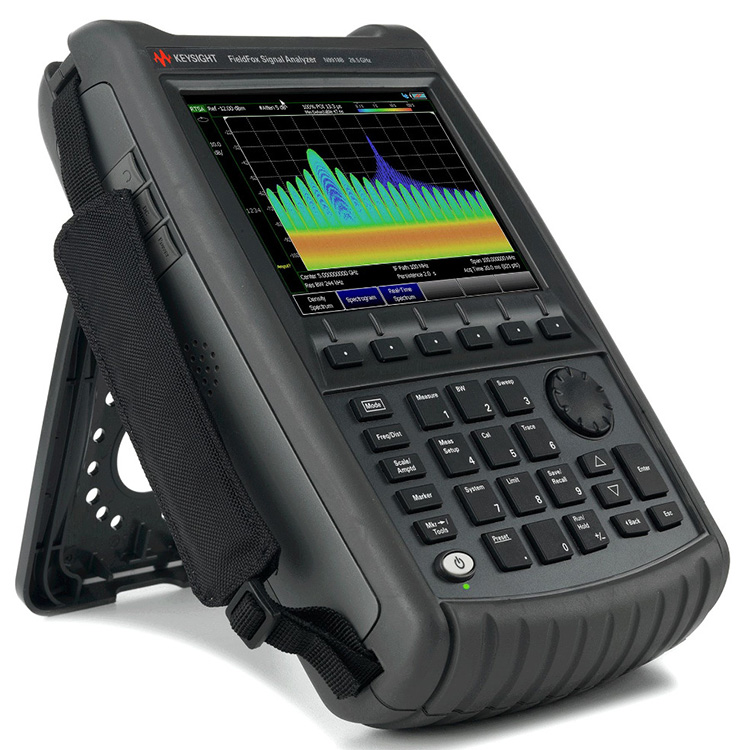

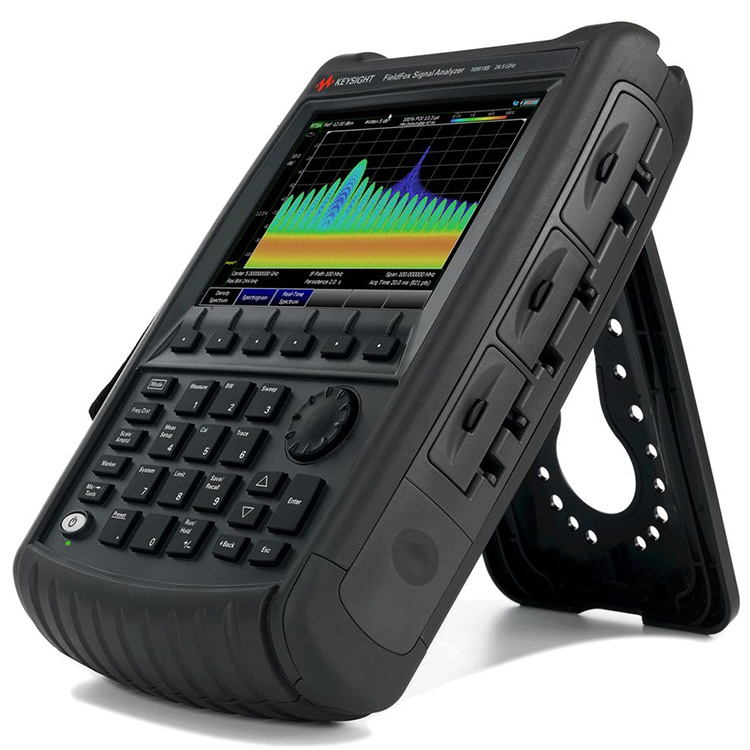

You are welcomed to come to our factory to buy the latest selling, low price, and high-quality N9918B FieldFox Handheld Microwave Spectrum Analyzer. A lightweight, durable cable and antenna analyzer, spectrum analyzer, network analyzer, and more.
Never Sacrifice Capability or Portability
You are welcomed to come to our factory to buy the latest selling, low price, and high-quality N9918B FieldFox Handheld Microwave Spectrum Analyzer. Keysight's FieldFox portable analyzers are equipped to handle your toughest working environments during routine maintenance, in-depth troubleshooting, and anything in between. Choose the Keysight FieldFox configuration that best meets your needs.
Standard model includes cable and antenna analyzer (CAT).
Capture elusive signals with 120 MHz gap-free, real-time bandwidth.
Measure all four S-parameters simultaneously with 115 dB dynamic range.
Make accurate spectrum analyzer measurements (± 0.3 dB) without warmup.
Perform over-the-air measurements for 5G NR and LTE.
Use GPS/GNSS for geolocation and timestamping.
Carry one lightweight unit at 3.4 kg (7.4 lb).
What's included:
AC/DC adapter
Localized power cord
Rechargeable Li-ion battery
Soft carrying case with backpack and shoulder straps
Quick Reference Guide
| Additional CAT/VNA Based Features: |
Mixed-Mode S-Parameters DTF/TDR Cable Measurements Vector Voltmeter |
| Additional SA Based Features: |
Real-Time Spectrum Analysis Noise Figure Measurements Over-The-Air Measurements Built-In Power Meter Extended Range Transmission Analysis (ERTA) |
| Applications: |
AM/FM Tune and Listen Cable and Antenna Analysis Field Strength Measurement SCPI Code Compatibility Spectrogram Stimulus Response 89600 VSA Software Over-The-Air LTE FDD and 5GTF 5G NR |
| Bandwidth: | 110 MHz |
| Bandwidth Options: |
10 MHz 40 MHz 120 MHz |
| Best Speed at 1001 Point, 1 Sweep: | 171 us/pt |
| Cable and Antenna Analyzer: | Yes - Standard |
| DANL @1 GHz: | -163 dBm |
| Form Factor: | n/a |
| Instrument Type: | Combination Analyzer |
| Maximum Analysis Bandwidth: | 120 MHz |
| Maximum Frequency: | 26.5 GHz |
| Maximum Real-Time Bandwidth: | 120 MHz |
| Minimum Frequency: | 30 kHz |
| Number of Built-In Ports: | 2 ports |
| Output Power: | 8 dBm |
| Overall Amplitude Accuracy: | ±0.2 dB |
| Phase Noise @1 GHz (1 MHz offset): | -124 dBc/Hz |
| Phase Noise @1 GHz (10 kHz offset): | -117 dBc/Hz |
| Phase Noise @1 GHz (30 kHz offset): | -115 dBc/Hz |
| Power Measurement Using USB Sensor: |
Frequency-Offset CW or Swept-Frequency RF Pulse Test with Peak Sensor |
| SA Start Frequency: | 5 kHz |
| Spectrum Analyzer: | Yes - Optional |
| Standard Attenuator Range: | 40 dB |
| Standard Attenuator Step: | 5 dB |
| System Dynamic Range: | > 114 dB |
| System Features: |
GPS Receiver - Internal Only Remote Control Capability Built-In DC Source |
| TOI @1 GHz (3rd Order Intercept): | +11 dBm |
| Trace Noise: | 0.0008 dB rms |
| Type: | Handheld |
| Vector Network Analyzer: | Yes - Optional |
