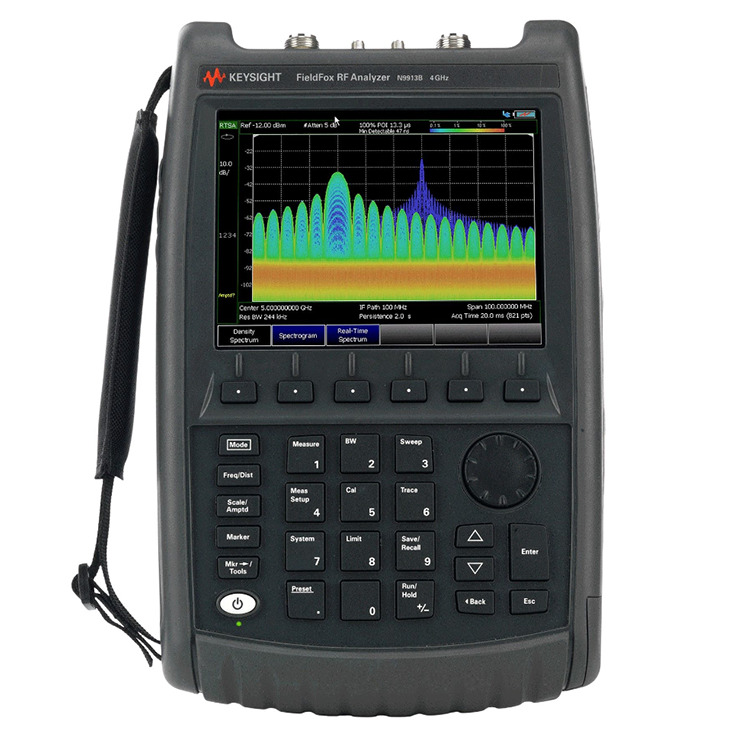

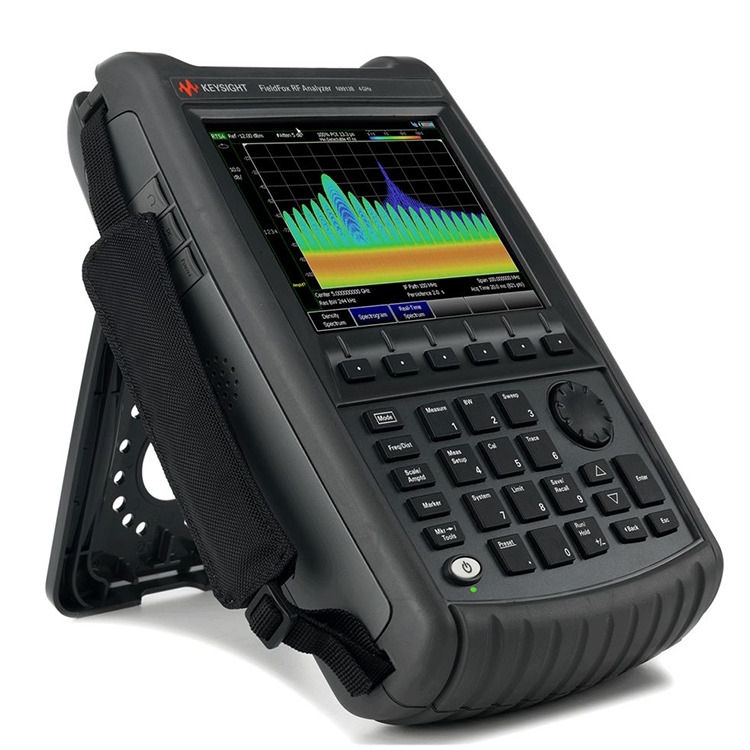

As the professional manufacturer, we would like to provide you N9913B FieldFox Handheld Microwave Spectrum Analyzer. And we will offer you the best after-sale service and timely delivery. Perform over-the-air measurements for 5G NR and LTE. Use GPS/GNSS for geolocation and timestamping.
Never Sacrifice Capability or Portability

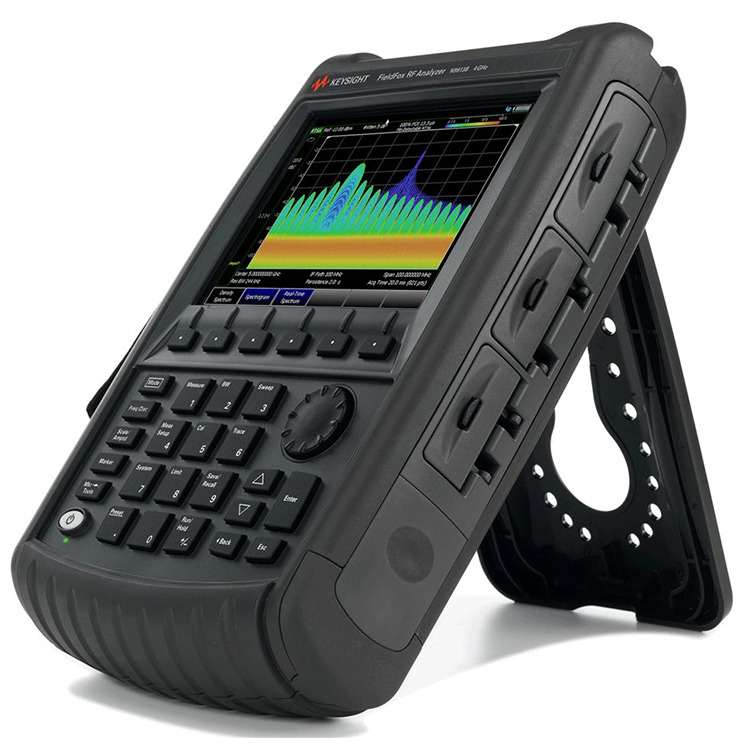

N9913B FieldFox Handheld Microwave Spectrum Analyzer are equipped to handle your toughest working environments during routine maintenance, in-depth troubleshooting, and anything in between. Choose the Keysight FieldFox configuration that best meets your needs.
Standard model includes cable and antenna analyzer (CAT).
Capture elusive signals with 120 MHz gap-free, real-time bandwidth.
Measure all four S-parameters simultaneously with 115 dB dynamic range.
Make accurate spectrum analyzer measurements (± 0.3 dB) without warmup.
Perform over-the-air measurements for 5G NR and LTE.
Use GPS/GNSS for geolocation and timestamping.
Carry one lightweight unit at 3.4 kg (7.4 lb).
What's included:
AC/DC adapter
Localized power cord
Rechargeable Li-ion battery
Soft carrying case with backpack and shoulder straps
Quick Reference Guide
| Additional CAT/VNA Based Features: | Mixed-Mode S-Parameters |
| DTF/TDR Cable Measurements | Vector Voltmeter |
| Additional SA Based Features: | Real-Time Spectrum Analysis |
| Noise Figure Measurements | Over-The-Air Measurements |
| Built-In Power Meter | Extended Range Transmission Analysis (ERTA) |
| Applications: | AM/FM Tune and Listen |
| Cable and Antenna Analysis | Field Strength Measurement |
| SCPI Code Compatibility | Spectrogram |
| Stimulus Response | 89600 VSA Software |
| Over-The-Air LTE FDD and 5GTF | 5G NR |
| Bandwidth Options: | 10 MHz |
| 40 MHz | 120 MHz |
| Best Speed at 1001 Point, 1 Sweep: | 171 us/pt |
| Cable and Antenna Analyzer: | Yes - Standard |
| DANL @1 GHz: | -163 dBm |
| Instrument Type: | Combination Analyzer |
| Maximum Analysis Bandwidth: | 120 MHz |
| Maximum Frequency: | 4 GHz |
| Maximum Real-Time Bandwidth: | 120 MHz |
| Minimum Frequency: | 30 kHz |
| Number of Built-In Ports: | 2 ports |
| Output Power: | Up to 1 dBm |
| Overall Amplitude Accuracy: | ±0.2 dB |
| Phase Noise @1 GHz (1 MHz offset): | -124 dBc/Hz |
| Phase Noise @1 GHz (10 kHz offset): | -117 dBc/Hz |
| Phase Noise @1 GHz (30 kHz offset): | -115 dBc/Hz |
| Power Measurement Using USB Sensor: | Frequency-Offset |
| CW or Swept-Frequency | RF Pulse Test with Peak Sensor |
| SA Start Frequency: | 5 kHz |
| Spectrum Analyzer: | Yes - Optional |
| Standard Attenuator Range: | 40 dB |
| Standard Attenuator Step: | 5 dB |
| System Dynamic Range: | > 114 dB |
| System Features: | GPS Receiver - Internal Only |
| Remote Control Capability | Built-In DC Source |
| Type: | Handheld |
| TOI @1 GHz (3rd Order Intercept): | +11 dBm |
| Trace Noise: | 0.0008 dB rms |
| Vector Network Analyzer: | Yes - Optional |
