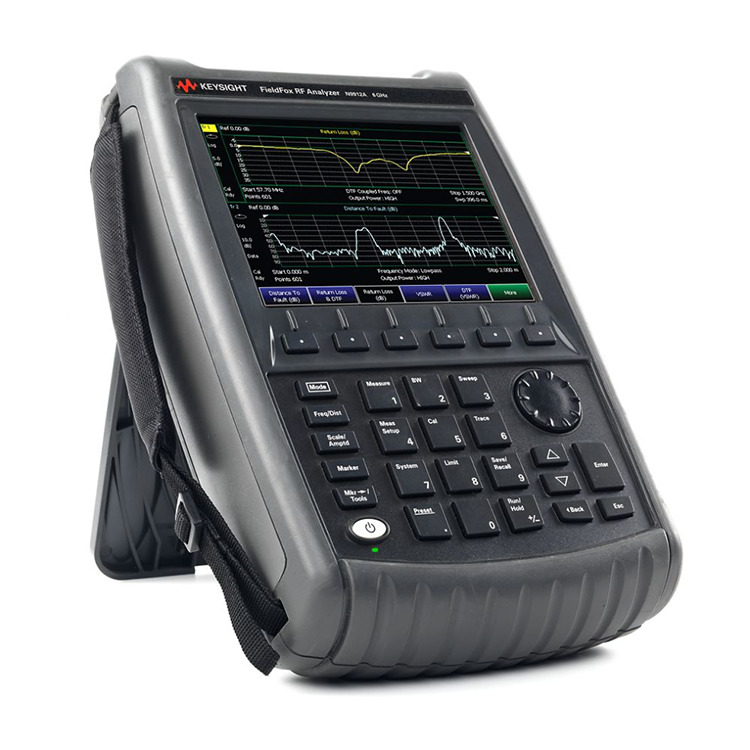

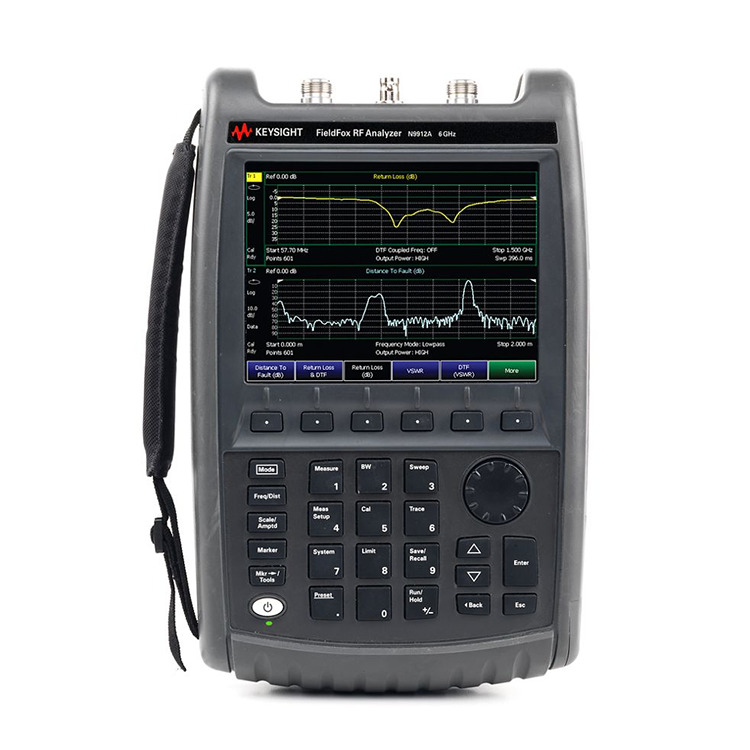

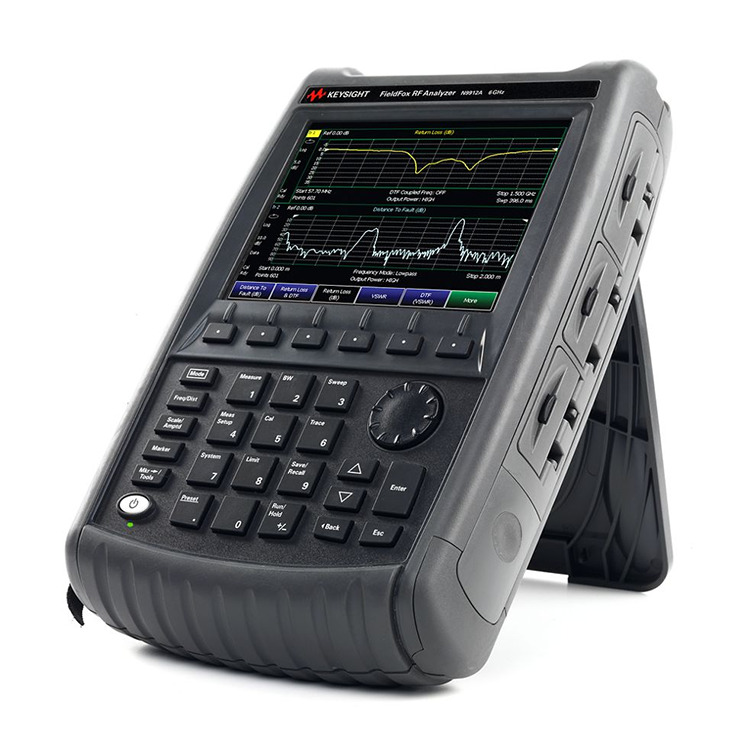

You can rest assured to buy customized N9912A FieldFox Handheld Microwave Spectrum Analyzer from us. Standard model includes cable and antenna analyzer (CAT). We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time!
Never Sacrifice Capability or Portability
N9912A FieldFox Handheld Microwave Spectrum Analyzer are equipped to handle your toughest working environments during routine maintenance, in-depth troubleshooting, and anything in between. Choose the Keysight FieldFox configuration that best meets your needs.
What's included:
AC/DC adapter
Rechargeable Li-ion battery
Soft carrying case with backpack and shoulder strap
Standard model includes cable and antenna analyzer (CAT)
EU customers only:
Contact Keysight Authorized Distributors for quotation and ordering. This model is no longer available directly from Keysight due to lack of compliance with EU RoHS 2011/65/EU.
| Additional CAT/VNA Based Features: | QuickCal (Subset) |
| DTF/TDR Cable Measurements | Mixed-Mode S-Parameters |
| Vector Voltmeter | Additional SA Based Features: |
| Built-In Power Meter | Applications: |
| AM/FM Tune and Listen | Cable and Antenna Analysis |
| Field Strength Measurement | Spectrogram |
| Stimulus Response | Bandwidth Options: |
| 10 MHz | Cable and Antenna Analyzer: |
| Yes - Standard | DANL @1 GHz: |
| -148 dBm | Frequency: |
| 4 or 6 GHz | Instrument Type: |
| Combination Analyzer | Maximum Analysis Bandwidth: |
| 10 MHZ | Maximum Frequency: |
| 4 or 6 GHz | Minimum Frequency: |
| 2 MHz | Number of Built-In Ports: |
| 2 ports | Output Power: |
| Up to 8 dBm | Overall Amplitude Accuracy: |
| ±0.35 dB | Phase Noise @1 GHz (1 MHz offset): |
| -115 dBc/Hz | Phase Noise @1 GHz (10 kHz offset): |
| -88 dBc/Hz | Phase Noise @1 GHz (30 kHz offset): |
| -89 dBc/Hz | Power Measurement Using USB Sensor: |
| Frequency-Offset | CW or Swept-Frequency |
| RF Pulse Test with Peak Sensor | SA Start Frequency: |
| 5 kHz | Spectrum Analyzer: |
| Yes - Optional | Standard Attenuator Range: |
| 31 dB | Standard Attenuator Step: |
| 1 dB | System Dynamic Range: |
| 72 dB | System Features: |
| GPS Receiver - External Only | Remote Control Capability |
| Type: | Handheld |
| TOI @1 GHz (3rd Order Intercept): | +18 dBm |
| Vector Network Analyzer: | Yes - Optional |
