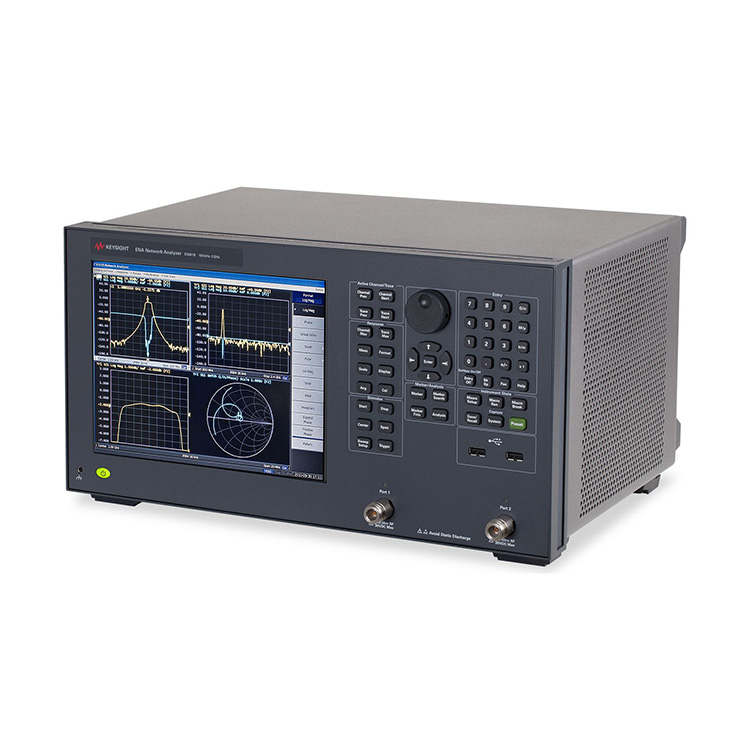

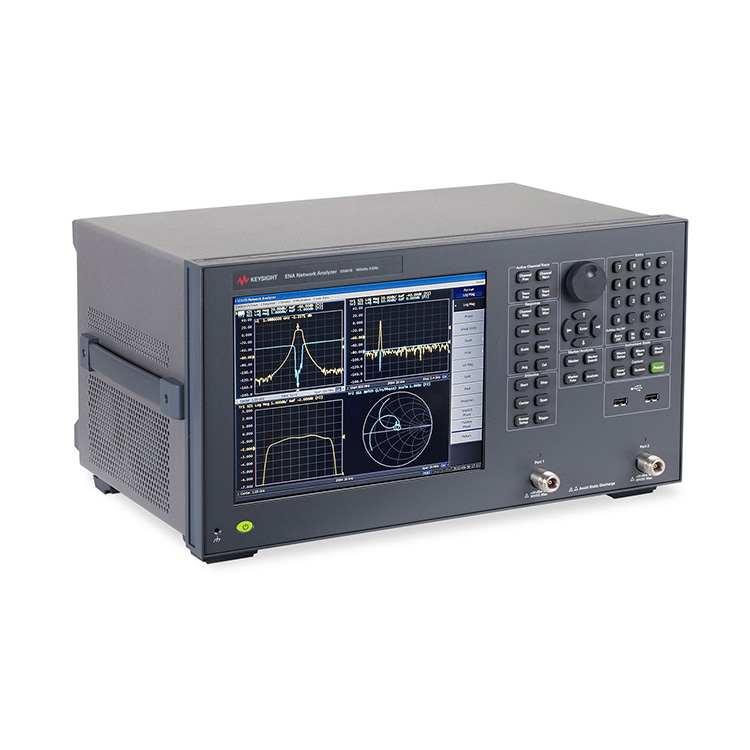

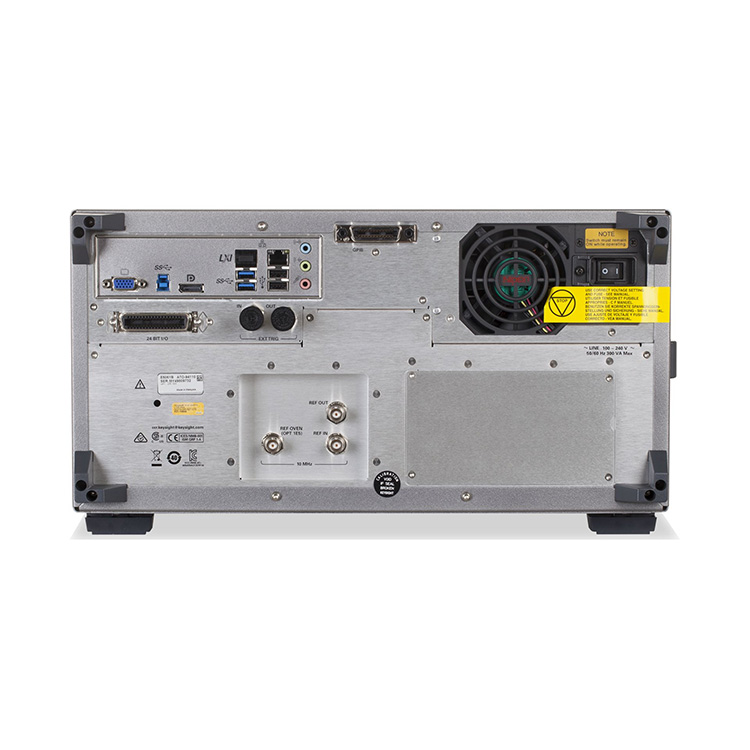

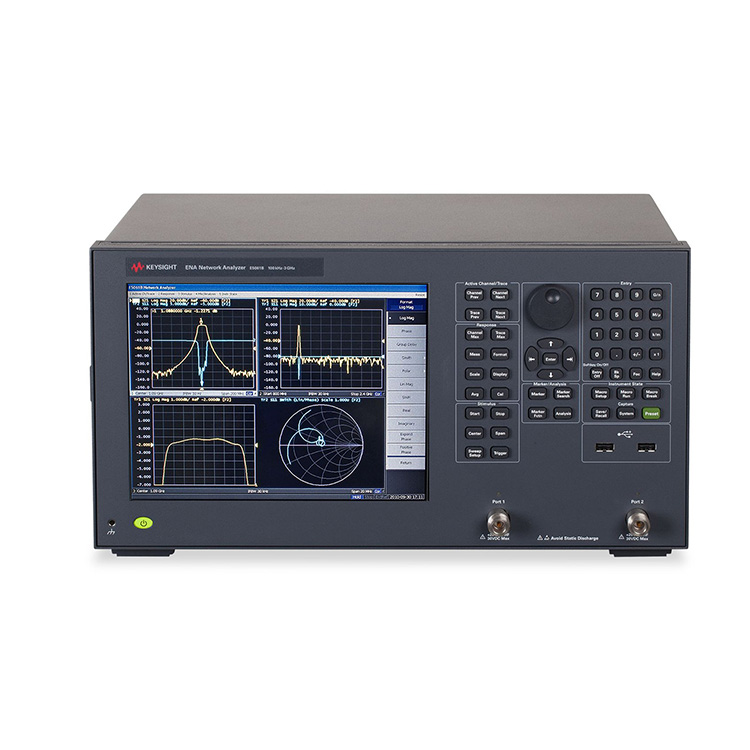

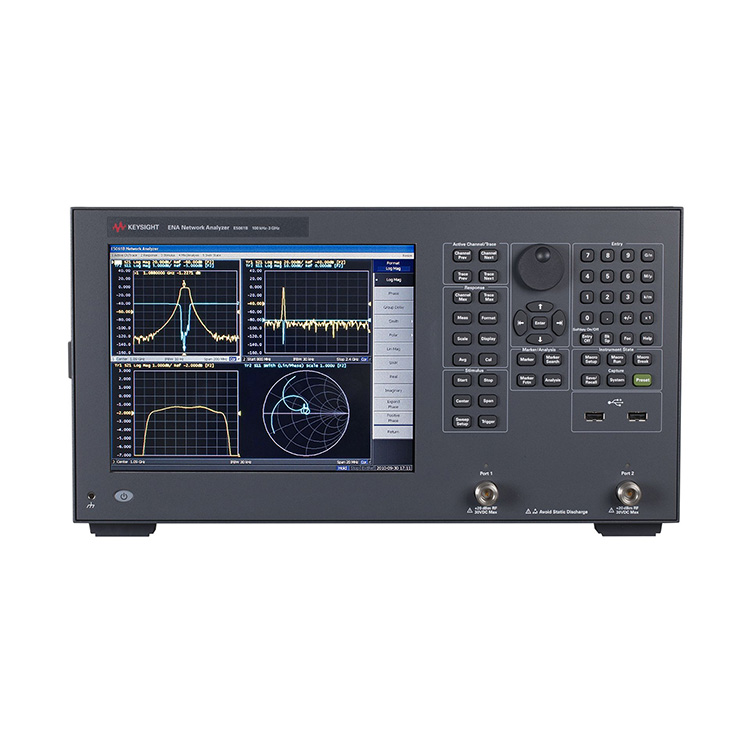

As the professional manufacturer, we would like to provide you high quality E5061B Impedance Analyzers.The Keysight E5061B addresses a broad range of measurement needs of electronic components and circuits from low to high frequencies.
As the professional manufacturer, we would like to provide you high quality E5061B Impedance Analyzers. Advanced Measurement Capabilities in a Compact Box
The Keysight E5061B addresses a broad range of measurement needs of electronic components and circuits from low to high frequencies. The E5061B is the ideal solution for applications in industries such as wireless communications, aerospace and defense, computer, medical, automotive, CATV, plus many more.
| Applications: |
S-Parameters Distance-To-Fault Return Loss Insertion Loss/Gain LF Circuits (5 Hz) |
| Best Speed at 201 Point, 1 Sweep: | 9 ms |
| Components: |
Cables Amplifiers Resonators DC-DC Converters/PDNs Antenna/Coil/RFIDs Filters LCR Components |
| Dynamic Range: | 120 dB |
| Form Factor: | Benchtop |
| Instrument Type: | Benchtop |
| Maximum Frequency: | 3 GHz |
| Number of Built-In Ports: | 2 ports |
| Number of Internal Sources: | 1 source |
| Output Power: | 10 dBm |
| Trace Noise: | 0.005 dB rms |
| Type: | Benchtop |
| VNA Series: | ENA |
| VNA Type: | Benchtop |
