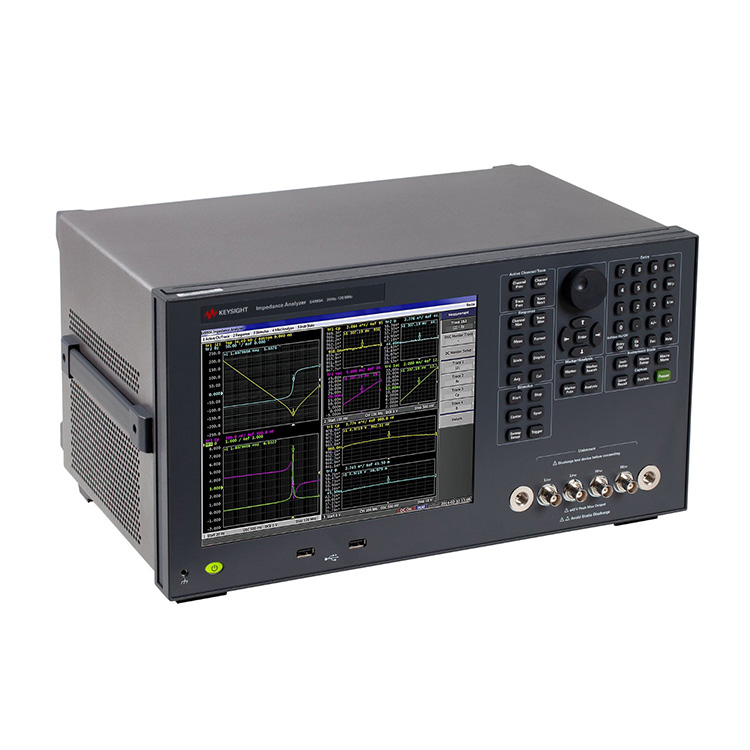

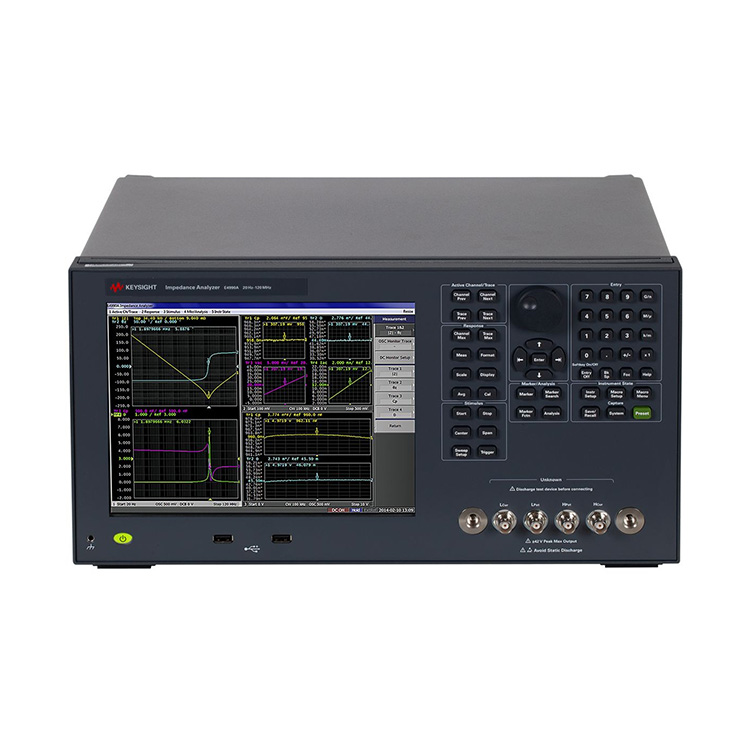

As the professional manufacturer, we would like to provide you E4990A Impedance Analyzers. Enhanced measurement speed option (option 001, for 10M/20M/30M/50M options only).
As the professional manufacturer, we would like to provide you E4990A Impedance Analyzers. Whether your application is in R&D, production, quality assurance, or incoming inspection, we take pride in contributing to your success. We strive to deliver complete solutions to meet your needs, from impedance analyzers to a wide variety of test accessories. Achieve success with Keysight's impedance measurement solutions.
Five upgradable frequency options; 20 Hz to 10/20/30/50/120 MHz
Basic impedance measurement accuracy of ±0.08% (±0.045%, typ)
25 mΩ to 40 MΩ wide impedance measurement range (10% measurement accuracy range)
Measurement parameters: |Z|, |Y|, θ, R, X, G, B, L, C, D, Q, Complex Z, Complex Y, Vac, Iac, Vdc, Idc
Built-in DC bias range: 0 V to ±40 V, 0 A to ±100 mA
Enhanced measurement speed option (option 001, for 10M/20M/30M/50M options only)
4-channel and 4-trace on 10.4-inch color LCD with touch screen
Data analysis function: Equivalent circuit analysis, limit line test
| Basic Accuracy: | 0.08% (typical ±0.045%) |
| DC Bias: | 0V to ±40 V |
| Frequency: | 20 Hz to 10/20/30/50/120 MHz |
| Maximum Frequency: | 120 MHz |
| Measurement: | Four Terminal Pair (4TP) |
| Measurement Range(Accuracy < 10%): | 25 mΩ to 40 MΩ |
| Other Features: | Equivalent Circuit analysis, limit line test, etc. |
| Special features: | n/a |
| Speed: | 3.5 msec |
| Target DUT: |
General Purpose device Material |
| Type: | Impedance Analyzer |
