As the professional manufacturer, we would like to provide you high quality E4982A LCR Meters. Four frequency options: 1 MHz to 300 MHz / 500 MHz / 1 GHz / 3 GHz, upgradeable.
New Standard for High-Speed Component Tests

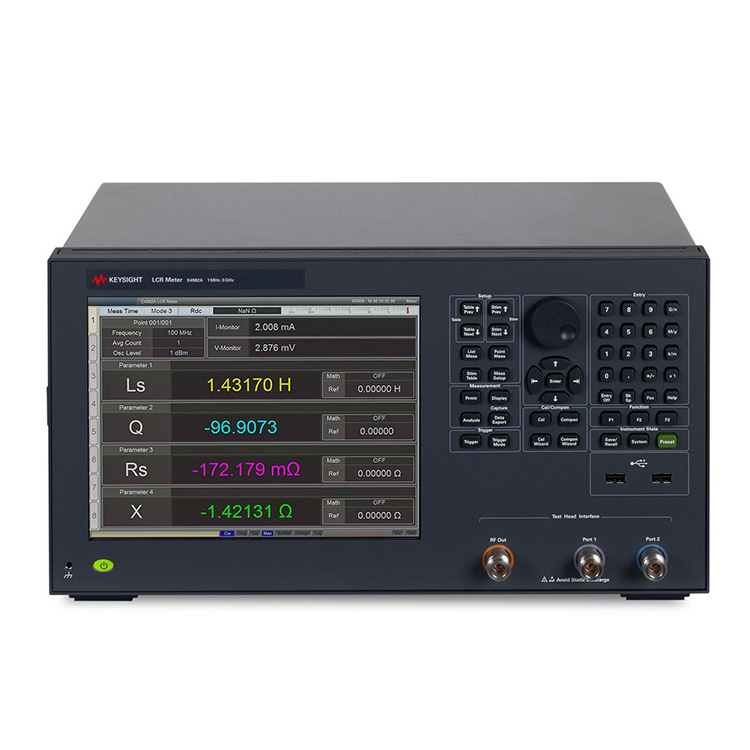

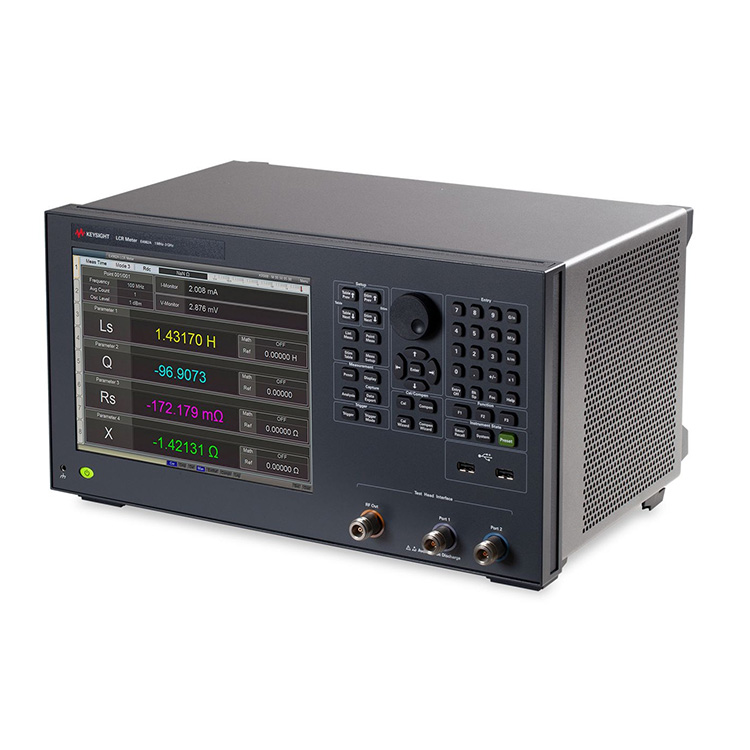

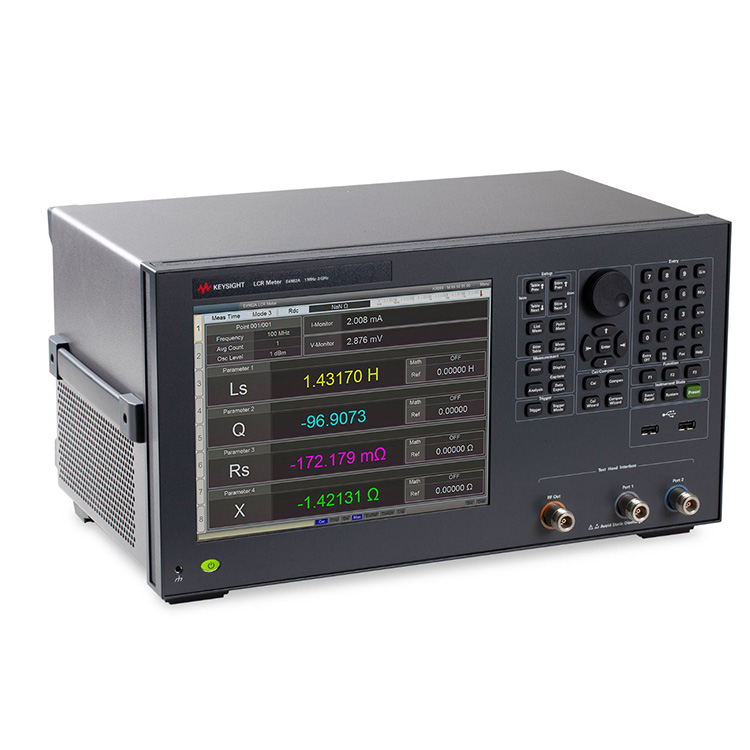

As the professional manufacturer, we would like to provide you high quality E4982A LCR Meters. Keysight E4982A LCR meter provides the best performance for the passive component manufacturing such as SMD inductors and EMI filters, where impedance testing at high frequencies is required. Not only for the manufacturing, E4982A can also be utilized for R&D, quality assurance with the powerful functions such as list measurements. By offering the unparalleled measurement speed and repeatability with excellent accuracy and impedance range, E4982A is the new standard for highspeed component tests.
Frequency
Four frequency options: 1 MHz to 300 MHz / 500 MHz / 1 GHz / 3 GHz, upgradeable
Measurement Time
High-speed measurement: 0.9 ms (Mode 1), 2.1 ms (Mode 2), 3.7 ms (Mode 3)
Basic Accuracy And Impedance Range
0.8% basic accuracy with unparalleled measurement repeatability
Wide impedance measurements range from 140 mΩ to 4.8 kΩ
More Features
Compatible SCPI commands and Handler interface with the 4287A LCR meter
Small test head (the same size as 4287A)
List measurement
Versatile PC connectivity (GPIB, LAN, and USB)
| Basic Accuracy: | 0.8% |
| DC Bias: | none |
| Frequency: | 1 MHz to 300 MHz/500 MHz/1 GHz/3 GHz |
| Maximum Frequency: | 3 GHz |
| Measurement: | RF-IV method |
| Primary Applications: |
EMI filters Inductors LCR components |
| Speed: | 0.9 ms (Mode 1), 2.1 ms (Mode 2), 3.7 ms (Mode 3) |
| Target DUT: | General Purpose device |
| Type: | Benchtop |
