As the professional manufacturer, we would like to provide you high quality E4980AL LCR Meters. The E4980AL precision LCR meter is an industry-standard LCR meter that provides the best combination of accuracy, speed, and versatility for a wide range of component measurements. The frequency upgrades provide a solid investment option and asset utilization.

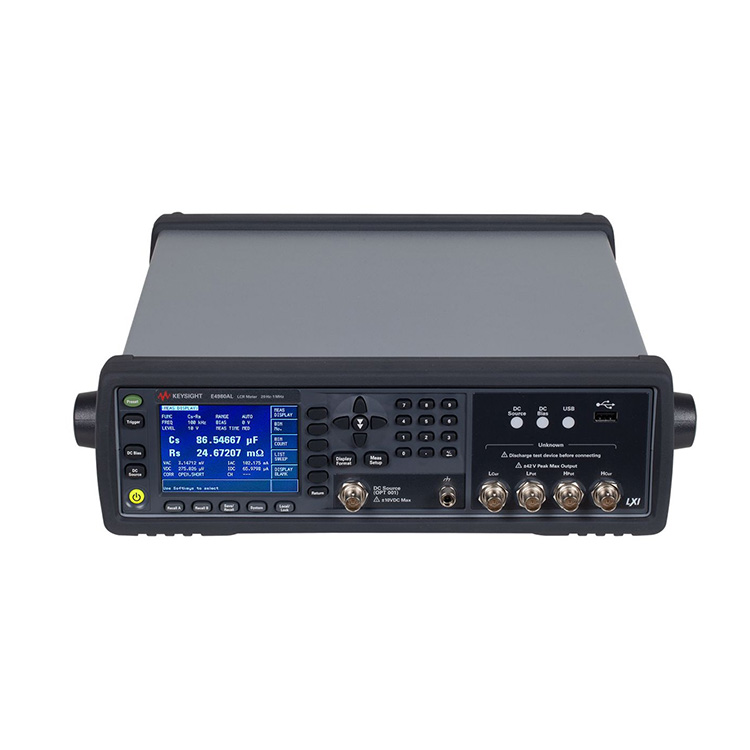

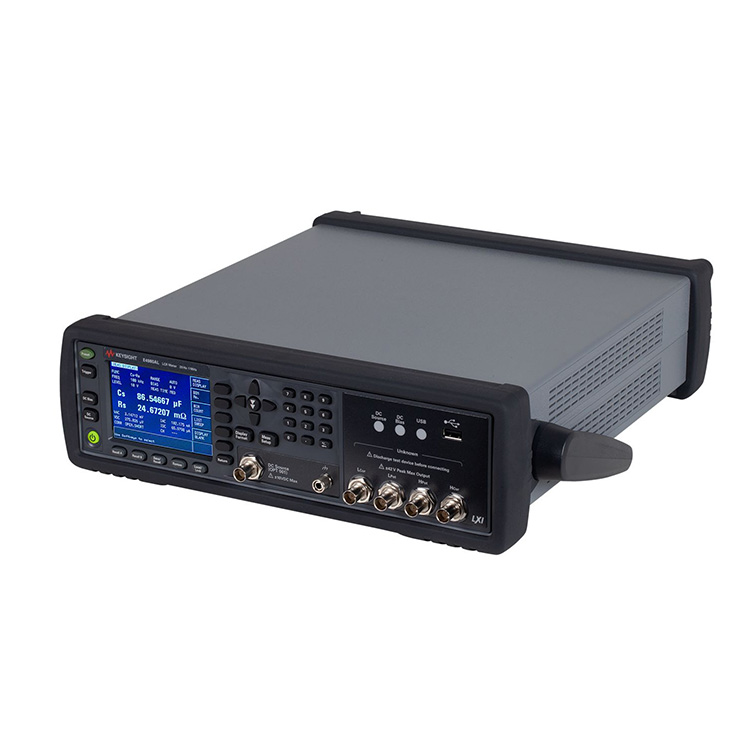

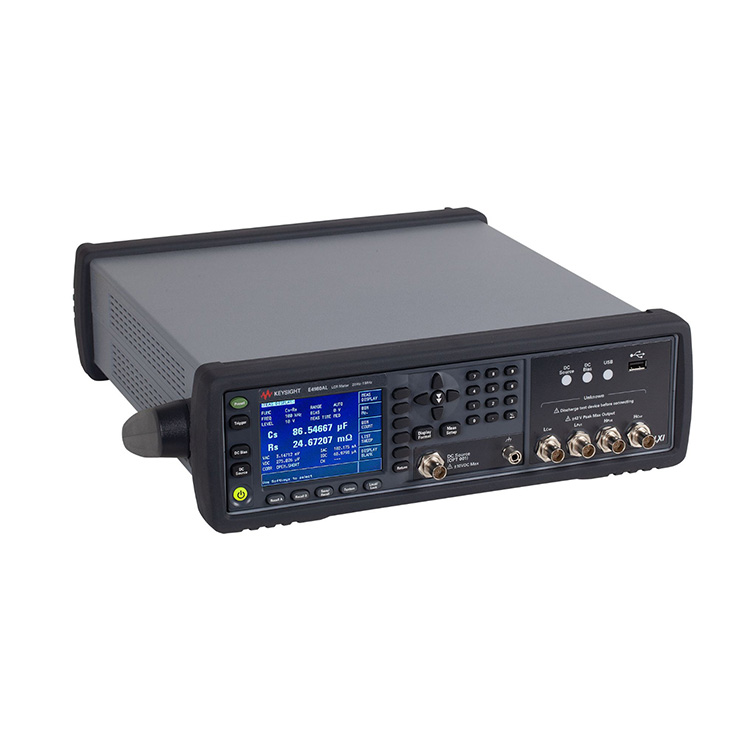

E4980AL LCR Meter up to 1MHz
Frequency
20 Hz to 300 kHz/500 kHz/1 MHz, with 4-digit resolution in any range
Basic Accuracy
0.05% basic accuracy with superior measurement repeatability at low and high impedance
More Features
100 uV to 2 Vrms, 1 uA to 20 mA variable test signal
DC bias 1.5/2 V
Auto-level control
DC resistance
201 points list sweep

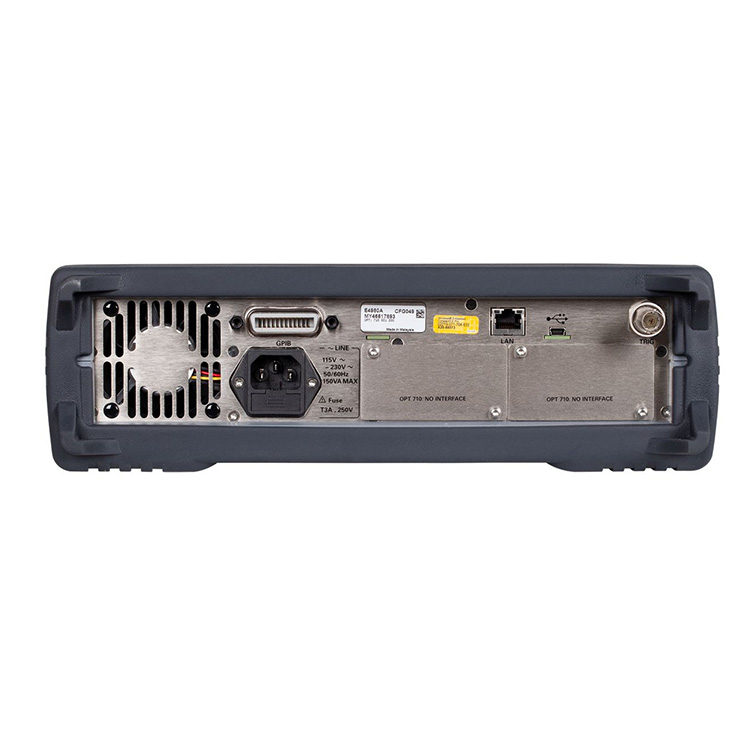

Versatile PC connectivity (LAN, USB, and GPIB)
Frequency Upgradability
As the professional manufacturer, we would like to provide you high quality E4980AL LCR Meters. The E4980AL precision LCR meter is an industry-standard LCR meter that provides the best combination of accuracy, speed, and versatility for a wide range of component measurements. The frequency upgrades provide a solid investment option and asset utilization.
Offering fast measurement speed and outstanding performance at both low and high impedance ranges, the E4980AL is the basic tool for general research and development and manufacturing tests of components and materials. LAN, USB, and GPIB PC connectivity enhance your design and test productivity. For materials measurements, the E4980AL with the N1500A-005/006 materials measurement suite provides ease-of-measurements, from setting-up fixtures to report generation.
Note: The E4980AL precision LCR meter is available from distribution partners around the world.
| Basic Accuracy: | 0.05% |
| DC Bias: | Yes (±1.5Vdc, ±2 Vdc) |
| Frequency: | 20 Hz to 300 kHz/500 kHz/1 MHz |
| Maximum Frequency: | 1 MHz |
| Measurements: | Four Terminal Pair (4TP) |
| Primary Applications: |
LCR components Materials measurement |
| Speed: | 12 msec |
| Target DUT: |
General Purpose device Material |
| Type: | Benchtop |
