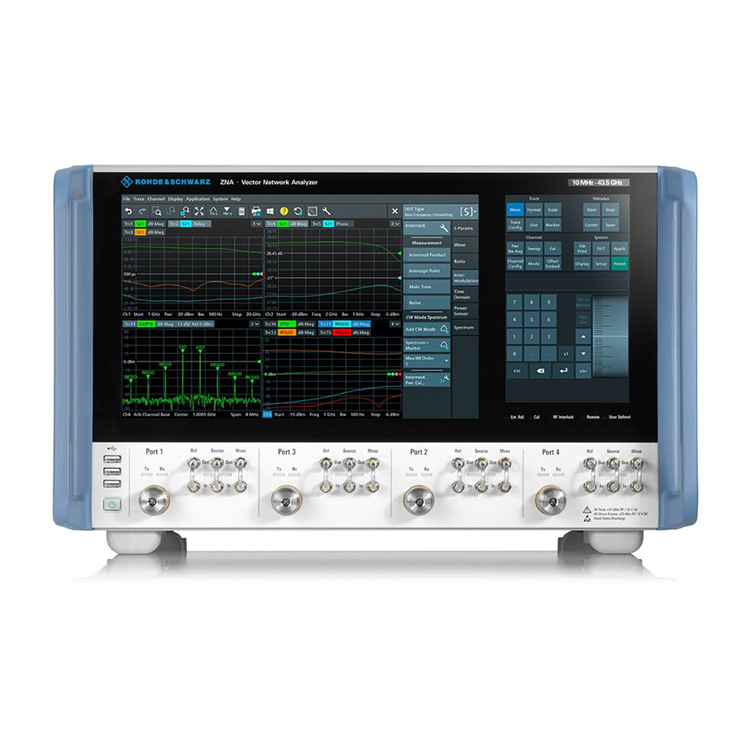

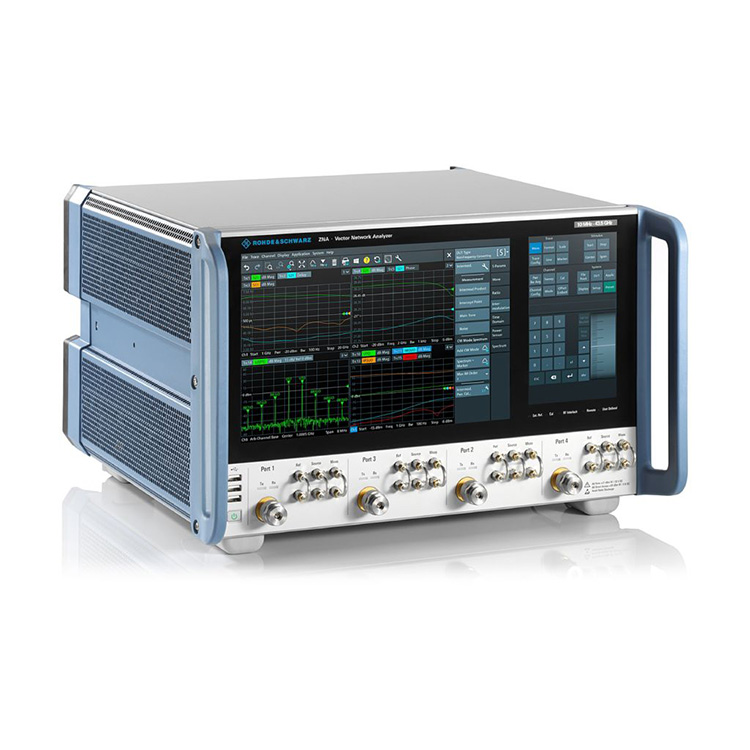

The following is the introduction of high quality R&S ZNA26 Vector Network Analyzers, hoping to help you better understand it. The R&S®ZNA vector network analyzers are the high-end series of the R&S VNA portfolio: excellent RF-performance is combined with a wide range of software features and a unique hardware concept.
| Models | Ports | Frequency | Connectors |
|
R&S®ZNA26 Order number 1332.4500.22 |
2 ports | 10 MHz to 26.5 GHz | 3.5 mm(m) |
|
R&S®ZNA26 Order number 1332.4500.26 |
4 ports | 10 MHz to 26.5 GHz | 3.5 mm(m) |
10 MHz to 26.5/43.5/50/67 GHz (R&S®ZNA26/43/50/67)
Two or four port models available
Excellent RF-performance
Up to four integrated sources
Unique and intuitive touch-only operation
High performance and fast speed for advanced measurement tasks
Precise measurements on active and passive components
Wide dynamic range to characterize even high-blocking devices under test
Excellent stability, low trace noise and outstanding raw system data for high reliability
High accuracy suitable also for metrology applications
Wide power sweep range
R&S®ZNA43 with four ports and direct channel access
Powerful and universal measurement system
Optional direct channel access for wide dynamic range, external test setups and system integration
Up to four internal phase-coherent sources for high flexibility and short sweep times
Up to two internal receiver LOs for fast mixer measurements with low trace noise
Up to eight independent receivers for reliable multi-channel phase measurements
Up to four internal pulse modulators and pulse generators
Optional source and receiver step attenuators for expanding the usable power range
Challenging measurements configured intuitively
Time domain analysis and extended features as eye diagram for signal integrity
Scalar mixer measurements and frequency converting measurements
Vector mixer measurements for advanced mixer measurements
Frequency converting measurements on mixers/converters without LO access
Spectrum analysis mode for an extensive analysis of the device under test
Real Time Measurement uncertainty calculation plus verification measurement (METAS VNA Tools)
Intuitive touch-based operation with sophisticated user interface
Two independent touchscreens for convenient operation
Display of user-selected content (e.g. SCPI commands) on smaller screen possible
Efficient operation with muli-touch gestures
Free configuration of channels, diagrams with drag-and-drop
DUT-centric approach that adapts to the user’s requirements and optimizes the settings
Extensive evaluation features for detailed analysis of measurement traces
Advanced measurement capabilities
Frequency extension up to 1.1 THz with the R&S®ZVA-Z and R&S®ZC converter families.
Different accessories for calibration, verification and different measurements
Mechanical calibration and verification kits
Automatic calibration units
Inline calibration units for in-situ refresh of calibration data
Test cables
Torque wrenches
Support of R&S®NRP power sensor family
Automatic calibration unit, power sensor and calibation mixer.
