You are welcomed to come to our factory to buy the latest selling, low price, and high-quality R&S FSVA3007 Signal and Spectrum Analyzer. We look forward to cooperating with you. Options for analog and digital signal analysis, including 5G NR.
| Models | Frequency range | Phase noise | Max. analysis band width |
|
R&S®FSVA3007 Order number 1330.5000.08 |
10 Hz - 7.5 GHz (2 Hz - 7.5 GHz with R&S®FSV3-B710 option) |
< –127 dBc (1 Hz) (f = 1 GHz, 10 kHz offset, option B710) |
400 MHz |
Frequency range from 2 Hz to 4, 7.5, 13.6, 30, 44, 50/54 GHz
Analysis bandwidth up to 1 GHz
SSB phase noise at 10 kHz offset (1 GHz): –127 dBc/Hz
GUI with multi-touch, SCPI recorder and event based actions
Options for analog and digital signal analysis, including 5G NR

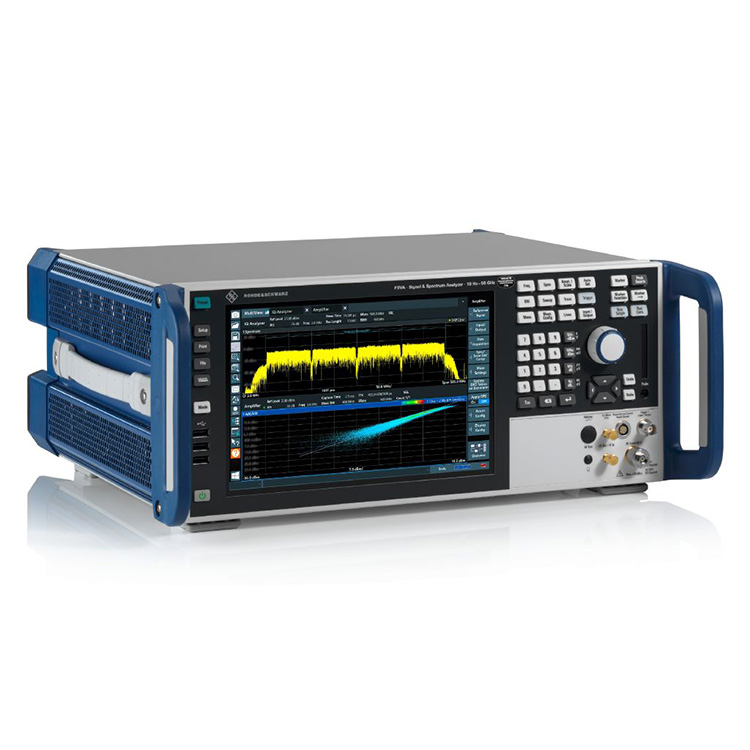

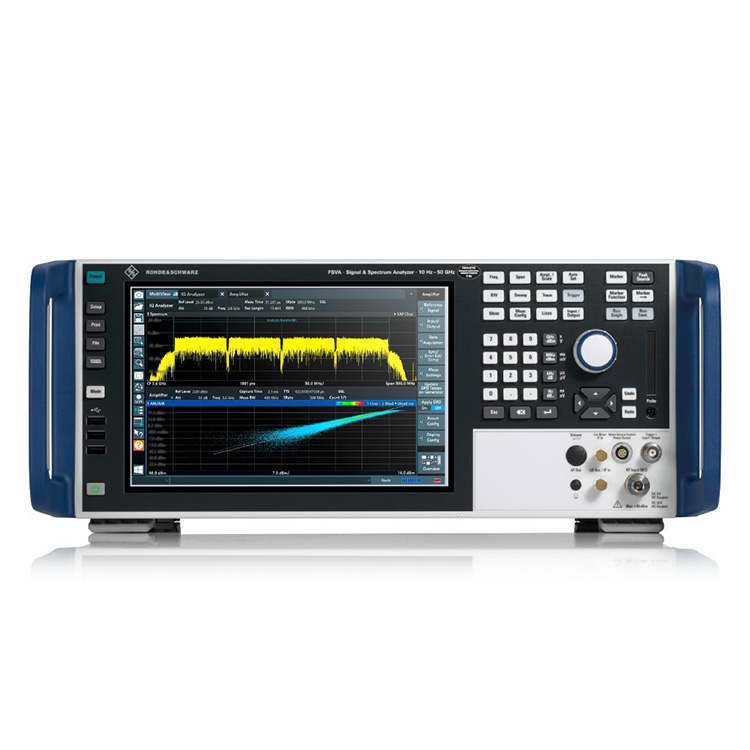

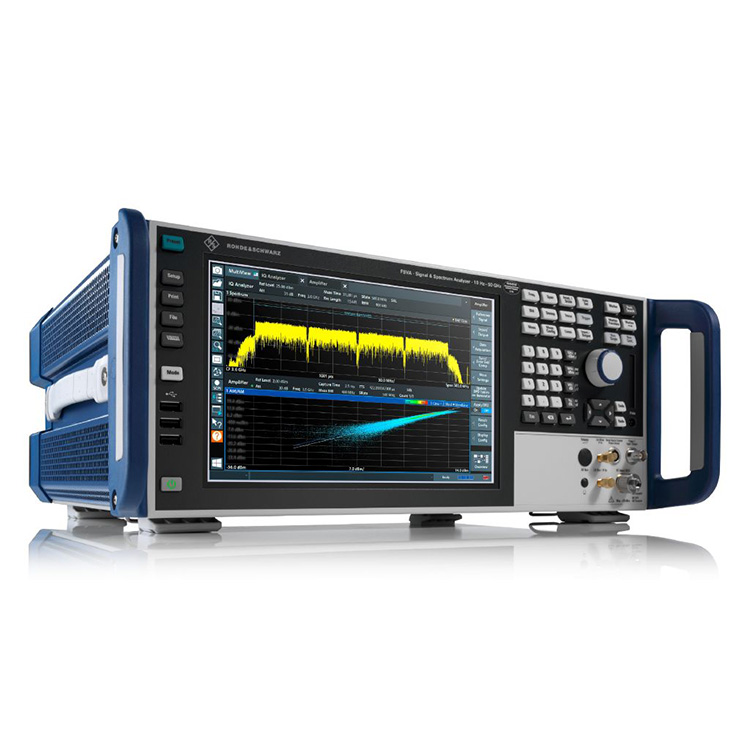

The R&S FSVA3007 Signal and Spectrum Analyzer is ideal for evaluating wireless communications signals in R&D, system testing, verification and production. With 400 MHz of analysis bandwidth, it can capture four neighboring 5G NR carriers at once. The dedicated options for 5G NR signal analysis enable EVM values better than 1% for a 100 MHz wide carrier at 28 GHz.
5G NR signal analysis
5G NR signal analysis - Analysis of a 5G NR signal with the R&S®FSV3-K144 (downlink) and R&S®FSV3-K145 (uplink) options
Up to 1 GHz analysis bandwidth, high dynamic range and low phase noise
Many measurement applications in the wireless, A&D and component industries require low phase noise, wide analysis bandwidth and high dynamic range. The R&S®FSVA3000 signal and spectrum analyzer is the perfect tool for the production and verification of wireless communications systems and their components and also for service and maintenance applications in the A&D market.
Captures ten 5G NR carriers at once
The maximum analysis bandwidth of 1 GHz makes it possible to simultaneously capture up to ten 5G NR carriers of 100 MHz bandwidth each.
The R&S®FSVA3000 excels with fast access to measurement results thanks to its simple and fast setup
The R&S®FSVA3000 features
Multitouch display
SCPI recorder for easy test program development
Event based actions for debugging rare DUT events
Smart signal generator control through direct setup access
R&S®FSVA3000 event based actions
Simple troubleshooting of rare DUT events: choose an event such as a limit line failure or a screenshot from touch-down menus.
Fast measurement speed for production
Automated production of components, modules and devices requires spectral measurements as well as signal demodulation. The R&S®FSVA3000 signal and spectrum analyzer performs even complex measurement scenarios in a minimum amount of time.
The enhanced computer power option provides a quad core CPU to accelerate digital signal demodulation. It also adds an internal PCIe 3.0 bus system for fastest transfer of measurement data. In cloud based test systems, the optional 10 Gbit/s LAN interface enables fast I/Q data transfer to the network.
ACLR measurement
FFT based ACLR measurements provide significant speed improvements over swept measurements. The R&S®FSVA3000 still has an excellent dynamic range.
