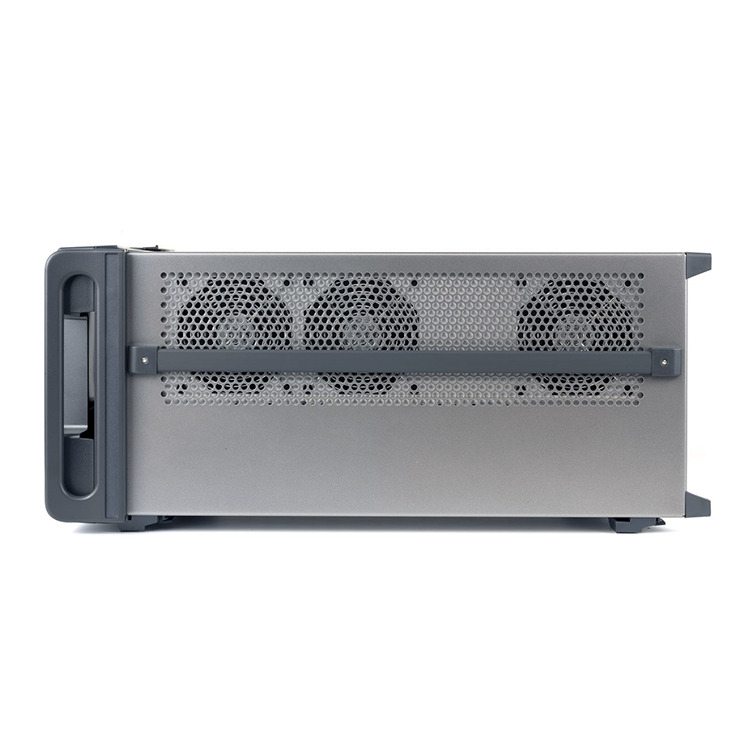

As the professional manufacturer, we would like to provide you N5244B PNA-X Network Analyzers. N5244B PNA-X Microwave Network Analyzer 10 MHz to 43.5 GHz, 2 and 4 ports, is an integrated and flexible test engine that can measure active devices such as amplifiers, mixers, and frequency converters.
Reach for Unrivaled Excellence
More than just a vector network analyzer, the PNA-X is the world’s most integrated and flexible microwave test engine for measuring active devices such as amplifiers, mixers, and frequency converters. The hardware includes two internal signal sources, a signal combiner, S-parameter and noise receivers, pulse modulators and generators, and a set of switches and RF access points. These hardware features provide a powerful core for a broad range of linear and nonlinear measurements, all with a single set of connections to your device under test.
Simplify your test system by replacing an entire rack of equipment with one PNA-X network analyzer.
Reduce test time with the widest range of single-connection measurement applications.
Accurately test linear and nonlinear device characterization using advanced error correction.
Choose from the industry's widest range of measurement applications for speed, accuracy, and ease of use in advanced RF test.
Accelerate insight into component behavior using a multitouch display and intuitive user interface.
N5244B PNA-X Network Analyzers Key performance data
High source output power of +13 dBm at 1 GHz to +11 dBm at 67 GHz
High dynamic range: 134 dB at 20 GHz at test port
Low trace noise: 0.002 dB rms at 1 kHz bandwidth
Low receiver noise floor
High receiver compression level
Fast measurement speed: 3.6 to 23 μsec/point
High stability: < 0.03 dB/°C
| Frequency Range | 900 Hz to 67 GHz |
| Trace Noise | 0.002 dB RMS |
| Built-In Ports | 2 or 4 |
| Best 201 Point Sweep Time | 5.5 to 9.7 ms |
| Maximum Frequency: | 43.5 GHz |
| Dynamic Range: | 127 dB @35 GHz |
| Output Power: | 12 dBm |
