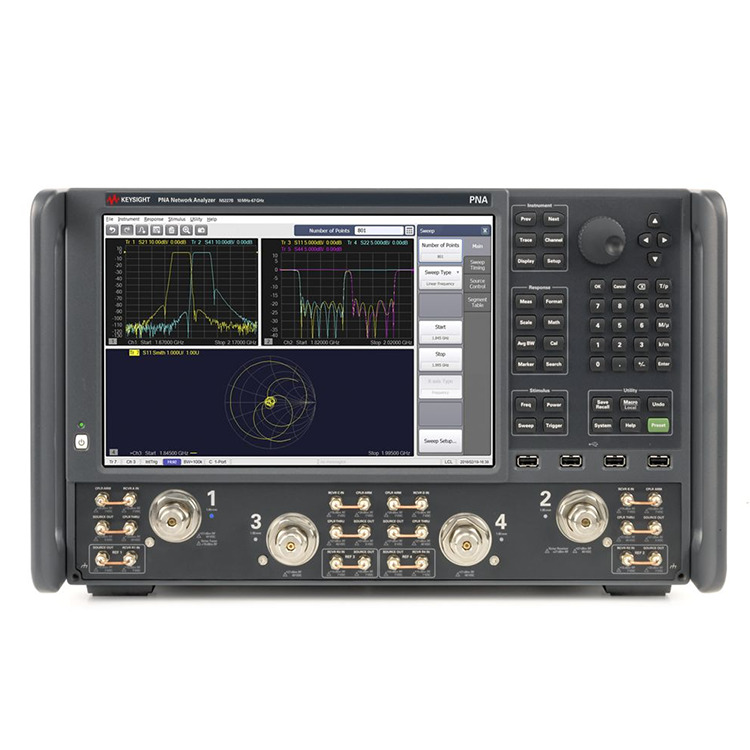

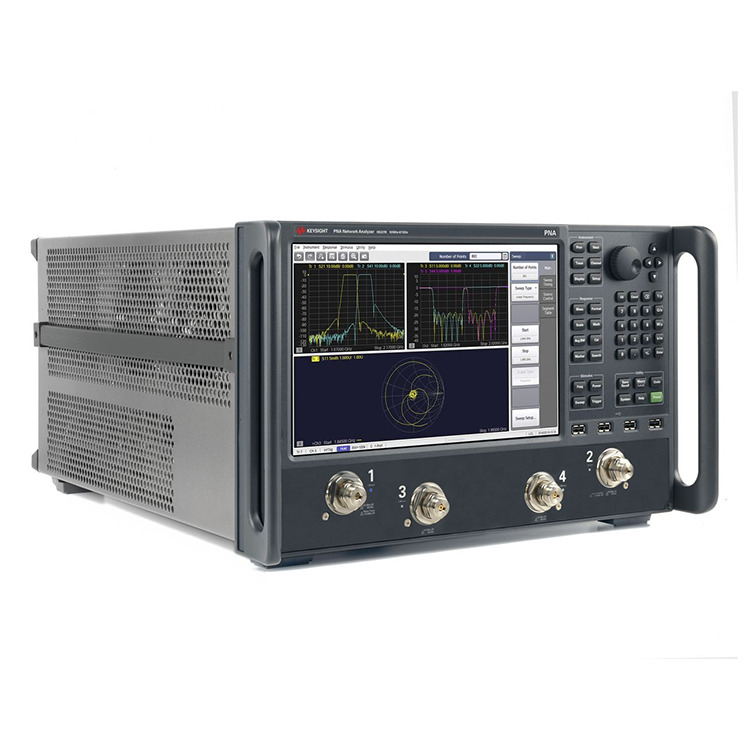

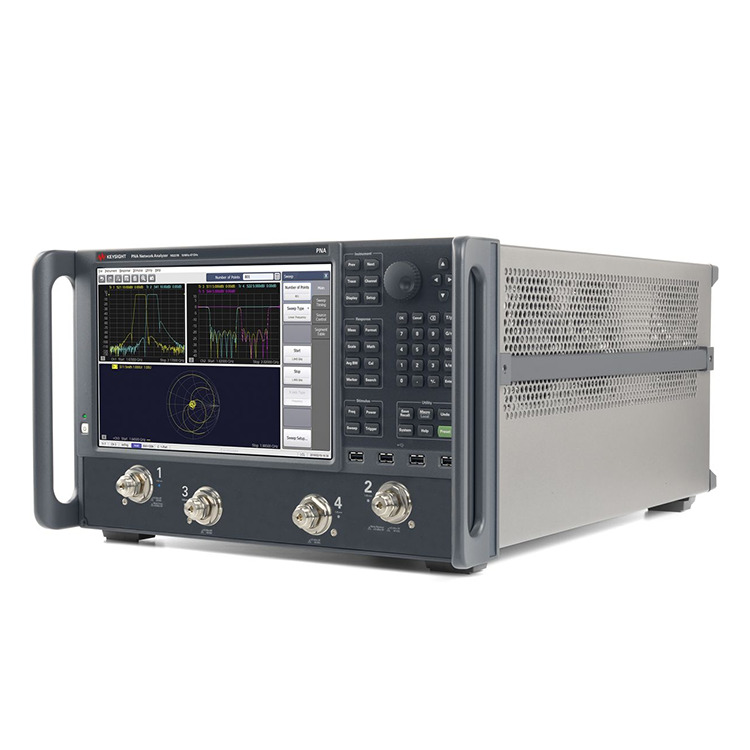

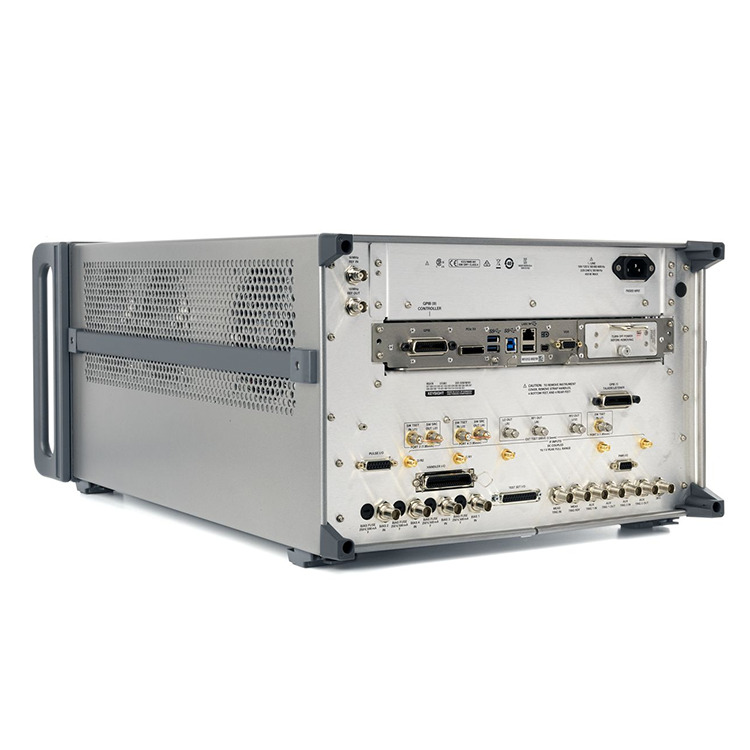

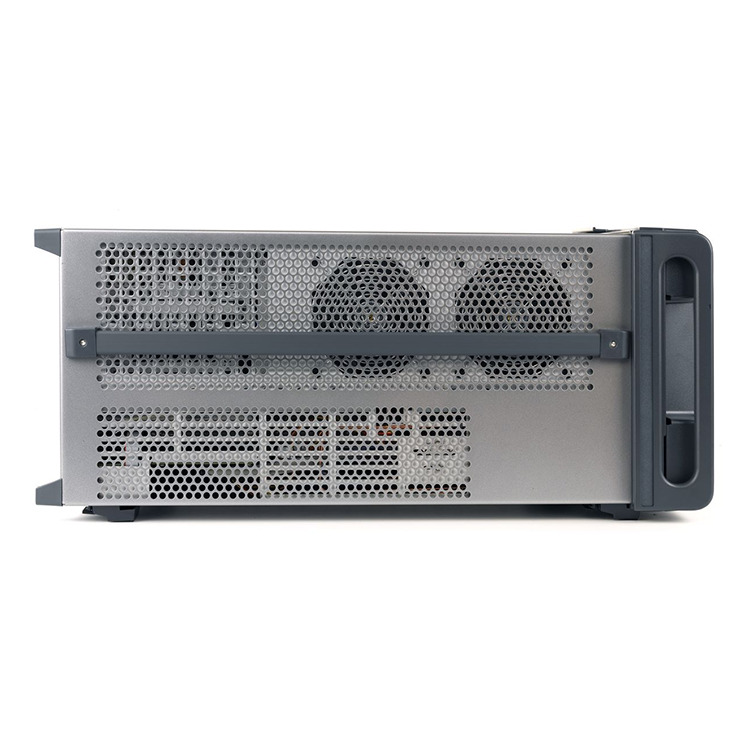

You are welcomed to come to our factory to buy the latest selling, low price, and high-quality N5227B PNA Network Analyzers. We look forward to cooperating with you. 10 MHz to 67 GHz, 2-ports with one source and 4-ports with two sources, source and receiver attenuators, bias-tees, pulse generators and modulators, noise figure, and best RF performance.
A Powerful Combination of Hardware and Software
The PNA Series of network analyzers offers industry-leading performance for testing amplifiers, mixers, and frequency converters. The PNA Series combines hardware and applications to measure a broad range of devices fast and accurately. All models are available in two-port single-source and four-port dual-source versions. Built-in pulse modulators and pulse generators provide pulsed S-parameter measurements.
Solve your toughest measurement challenges with the highest-performing microwave network analyzer in the industry.
Measure S-parameters with the smallest uncertainty and highest stability.
Efficiently characterize active components with applications that simplify setups.
Accelerate insight into component behavior using a multitouch display and intuitive user interface.
Meet your budget and measurement requirements by customizing to the right level of performance.
| Frequency Range | 900 Hz to 67 GHz |
| Trace Noise | 0.003 dB RMS |
| Built-In Ports | 2 or 4 |
| Best 201 Point Sweep Time | 5.5 to 6.3 ms |
| Maximum Frequency: | 67 GHz |
| Dynamic Range: | 118 dB @60 GHz |
| Output Power: | 13 dBm |
