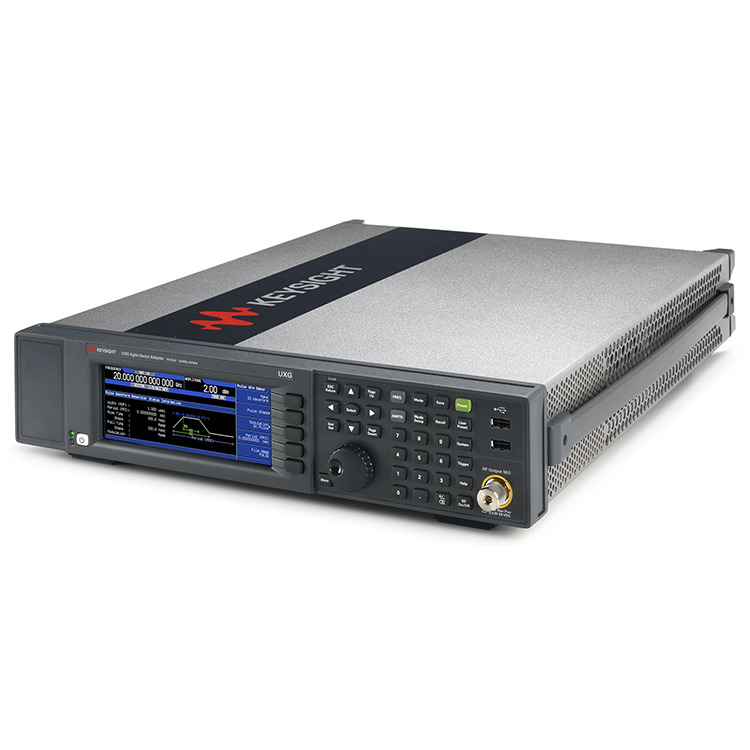

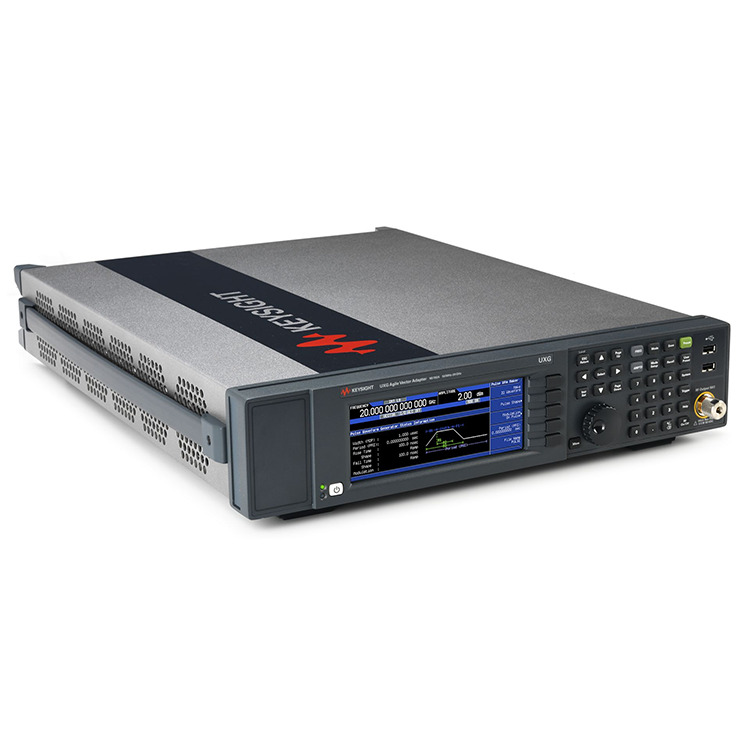

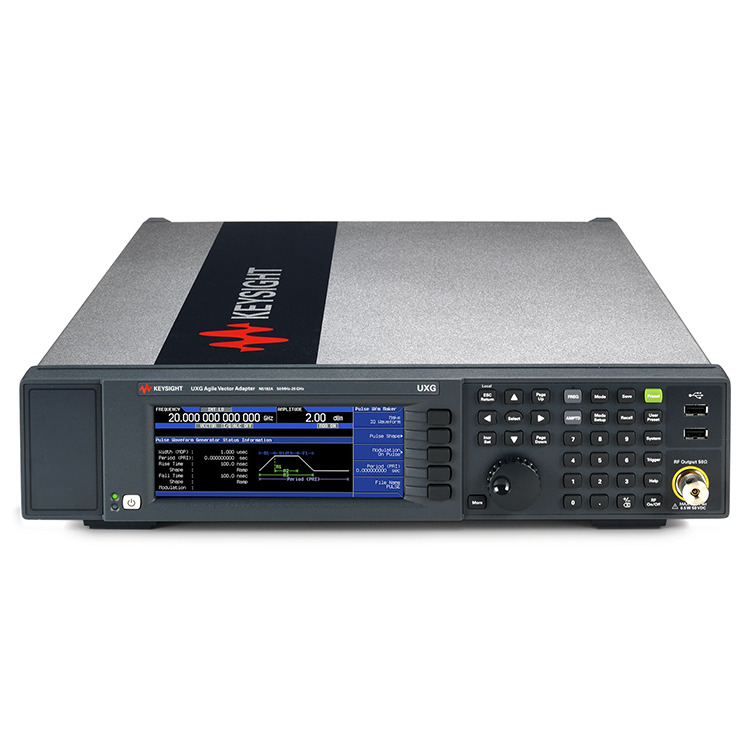

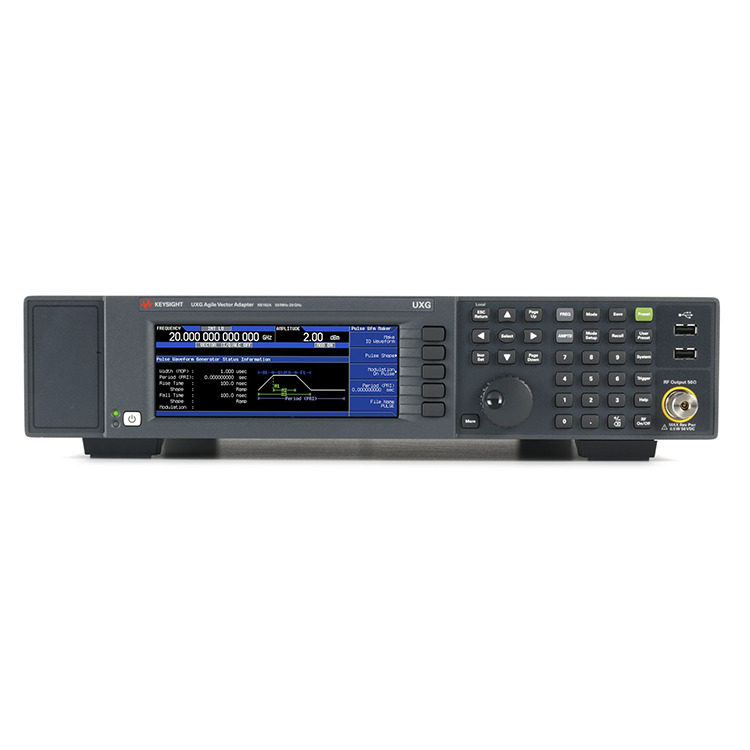

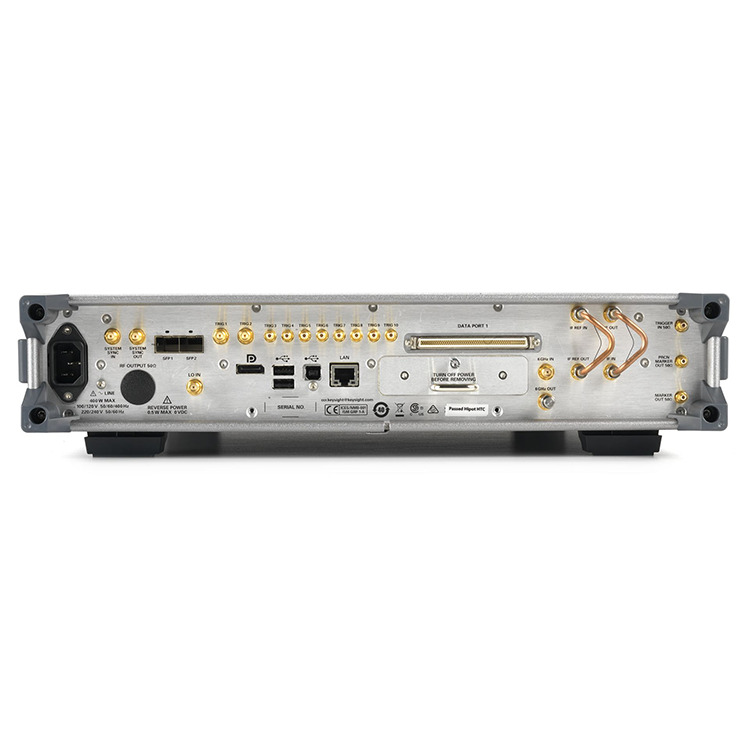

You can rest assured to buy N5192A X-Series Agile Signal Generators from our factory. The N5192A is part of the UXG family of signal generation products designed for threat simulation; simulate complex signal environments for radar/EW.
You can rest assured to buy N5192A X-Series Agile Signal Generators from our factory. Take your lab to the next level: simulate increasingly complex signal environments for radar and EW with enhanced realism and greater confidence
Rapidly adaptable to provide the multiple channels and port configurations you need
What's included:
120 dB agile amplitude range
Baseband generator with 250 MSa/rate (200 MHz BW) and 512 MSa memory
< 500 ns typical update rate
3.5 mm (f) to 3.5 mm (f) connector adapter
Country-specific power cord
Documentation set (CD-ROM)
One day of on-site startup assistance
| Frequency | 10 MHz – 44 GHz |
| Phase Noise @ 1 GHz (20 kHz offset) | -143 dBc/Hz |
| Frequency Switching | <= 170 ns |
| IQ Modulation BW (Internal/External) | Up to 1.6 GHz |
| Modulation Types Available | AM, FM, PM, Pulse, Arbitrary |
