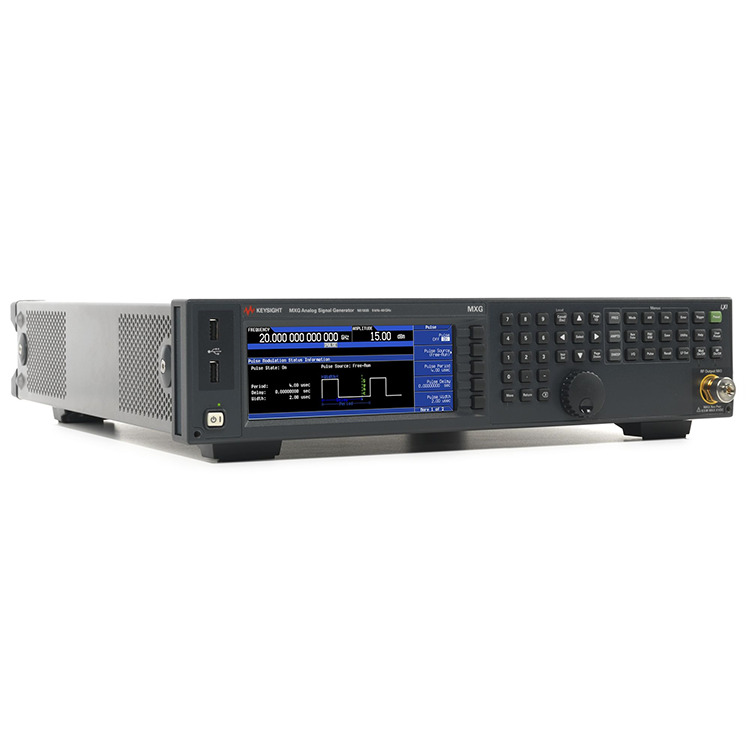

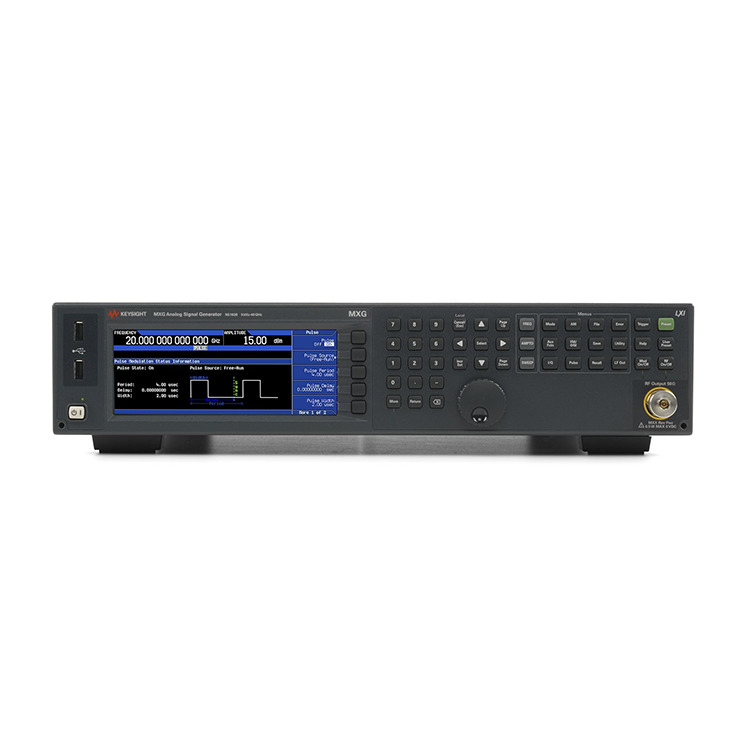

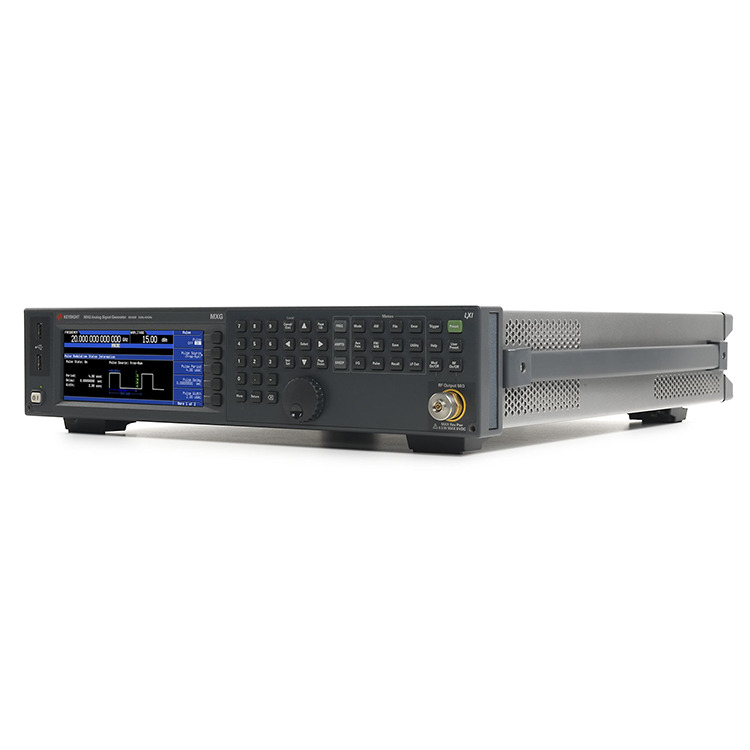

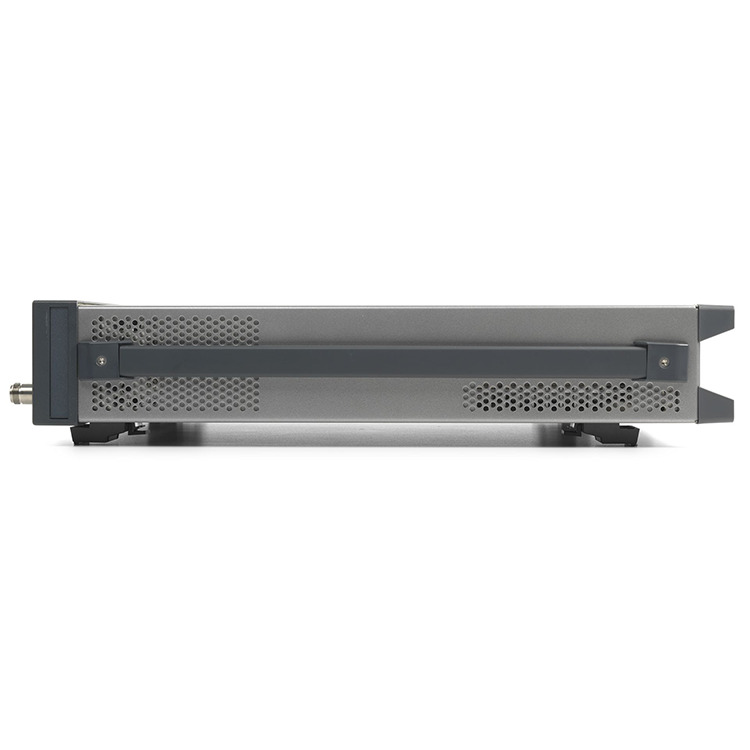

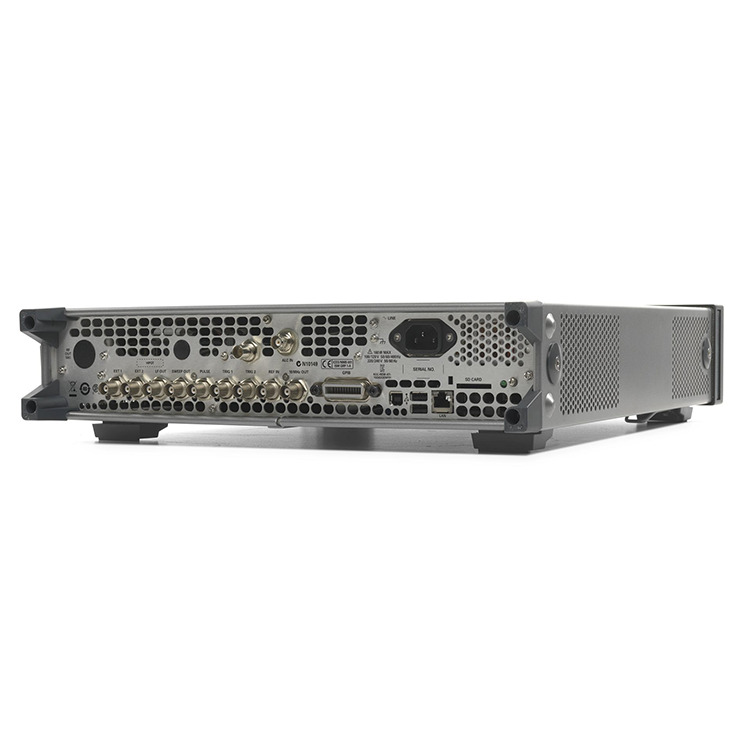

You can rest assured to buy customized N5183B MXG Signal Generators from us. N5183B MXG X-Series microwave analog signal generator offers 9 kHz to 40 GHz frequency coverage and near PSG levels of phase noise performance.
You can rest assured to buy customized N5183B MXG Signal Generators from us. Maximize speed and rack space with the pure and precise MXG.
Get a fast, compact (2U) alternative to the PSG in the lab, depot or field
Address demanding tests of radar modules & systems with near-PSG levels of spectral purity
Compensate for system loss & drive high-power amplifiers: +19 dBm output power, -55 dBc harmonics & -68 dBc spurious @ 20 GHz
Reduce calibration time with switching speed 600 µs
Simulate narrowband chirps & radar antenna scans with up to five internal function generators that can be used with AM, FM, OM pulse modulation
| Frequency | 9 kHz – 40 GHz |
| Phase Noise @ 1 GHz (20 kHz offset) | -146 dBc/Hz |
| Frequency Switching | <= 600 us |
| IQ Modulation BW (Internal/External) | Up to 960 MHz |
| Modulation Types Available | AM, FM, PM, Pulse |
