You can rest assured to buy E8257D PSG Signal Generators from our factory. E8257D, Industry-leading output power, level accuracy, and phase noise, with frequency coverage from 100 kHz to 67 GHz (extendable to 500 GHz) for testing advanced RF and microwave radar

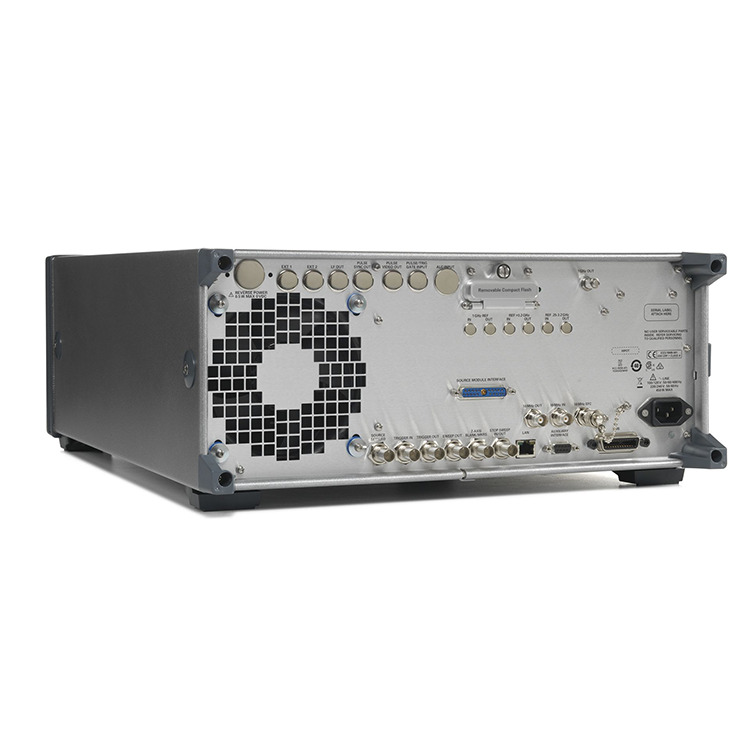

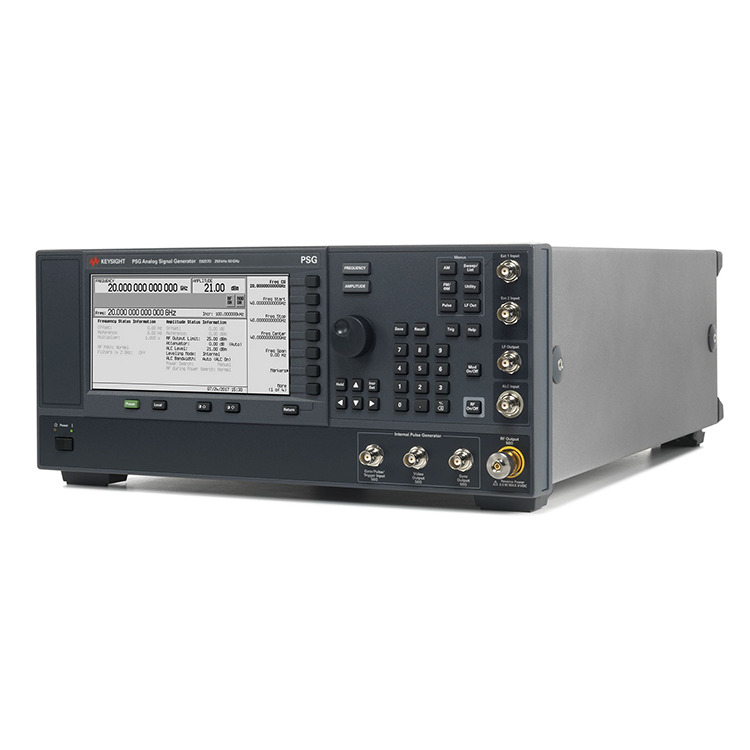

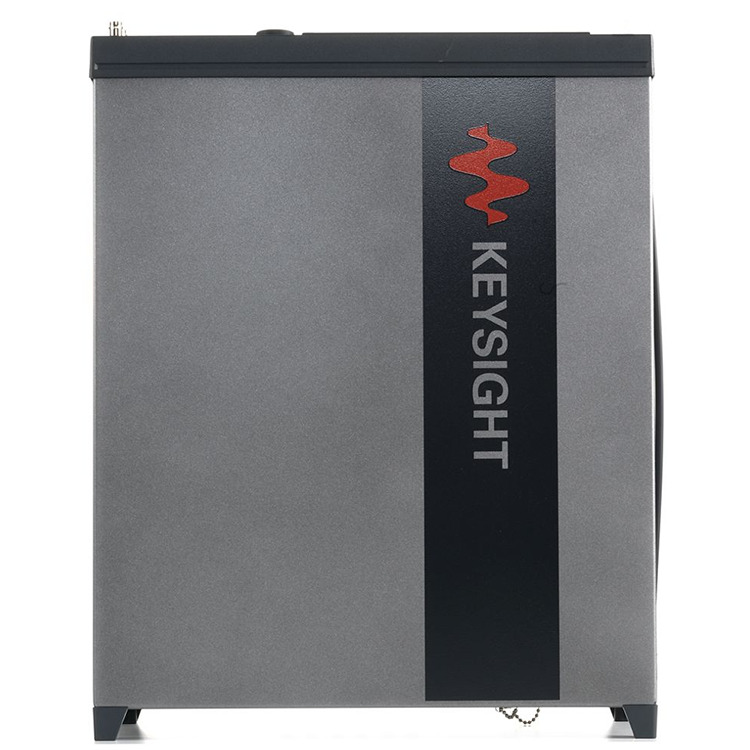

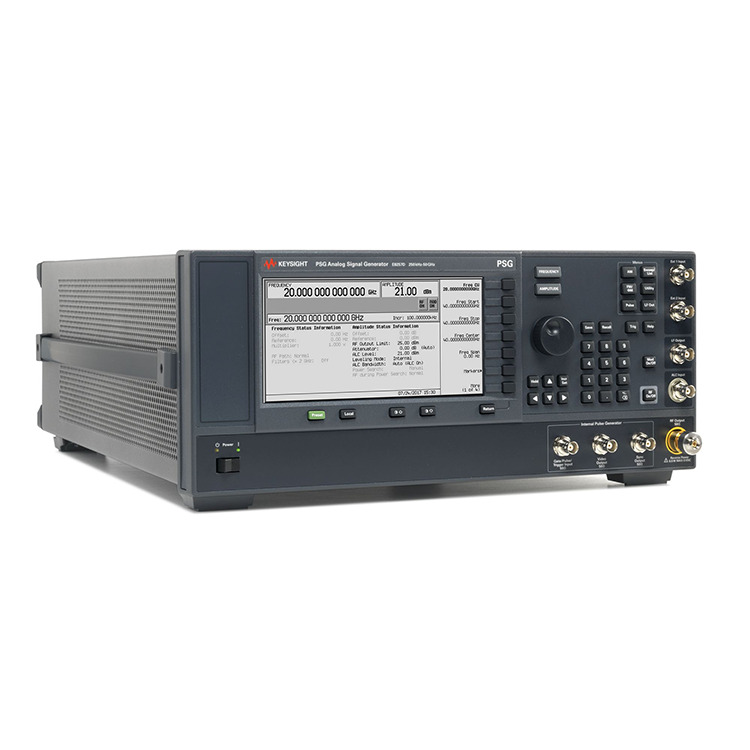

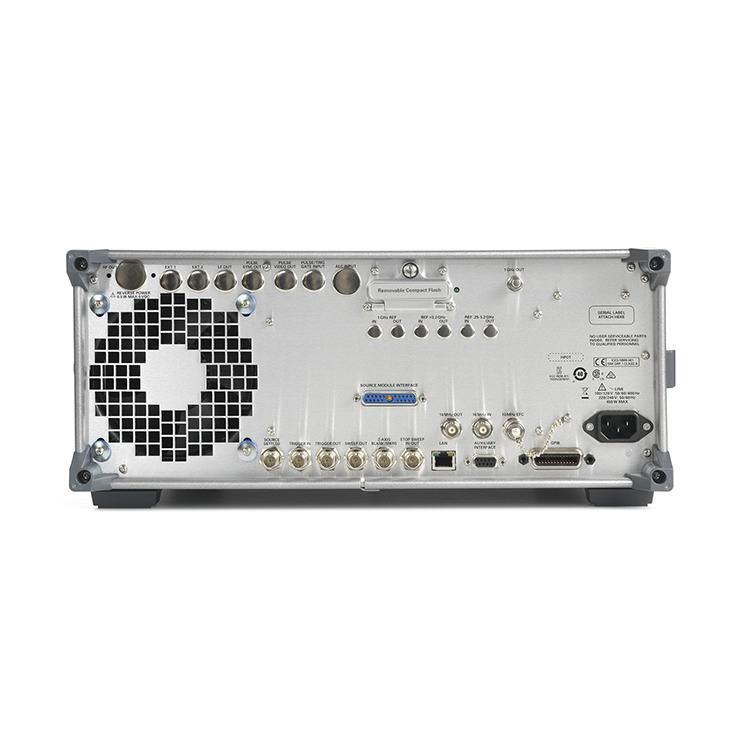

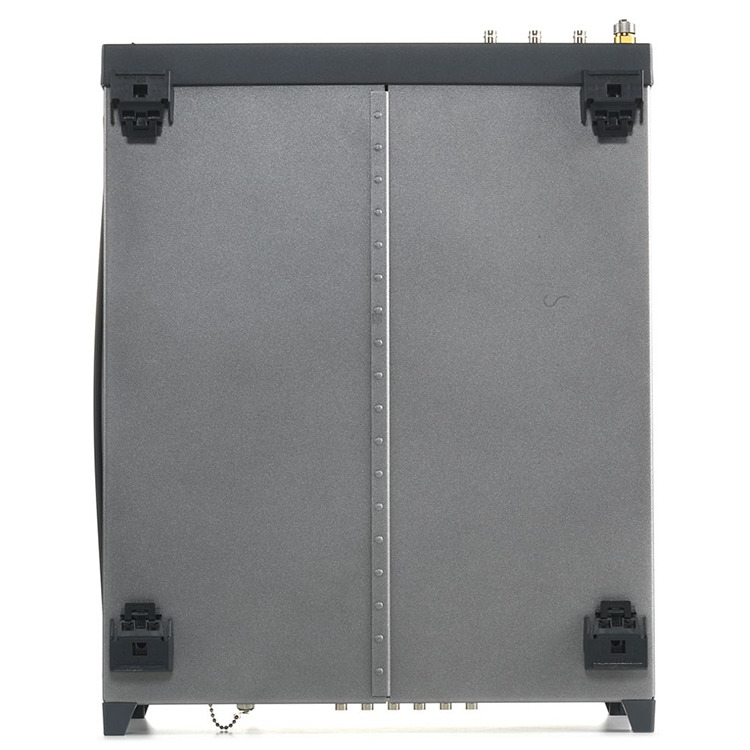

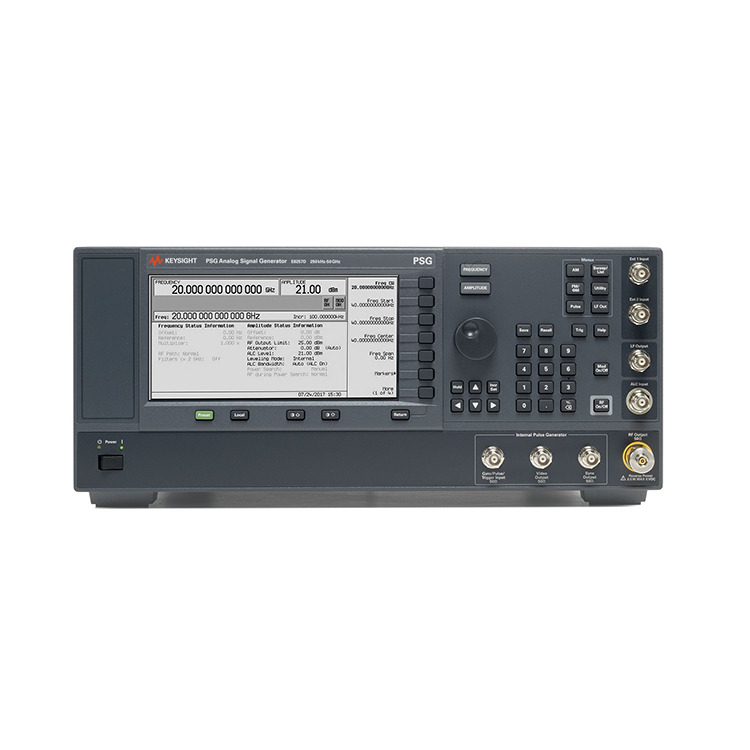

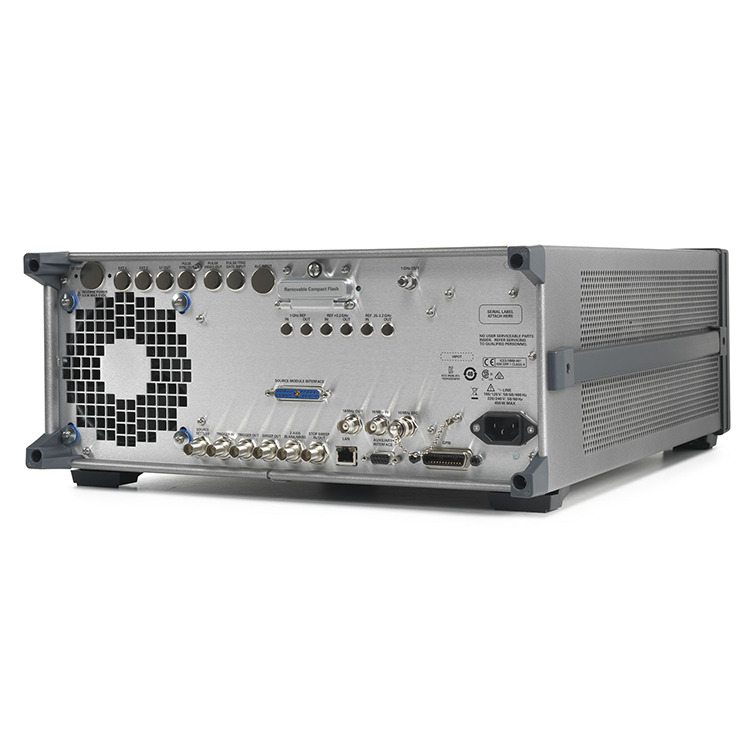

E8257D PSG Analog Signal Generator
You can rest assured to buy E8257D PSG Signal Generators from our factory. The Keysight E8257D is a fully-synthesized signal generator with high output power, low phase noise, and modulation capability. Specifications apply over a 0 to 55 °C range, unless otherwise stated, and apply after a 45 minute warm-up time. Supplemental characteristics, denoted as typical, nominal, or measured, provide additional (non-warranted) information at 25 °C, which may be useful in the application of the product.
Take on your toughest test requirements with metrology-grade frequency and level accuracy, excellent distortion, and spurious characteristics
Measure across a wide frequency range: 13, 20, 31.8, 40, 50, and 67 GHz models available (1.1 THz with frequency extender)
Test high-power devices and overcome test system losses with options capable of generating up to 1 W (+30 dBm) of output power
Get extremely low phase noise: –91 dBc/Hz at 100 Hz offset and –126 dBc/Hz at 10 kHz offset (10 GHz), to address Doppler radar, ADC and receiver-blocking tests
Characterize devices and circuits by adding AM, FM, PM and pulse modulation to your signal
| Frequency | 100 kHz – 70 GHz |
| Phase Noise @ 1 GHz (20 kHz offset) | -143 dBc/Hz |
| Frequency Switching | < 7 ms |
| IQ Modulation BW (Internal/External) | Up to 4 GHz |
| Modulation Types Available | AM, FM, PM, Pulse |
