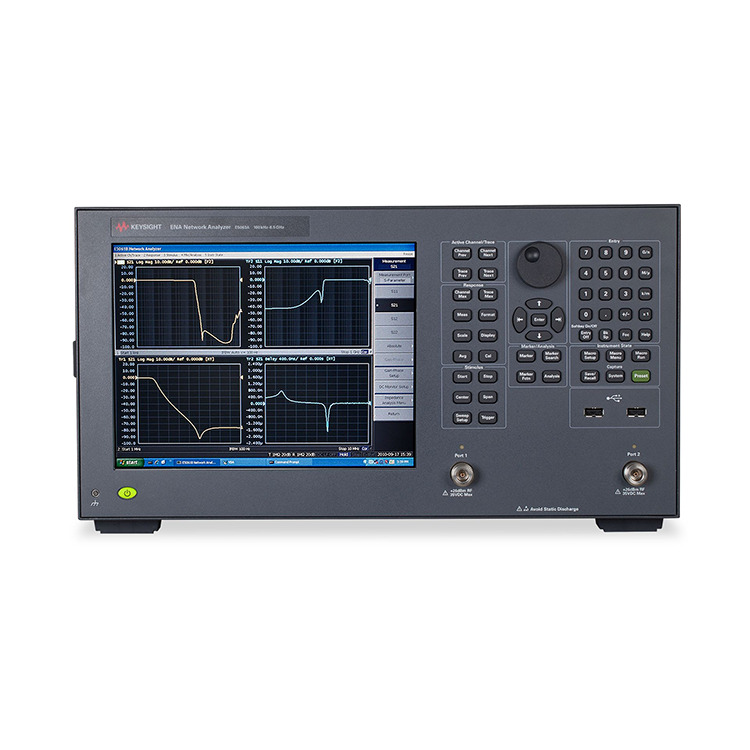

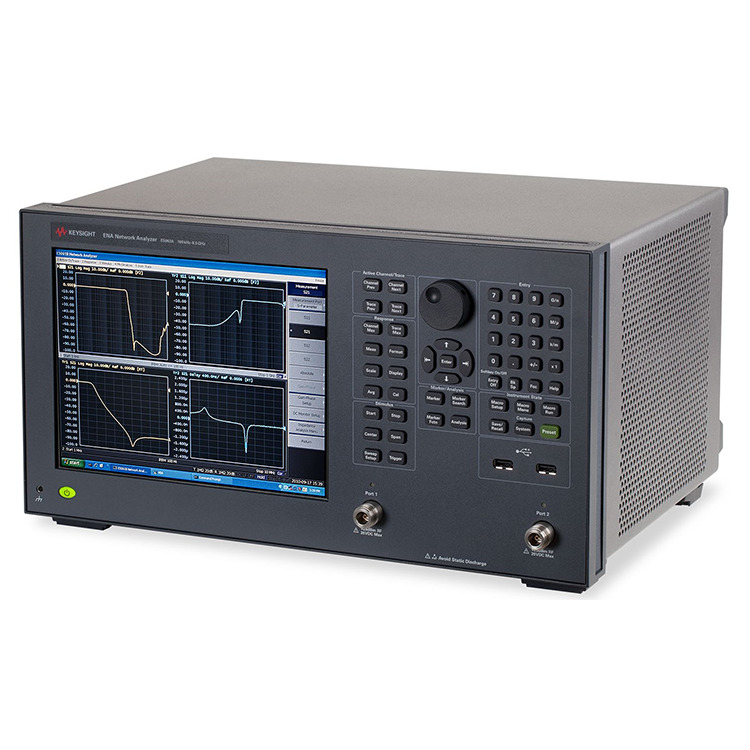

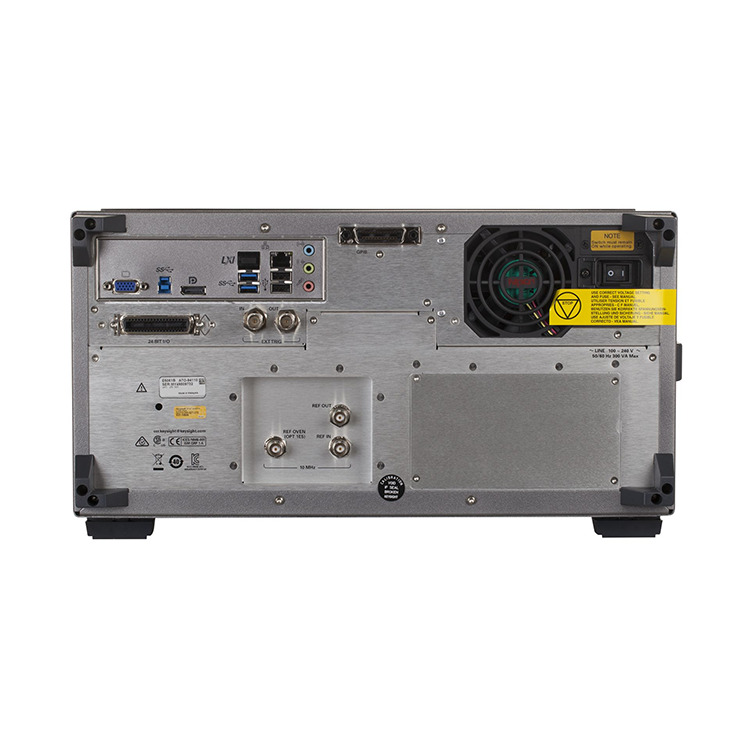

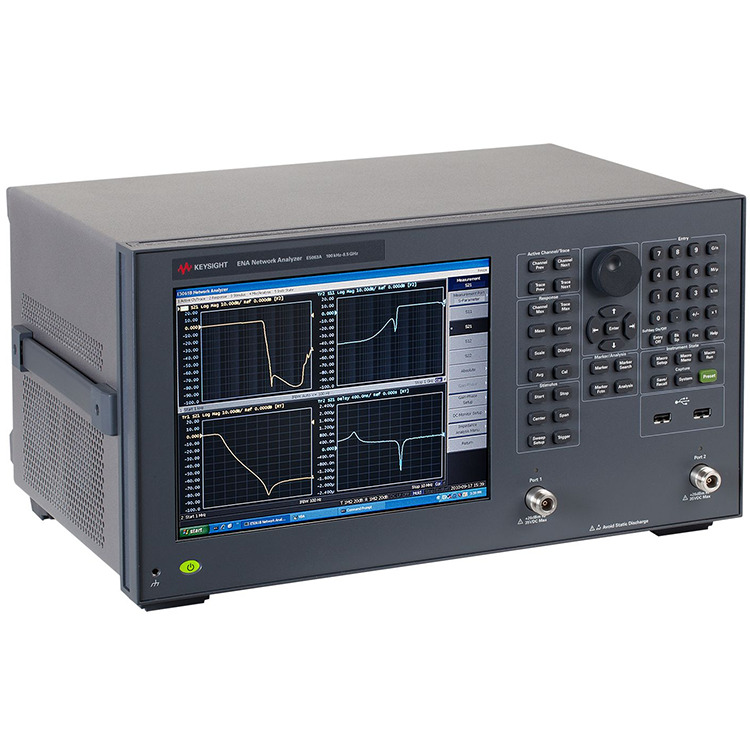

As the professional manufacturer, we would like to provide you E5063A ENA Vector Network Analyzers. The E5063A ENA vector network analyzer, 100 kHz to 18 GHz, 2-port, is a low cost network analyzer for passive device test, with PCB test option.
Drive Down the Cost of Test for Passive RF Components
The Keysight E5063A ENA is an affordable benchtop vector network analyzer for testing simple passive components such as antennas, filters, cables, or connectors up to 18 GHz. It leverages the consistent measurement framework of the industry standard ENA Series to boost efficiency and productivity. It is ready to evolve as technologies change.
Measure a wide range of components with a versatile 2-port, 50-ohm S-parameter test set
Enhance your measurements with Option 010 for time domain analysis capability
Simplify PCB design and test with a dedicated graphical user interface with Option 011
Boost efficiency and productivity with a consistent measurement framework
Upgrade options at any time
| Applications: |
S-Parameters Return Loss Time Domain Insertion Loss/Gain |
| Best Speed at 201 Point, 1 Sweep: | 9 ms |
| Components: |
Antennas Printed Circuit Boards (PCB) Filters |
| Dynamic Range: | 117 dB |
| Form Factor: | Benchtop |
| Instrument Type: | Benchtop |
| Maximum Frequency: | 18 GHz |
| Number of Built-In Ports: | 2 ports |
| Number of Internal Sources: | n/a |
| Output Power: | 0 dBm |
| Type: | Benchtop |
| Trace Noise: | 0.015 dB rms |
| VNA Series: | ENA |
| VNA Type: | Benchtop |
