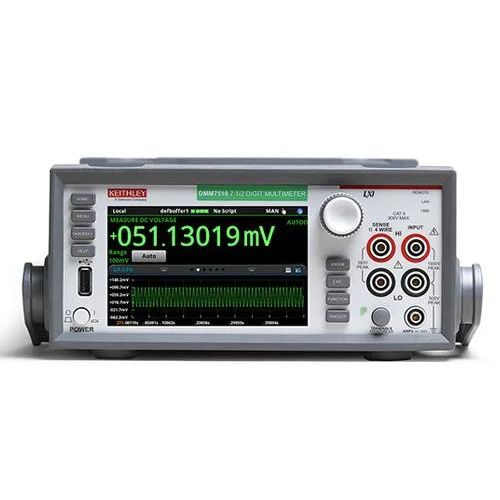

DMM7510 Digital Multimeters

Wide dynamic range for drain current consumption profiling of IoT products

You can rest assured to buy customized DMM7510 Digital Multimeters from us. The DMM7510's digitizer can measure the current drain in all the IoT device's operating states. Capture µA sleep mode currents and transmit currents up to 1A with the combination of sensitive and fast current measurements from the high resolution, high speed digitizer.

Highlights

Sample current drain wave shapes at rates up to 1Msample/s

Sample over 5 decades with the digitizer's 18-bit resolution

Outstanding accuracy with low noise for high confidence

With a low noise input stage and a 32-bit A-D converter, the DMM7510 embodies Keithley's low level measurements expertise to deliver DC accuracies typically only found in metrology-grade instrumentation.

Highlights

14 ppm 1-year DC volt accuracy

60 ppm 1-year DC current acccuracy

24 ppm 1-year resistance accuracy

Internal auto-calibration

Measure low signals with high sensitivity

High sensitivity enables the DMM7510 to measure very low levels of voltage, current, and resistance, and detect small changes and signal drift.

Highlights

DC voltage sensitivity: 10 nV

Current sensitivity: 1 pA

Resistance sensitivity: 0.1 µΩ

Capture and store more than 27 million readings

Capture a complex waveform profile, study long-term stability, or record environmental and life testing data easily. The DMM7510's large internal memory buffer enables extensive reading storage of your device's complete profile.

Highlights

Standard mode storage: 11 million readings

Compact mode storage: 27.5 Million readings

All readings timestamped

Observe, interact with, and explore your measurements

Visualize and study every waveform using the graphical touchscreen display. And for even more in-depth analysis, pinch and zoom to easily expand and magnify your view.
